ECU-Drill-Steel

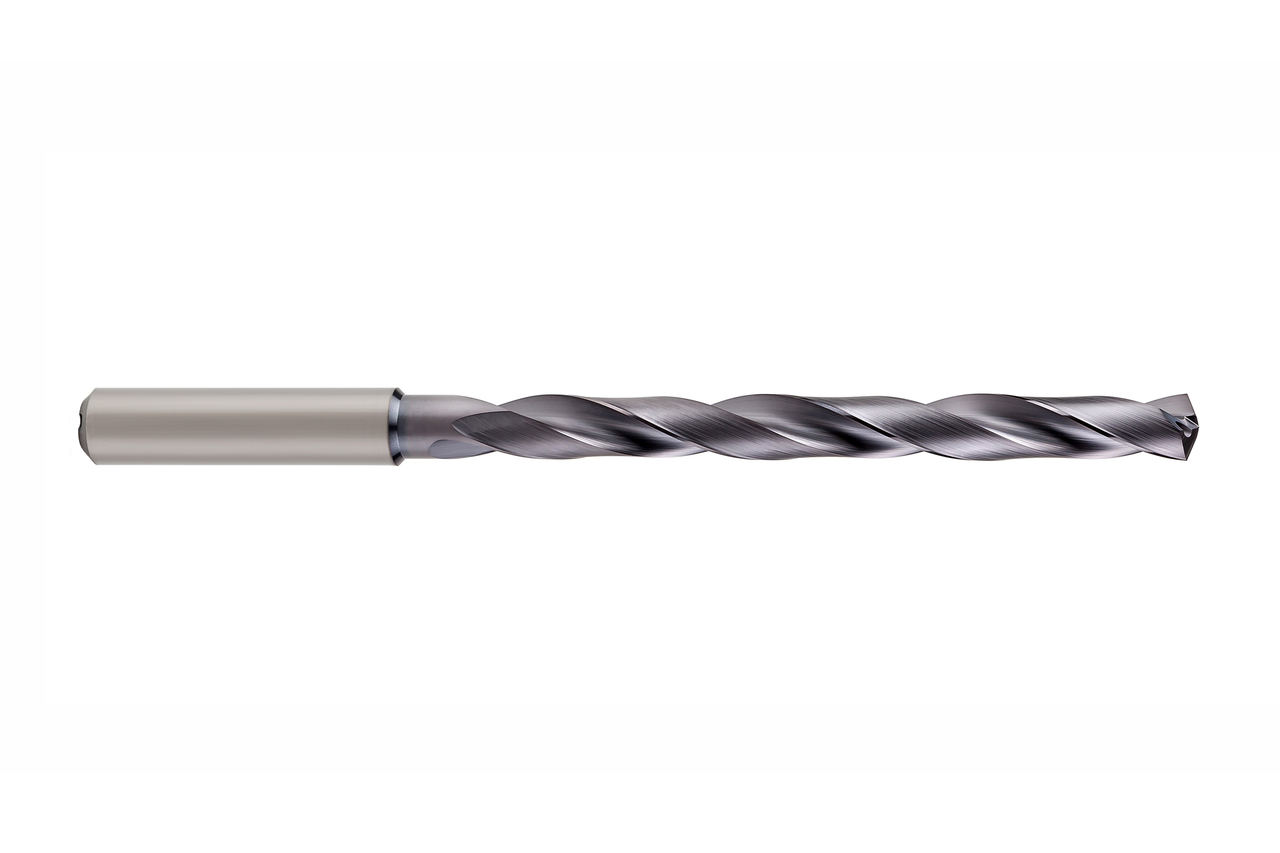

  • Product image ECU-Drill-Steel

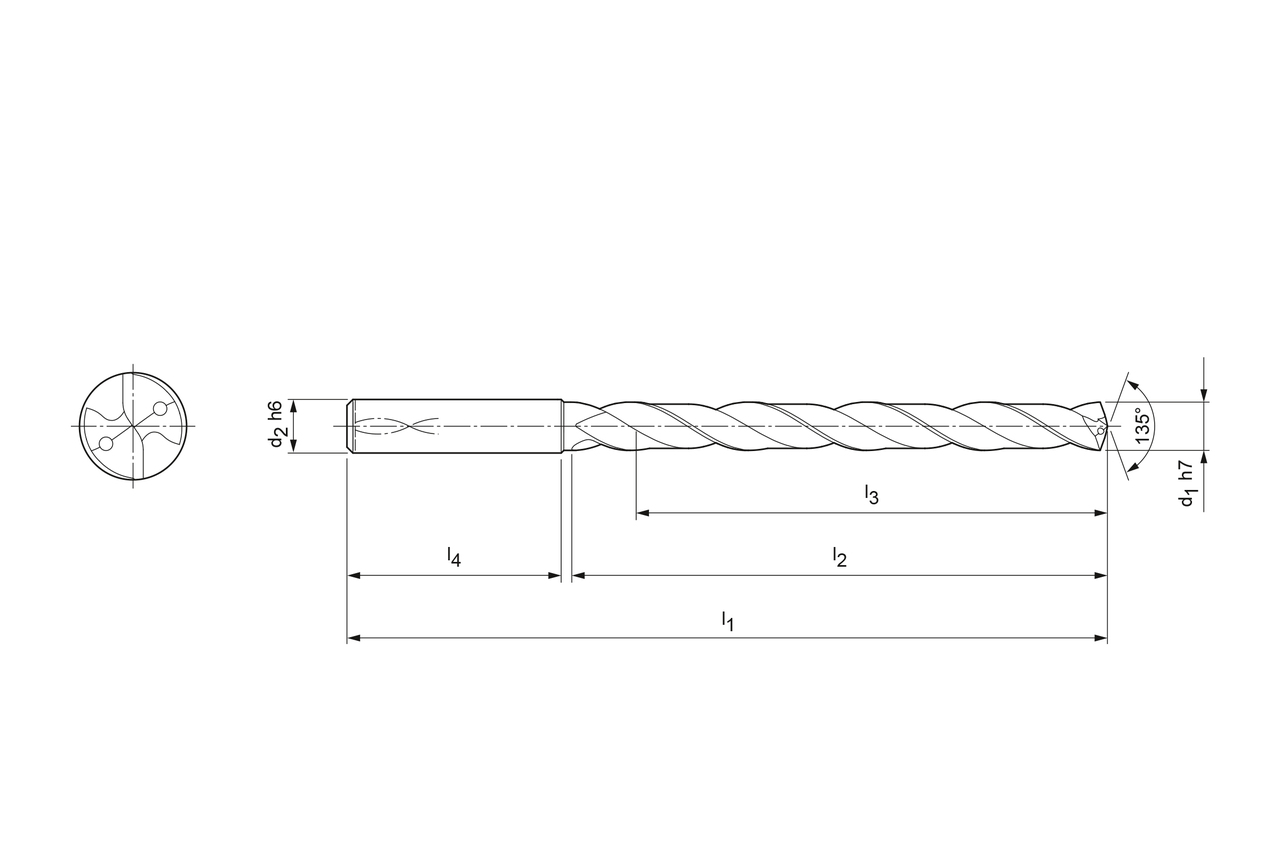

  • Technical drawing ECU-Drill-Steel

Durchmesser d1 (mm)

16.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30677820

Menge

Ihrem Warenkorb hinzugefügt

Unsere Produktempfehlung:

Produktbeschreibung

The double-edged solid carbide drill ECU-Drill-Steel offers a very good price-performance ratio and is the first choice for small to medium quantities.

Materialeignung

Technische Daten

Schneidstoff
HP132
Product class
Basic-Line
Drilling depth
8xD
d1
16   mm
d2
16   mm
l1
203   mm
l2
152   mm
l3
128   mm
l4
48   mm
Cooling
internal cooling
Number of cutting edges (z)
2
Shank tolerance
h6
Bore tolerance
≥ IT 9
Shank type
HA
Tip angle
135   °
Side rake angle
30   °
Material group
RB

Downloads

Technical drawing in tif
30677820_607768482-000-00-ED1-MM.tif
Technical drawing in dxf
30677820_607768482-000-01-ED1-MM.DXF
Technical drawing in pdf
30677820_607768482-000-01-ED1-MM.PDF
Technical drawing in tif
30677820_607768482-000-01-ED1-MM.TIF
3D envelope in stp
30677820_607768485-000-01-E43.STP
Cutting data recommendations
30677820_ECU-Drill-Steel_EN.pdf
