MEGA-Drill-Alu
Diameter d1 (mm)
10.0
Your unit price
*Login requiredWe recommend:
Product description

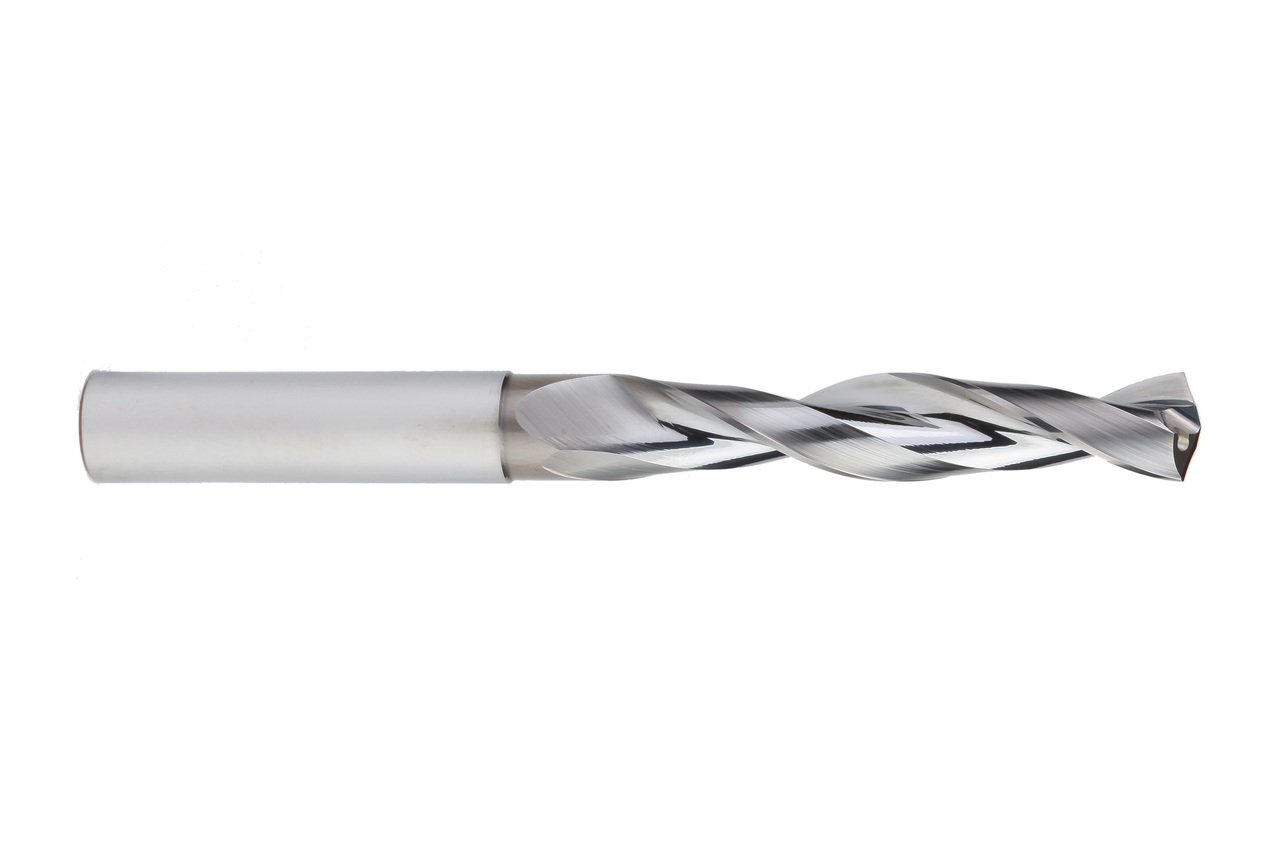

The spiral fluted high-performance drill MEGA-Drill-Alu with its large chip chambers, special grinding and highly polished flutes meets the highest demands on drilling quality.
Technical specifications
- Product class
- Performance-Line
- Drilling depth
- 5xD

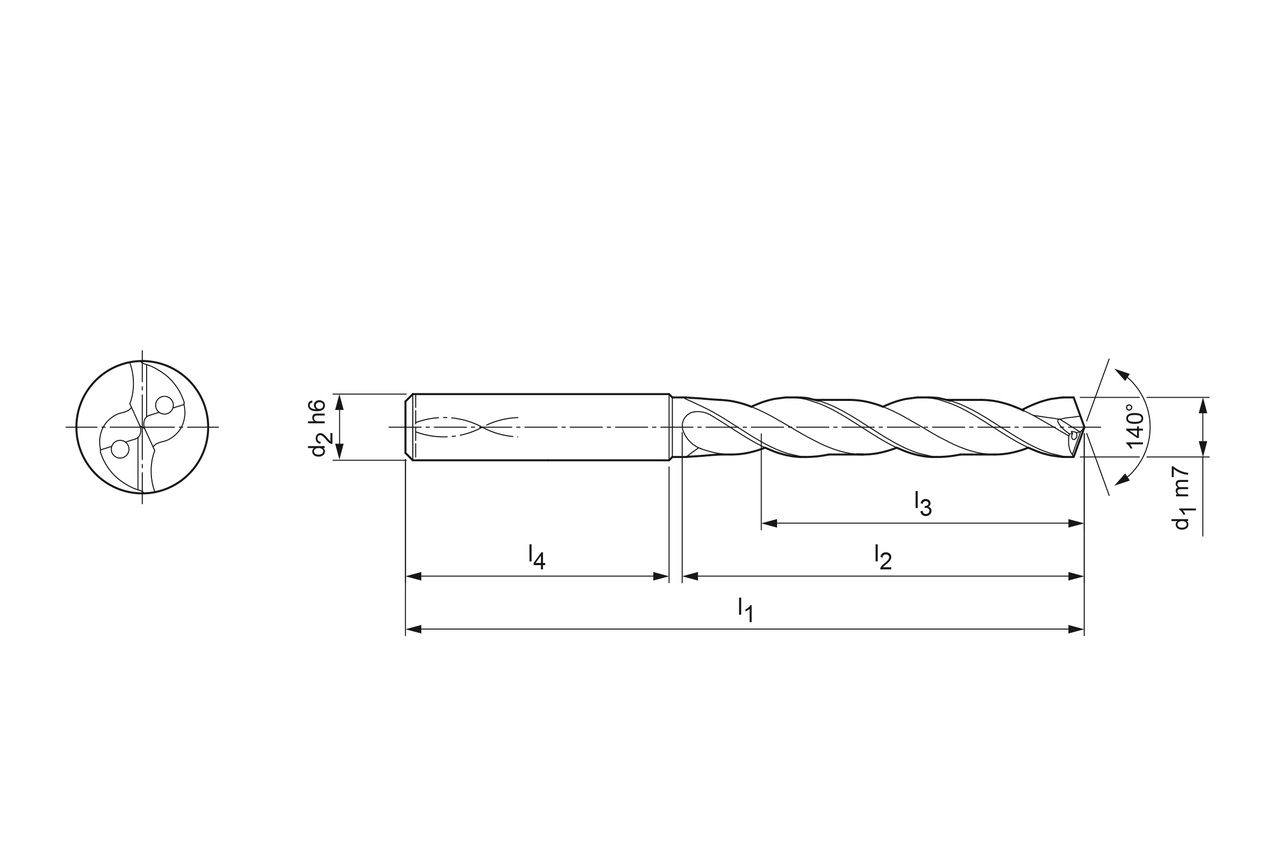

- d1
- 10 mm
- d2
- 10 mm
- l1
- 103 mm
- l2
- 61 mm
- l3
- 49 mm
- l4
- 40 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 140 °
- Side rake angle
- 30 °
- Material group
- ME
Downloads
- Technical drawing in dxf
- 30391396_606763769-000-01-ED1-MM.DXF
- Technical drawing in pdf
- 30391396_606763769-000-01-ED1-MM.PDF
- Technical drawing in tif
- 30391396_606763769-000-01-ED1-MM.TIF
- 3D envelope in stp
- 30391396_607840397-000-00-E43.STP
- Cutting data recommendations
- 30391396_MEGA-Drill-Alu_EN.pdf
