UNIQ Mill Chuck, HA

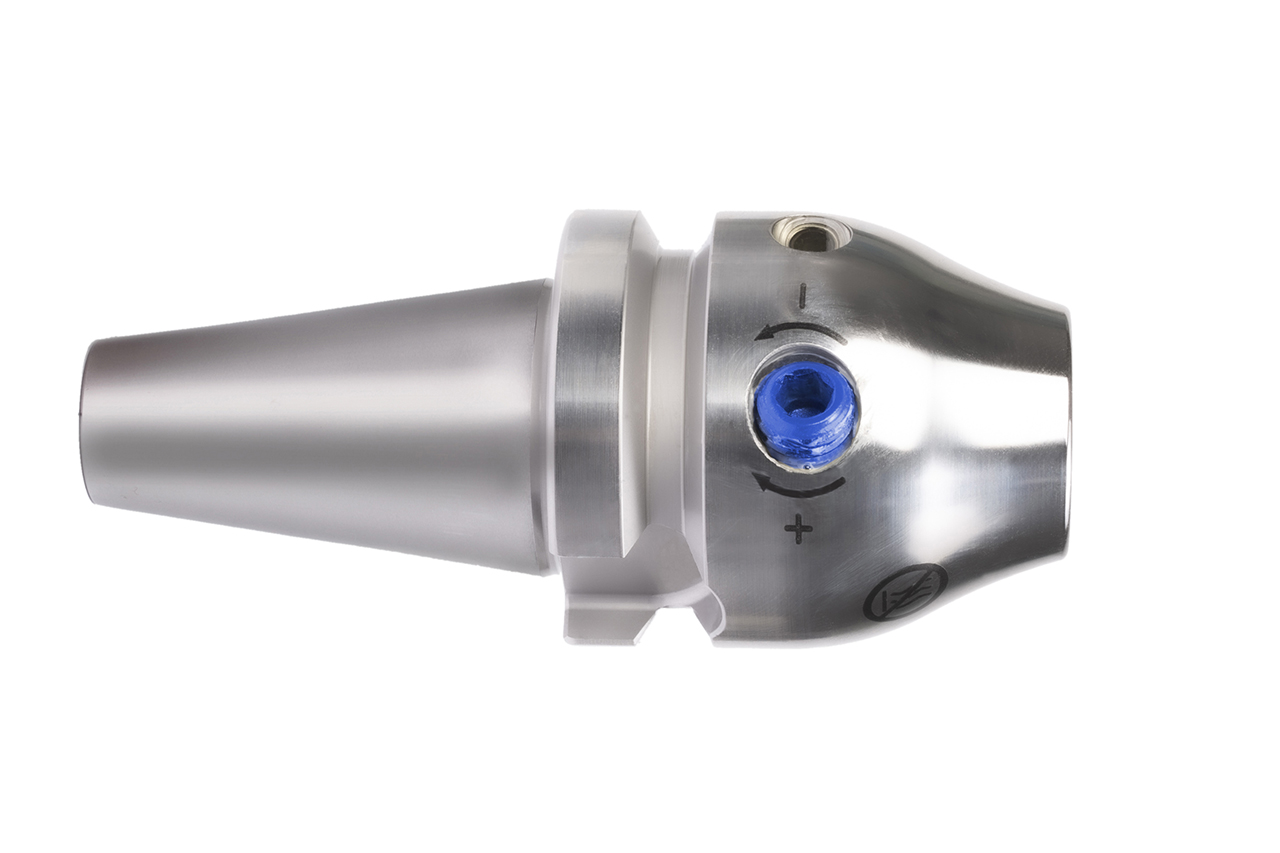

  • Product image UNIQ Mill Chuck, HA

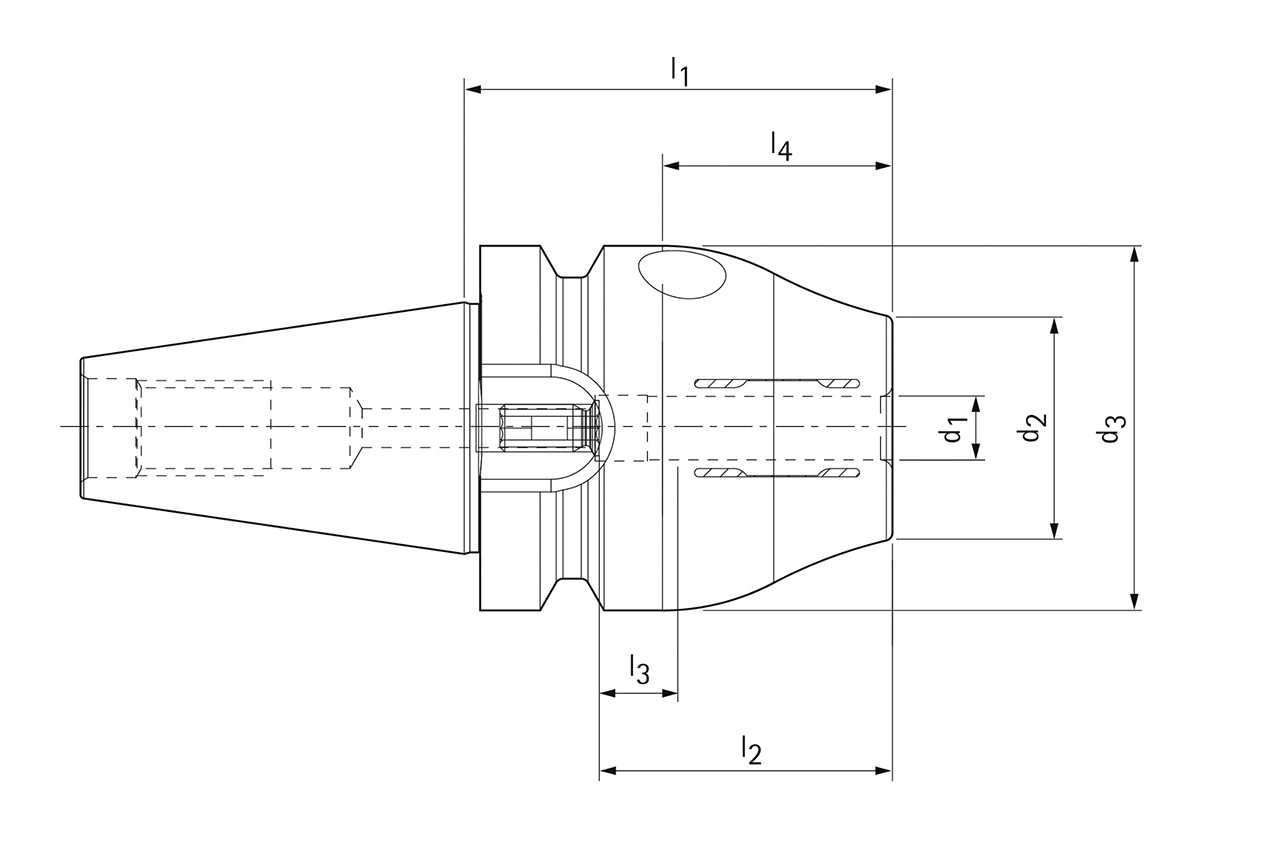

  • Technical drawing UNIQ Mill Chuck, HA

Diameter d1 (mm)

14.0

Your unit price

*Login required

Article

31374678

Quantity

Added to Your Shopping Cart

Product description

The UNIQ® Mill Chuck is specially designed for clamping milling tools with HA shank. Due to the high temperature resistance of 80 C° even with very long milling cycles, it convinces in highly dynamic milling applications, such as SPM (Structural Part Machining), HSC (High Speed Cutting) or HPC (High Performance Cutting), of high-quality components with excellent process reliability and high metal removal volume.  It is universally designed for roughing, semi and finishing operations.

Technical specifications

Machine connection
BT (Form JD)
Size machine connection
30
Technology
HydroChuck
d1
14   mm
d2
38   mm
d3
52   mm
d4
46   mm
l1
54   mm
l2
46   mm
l3
10   mm
l4
21   mm
Coolant supply
internal
Coolant outlet
axial concentric
Length adjustment
axial
Material group
CY

Downloads

Technical drawing in tif
31374678_607740635-000-00-ED1.TIF
Technical drawing in dxf
31374678_607740635-000-00-ED1.DXF
3D envelope in stp
31374678_607740636-000-00-E43.STP
Brochure
31374678_UNIQ_EN.pdf
