UNIQ Mill Chuck, HA

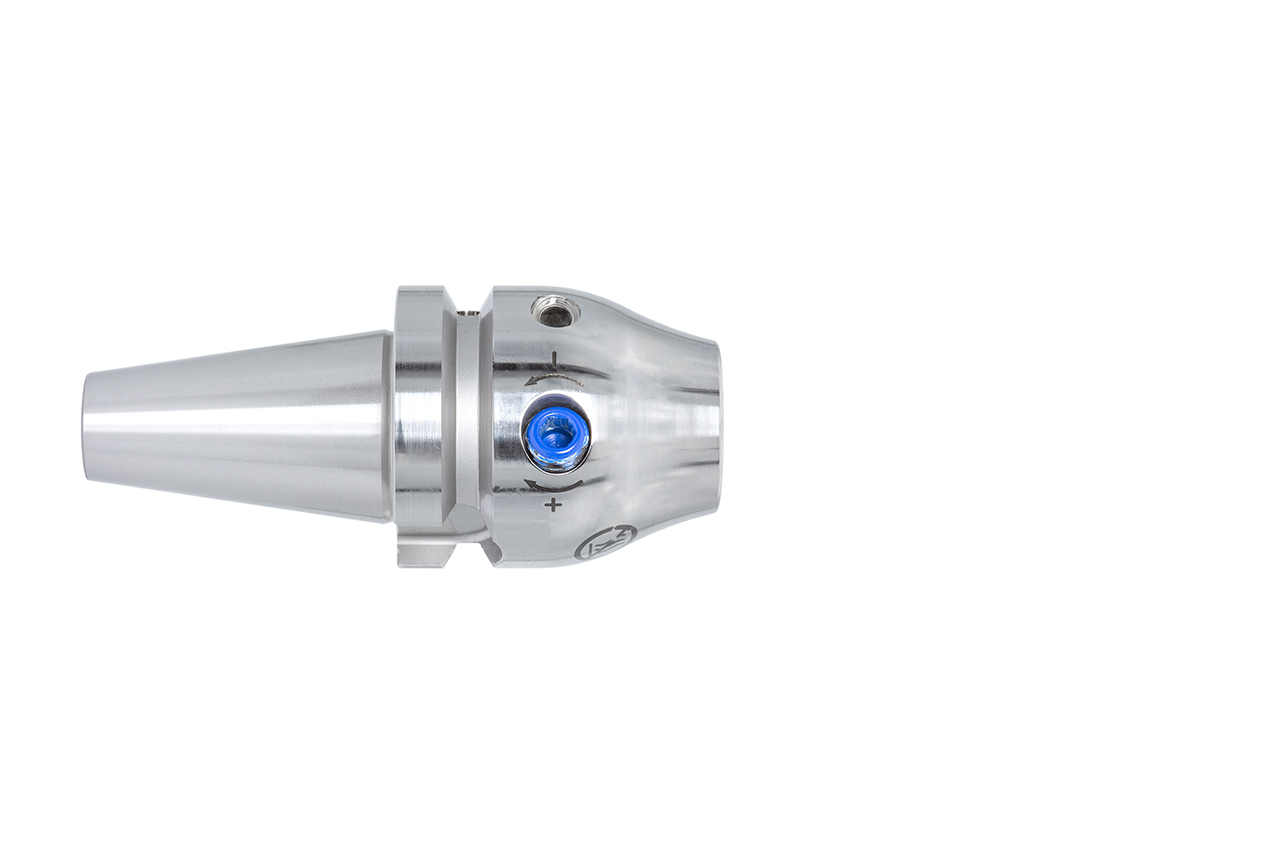

  • Product image UNIQ Mill Chuck, HA

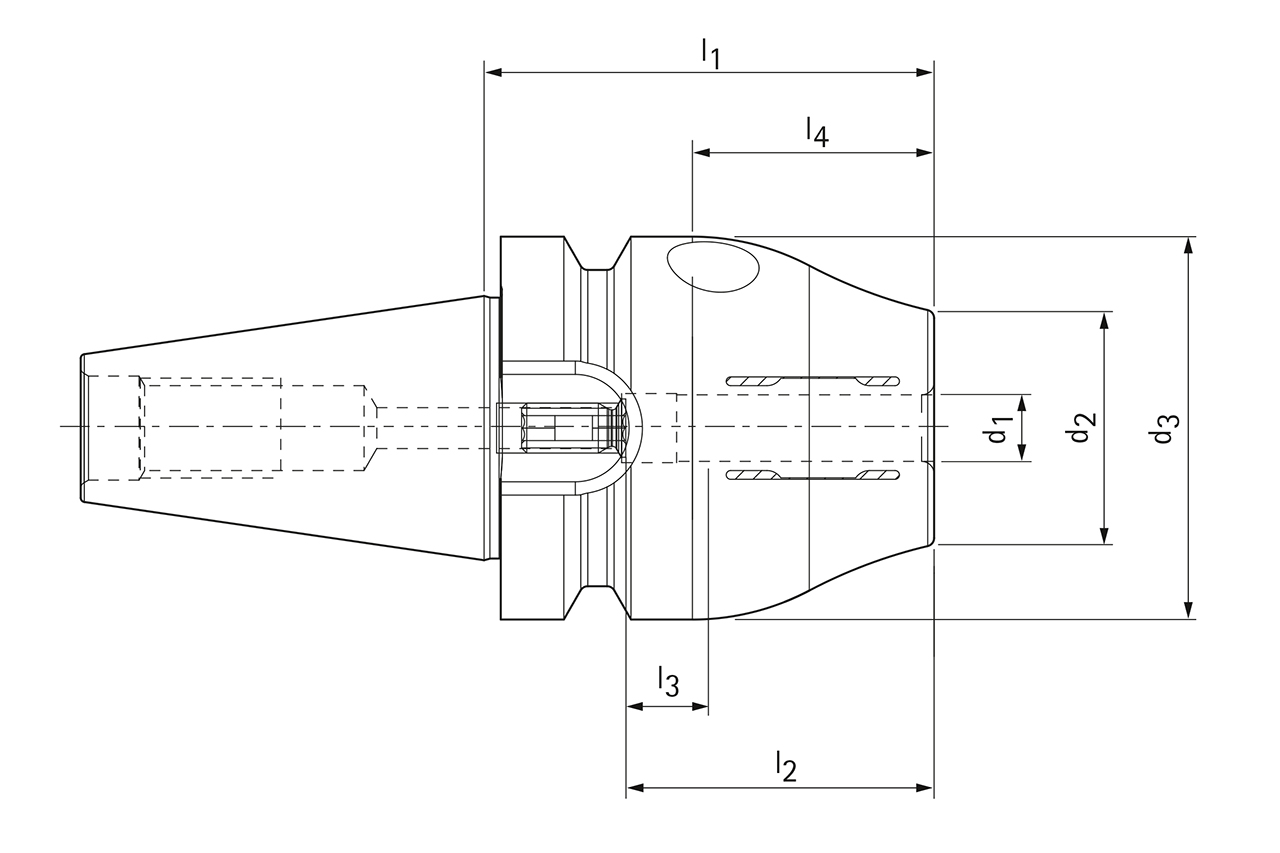

  • Produktzeichnung UNIQ Mill Chuck, HA

Durchmesser d1 (mm)

10.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31345238

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The UNIQ® Mill Chuck is specially designed for clamping milling tools with HA shank. Due to the high temperature resistance of 80 C° even with very long milling cycles, it convinces in highly dynamic milling applications, such as SPM (Structural Part Machining), HSC (High Speed Cutting) or HPC (High Performance Cutting), of high-quality components with excellent process reliability and high metal removal volume.  It is universally designed for roughing, semi and finishing operations.

Technische Daten

Maschinenschnittstelle
BT (Form JD/JF)
d1 max
10   mm
d1 min
10   mm
Größe Maschinenschnittstelle
40
Technologie
HydroChuck

d1

10   mm
d2
30   mm
d3
42   mm

l1

58   mm
l2
41   mm
l3
10   mm
l4
27.2   mm
Kühlmittelzufuhr
intern und seitlich kombiniert
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
axiale Längeneinstellung
Materialgruppe
CY
Spezifikation
MHC-BT040-10-058-3-0-A

Downloads

3D Hüllkontur in stp
31345238_607663543-000-01-E43.STP
Technische Zeichnung in tif
31345238_607663542-000-00-ED1.TIF
Technische Zeichnung in dxf
31345238_607663542-000-00-ED1.DXF
Technische Zeichnung in pdf
31345238_607663542-000-00-ED1.PDF
Brochure
31345238_MAPAL-UNIQ-2025__EN.pdf
