UNIQ Mill Chuck, HA

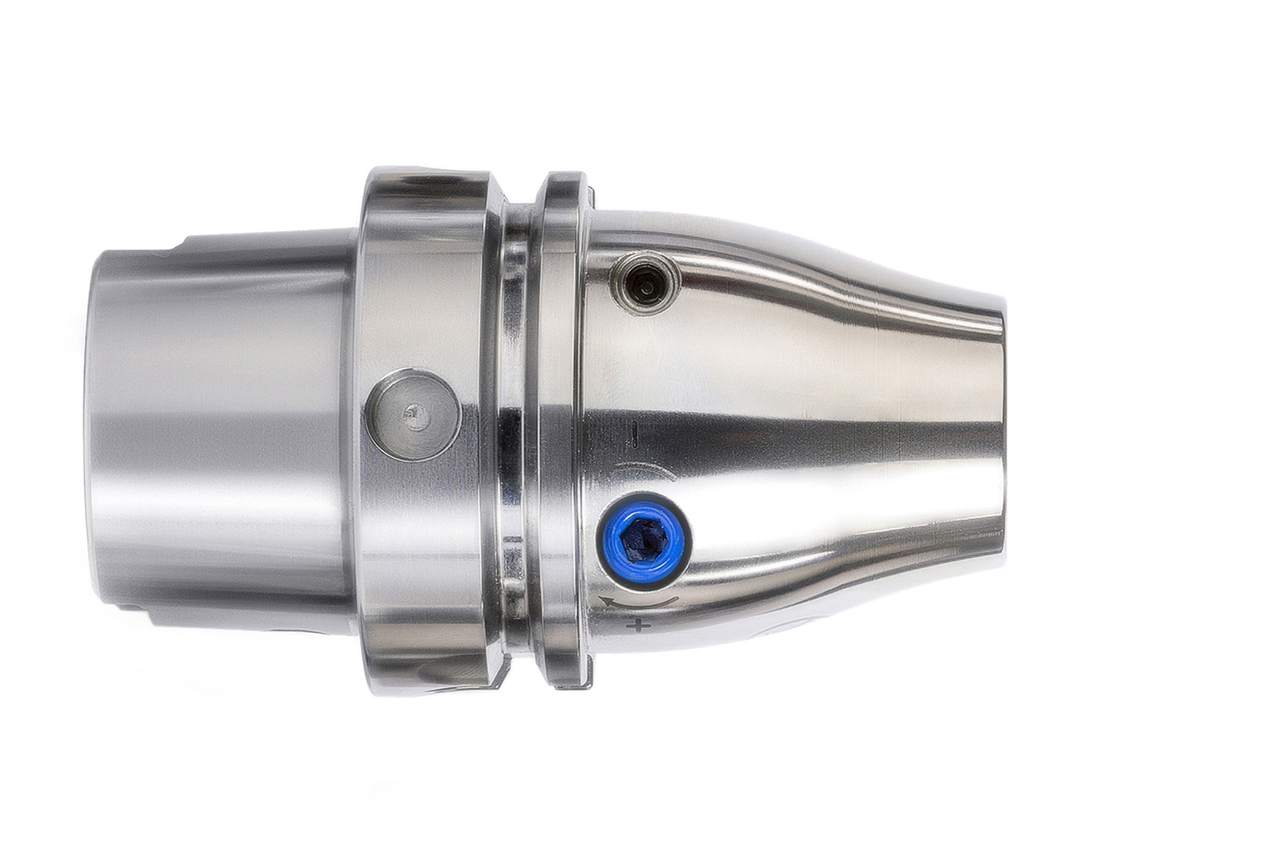

  • Product image UNIQ Mill Chuck, HA

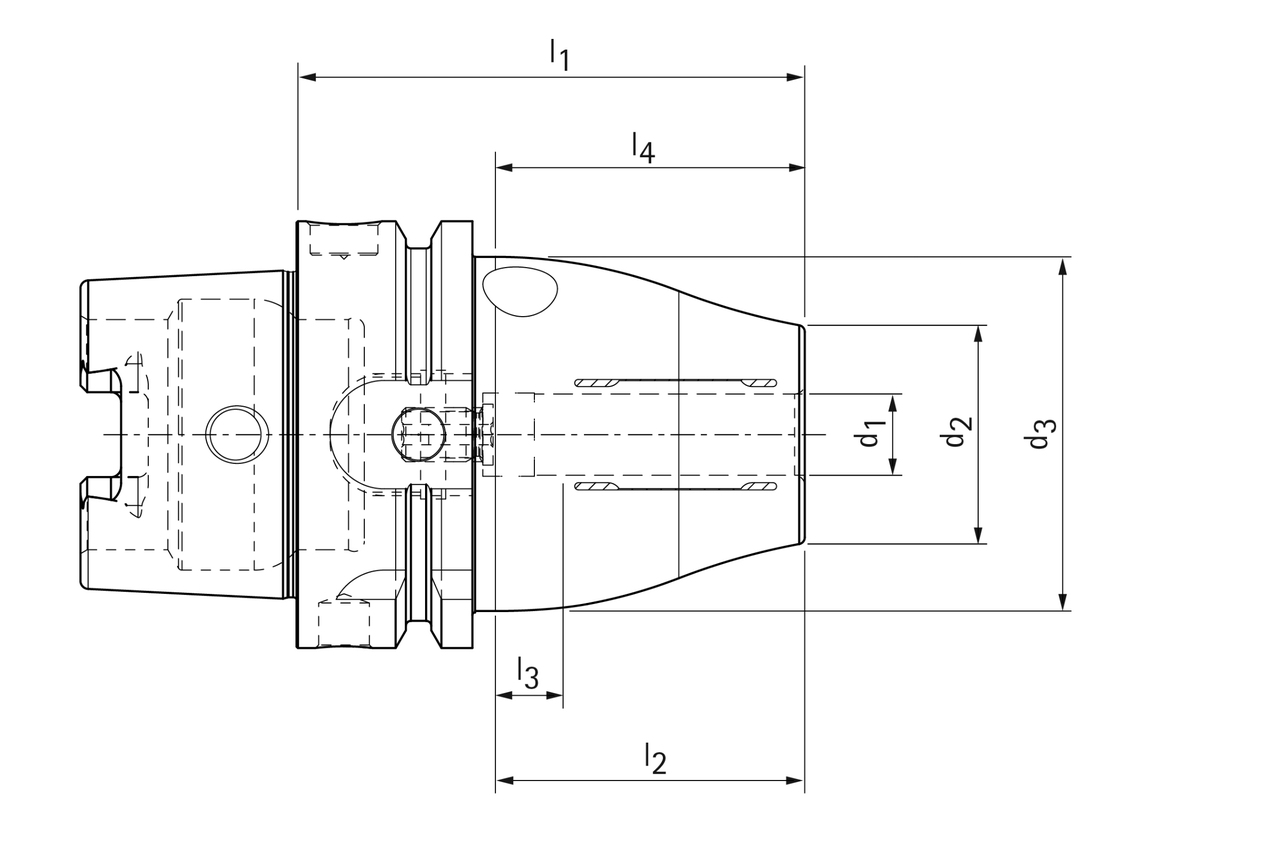

  • Technical drawing UNIQ Mill Chuck, HA

Diameter d1 (mm)

16.0

Your unit price

*Login required

Article

31270598

Quantity

Added to Your Shopping Cart

Product description

The UNIQ® Mill Chuck is specially designed for clamping milling tools with HA shank. Due to the high temperature resistance of 80 C° even with very long milling cycles, it convinces in highly dynamic milling applications, such as SPM (Structural Part Machining), HSC (High Speed Cutting) or HPC (High Performance Cutting), of high-quality components with excellent process reliability and high metal removal volume.  It is universally designed for roughing, semi and finishing operations.

Technical specifications

Machine connection
HSK-A
Size machine connection
63
Technology
HydroChuck
d1
16   mm
d2
38   mm
d3
52.5   mm
d4
0   mm
d5
0   mm
l1
79   mm
l2
49   mm
l3
10   mm
l4
49.2   mm
l5
0   mm
Coolant supply
internal
Coolant outlet
axial concentric
Length adjustment
axial
Material group
CY

Downloads

3D envelope in stp
31270598_607517715-000-01-E43.STP
Technical drawing in dxf
31270598_607517714-000-00-ED1.DXF
Technical drawing in pdf
31270598_607517714-000-00-ED1.PDF
Technical drawing in tif
31270598_607517714-000-00-ED1.TIF
Brochure
31270598_UNIQ_EN.pdf
