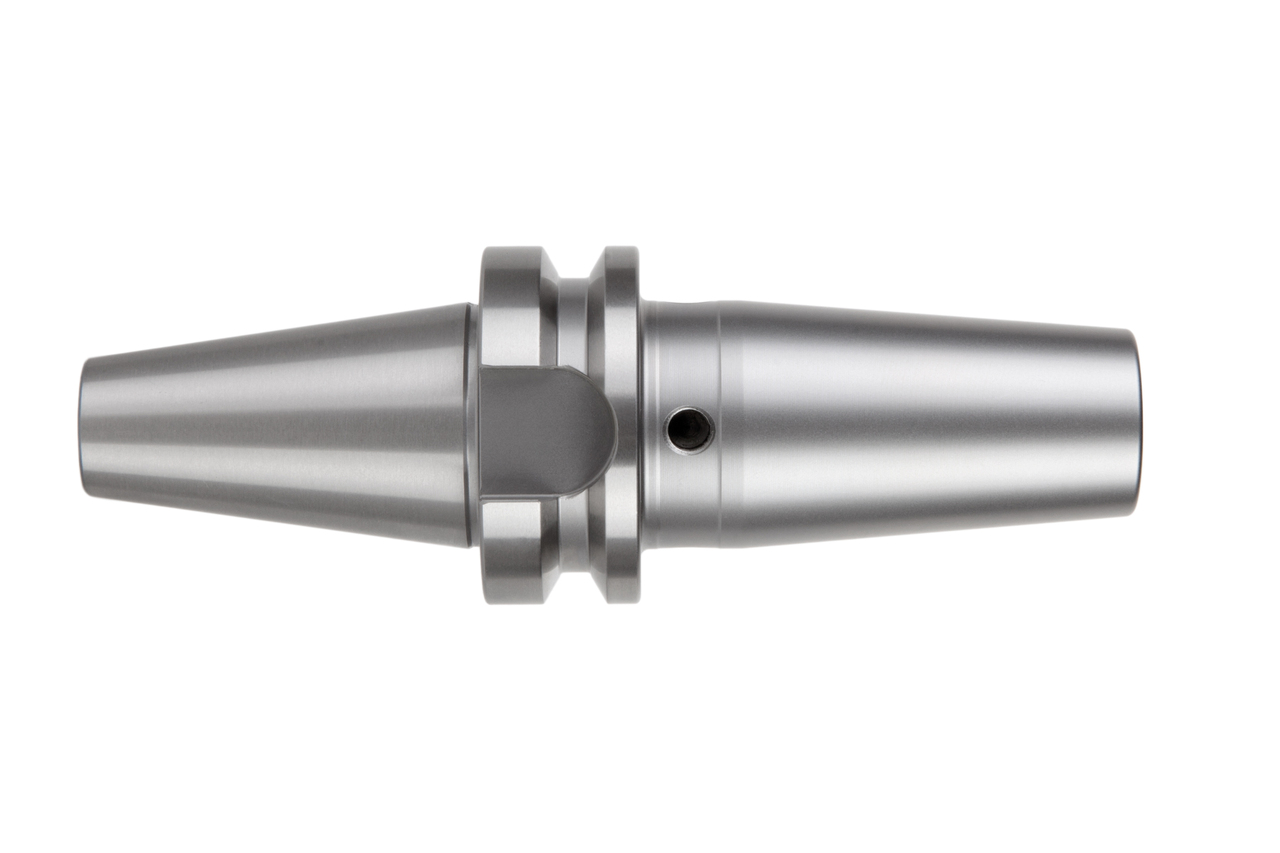

Thermo Chuck MTC, Standard
Diameter d1 (mm)
32.0
Your unit price
*Login requiredProduct description
With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life.
Technical specifications
- Machine connection
- BT (FC)
- Size machine connection
- 40
- Technology
- ThermoChuck
- d1
- 32 mm
- d2
- 44 mm
- d3
- 53 mm
- d4
- 0 mm
- d5
- 0 mm
- l1
- 100 mm
- l2
- 62 mm
- l3
- 10 mm
- l4
- 0 mm
- l5
- 0 mm
- Coolant supply
- internal
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CT
Downloads

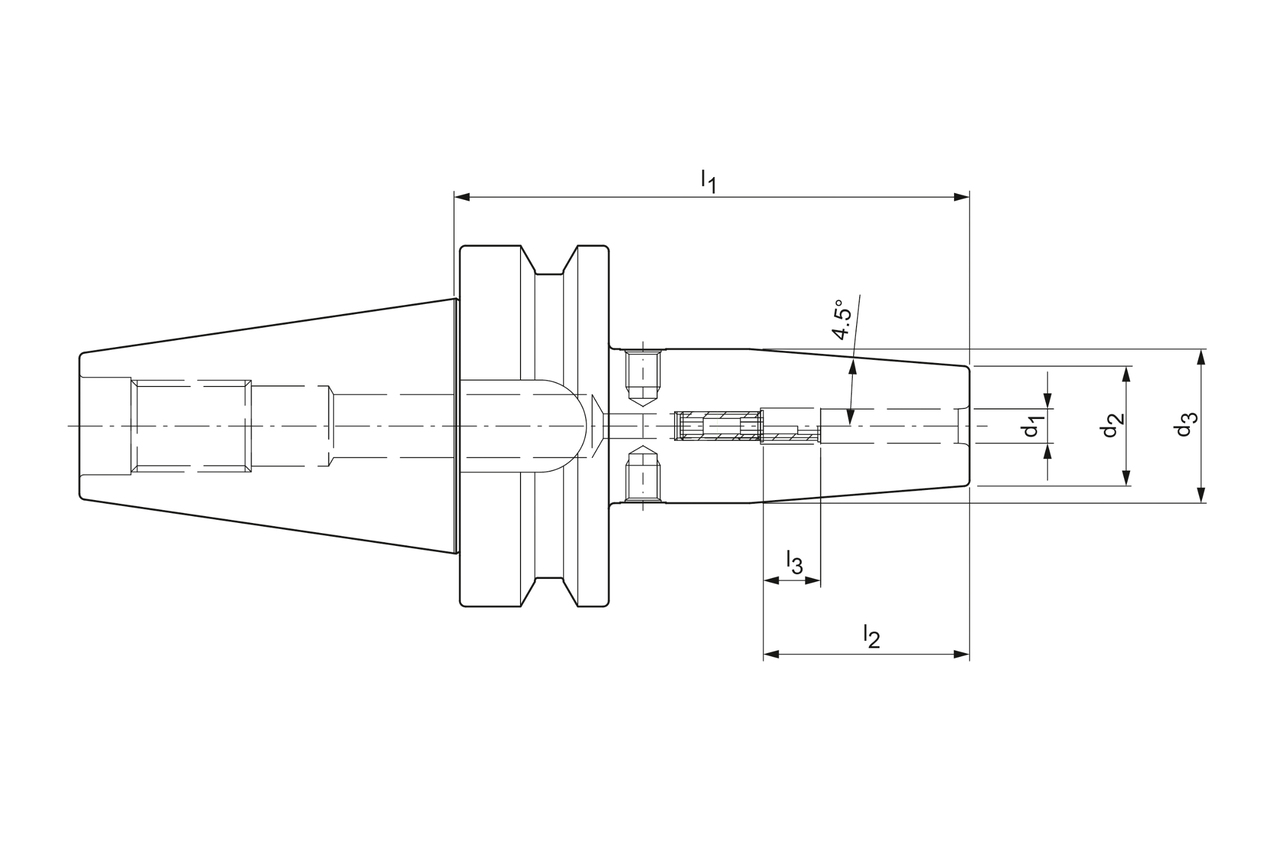

- Technical drawing in tif
- 30660241_606772183-000-00-ED1.TIF
- Technical drawing in dxf
- 30660241_606772183-000-00-ED1.DXF
- 3D envelope in stp
- 30660241_606818648-000-00-E43.STP
