Thermo Chuck MTC, Standard

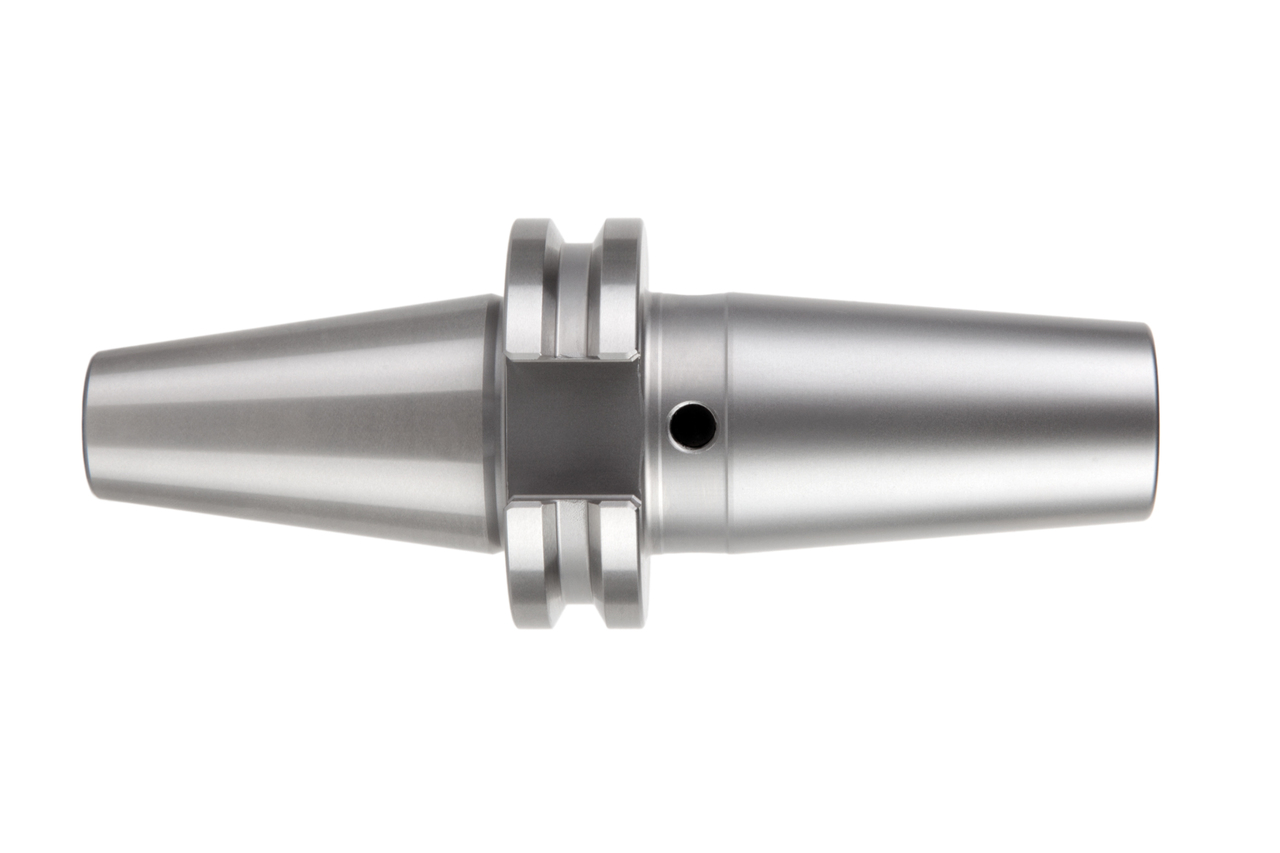

  • Product image Thermo Chuck MTC, Standard

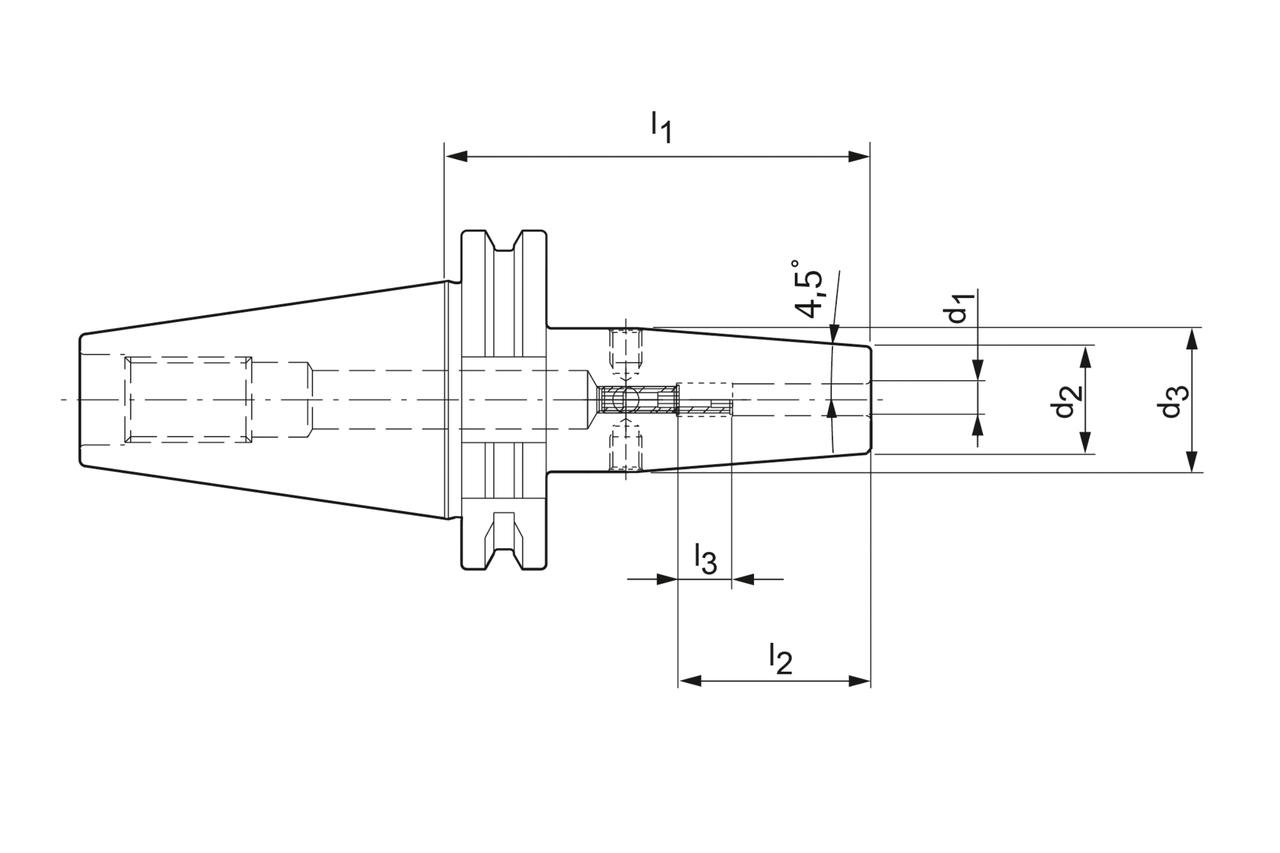

  • Technical drawing Thermo Chuck MTC, Standard

Diameter d1 (mm)

6.0

Your unit price

*Login required

Article

30655715

Quantity

Added to Your Shopping Cart

Product description

With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life.

Technical specifications

Machine connection
SK (Form AD/AF)
Size machine connection
40
Technology
ThermoChuck
d1
6   mm
d2
21   mm
d3
27   mm
d4
0   mm
d5
0   mm
l1
200   mm
l2
36   mm
l3
10   mm
l4
0   mm
l5
0   mm
Coolant supply
internally and laterally combined
Coolant outlet
axial concentric
Length adjustment
axial
Material group
CT
