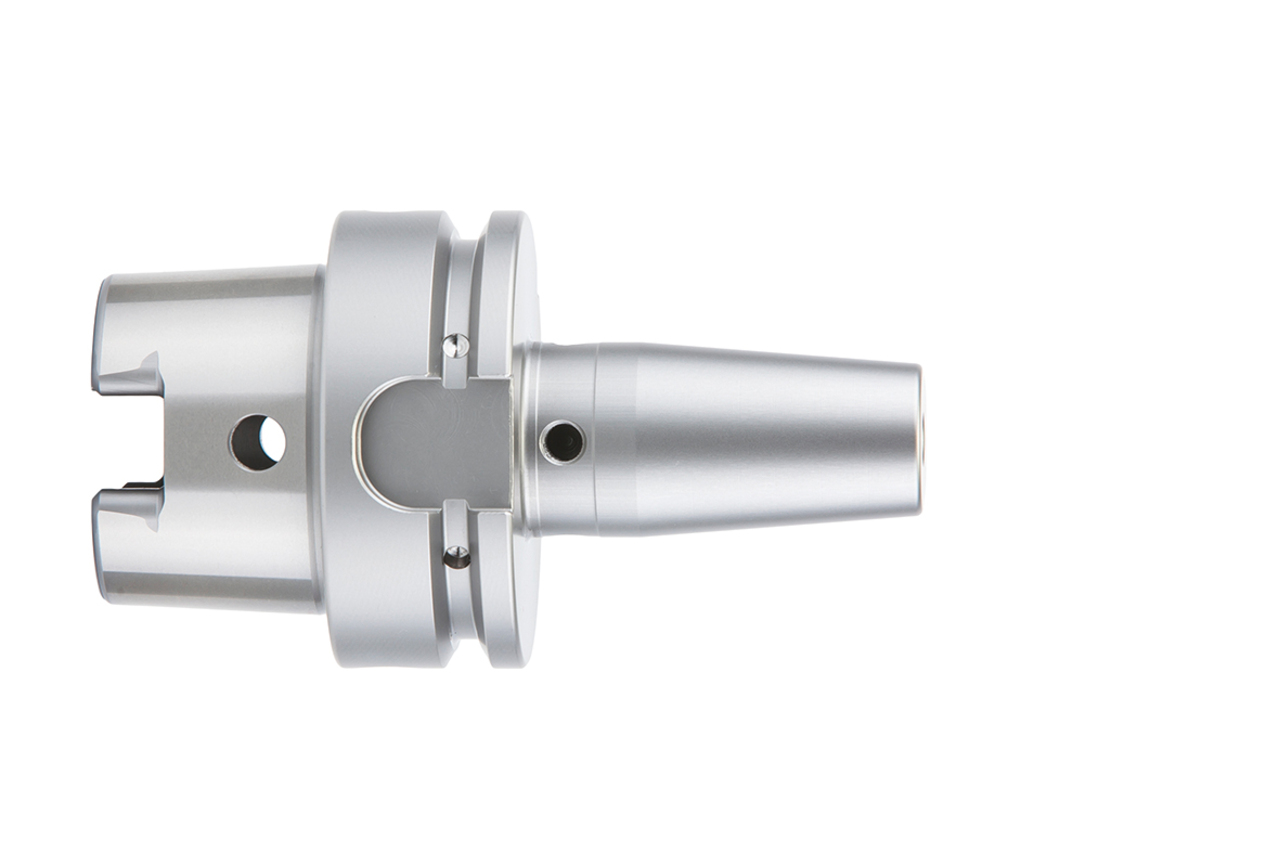

Thermo Chuck MTC, Standard
Diameter d1 (mm)
20.0
Your unit price
*Login requiredProduct description
With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life.
Technical specifications
- Machine connection
- HSK-A
- Size machine connection
- 63
- Technology
- ThermoChuck

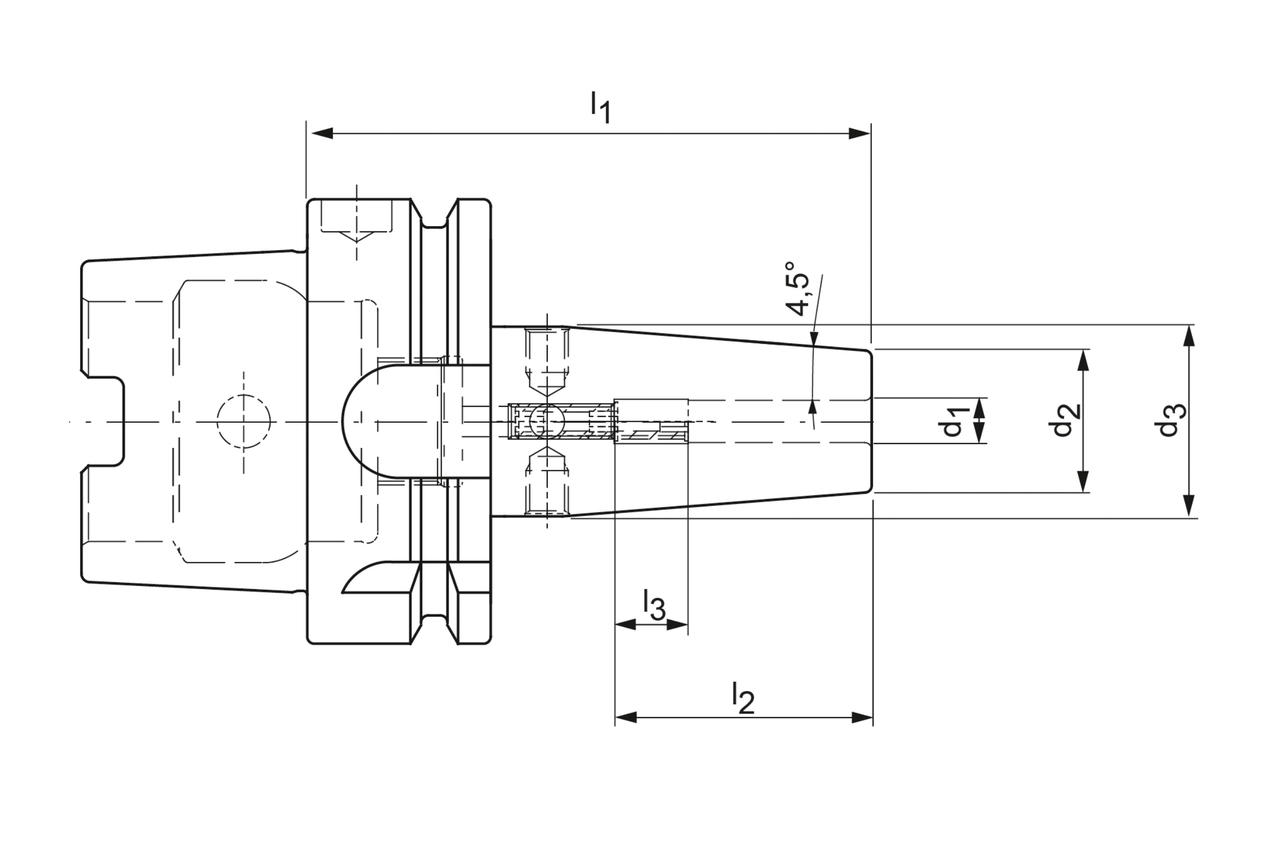

- d1
- 20 mm
- d2
- 33 mm
- d3
- 42 mm
- l1
- 160 mm
- l2
- 52 mm
- l3
- 10 mm
- l4
- 42 mm
- Coolant supply
- internal
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CT
Downloads
- Technical drawing in tif
- 30261752_606077403-000-00-ED1.TIF
- Technical drawing in dxf
- 30261752_606077403-000-00-ED1.DXF
- 3D envelope in stp
- 30261752_606404266-000-00-E43.STP
