Thermo Chuck MTC, Standard

Sale | 70€

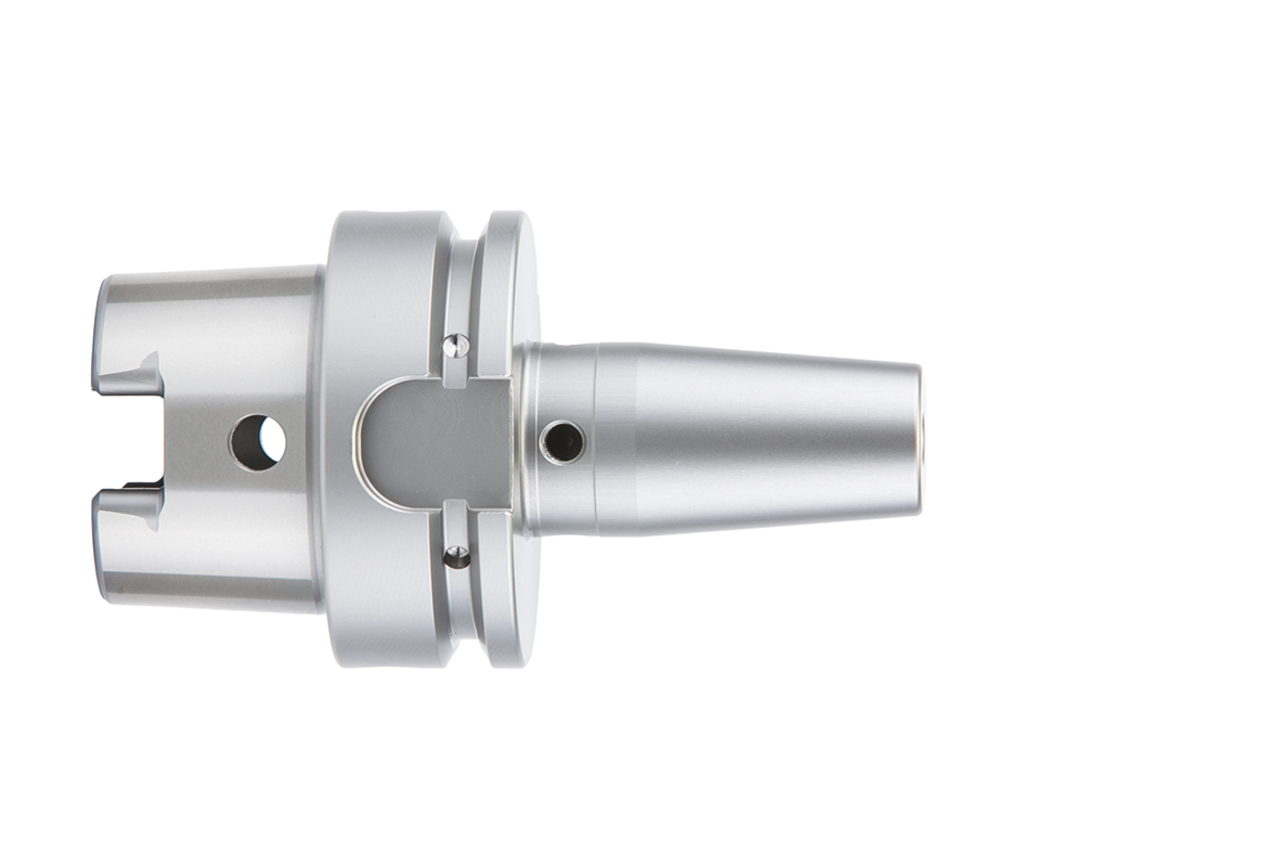

  • Product image Thermo Chuck MTC, Standard

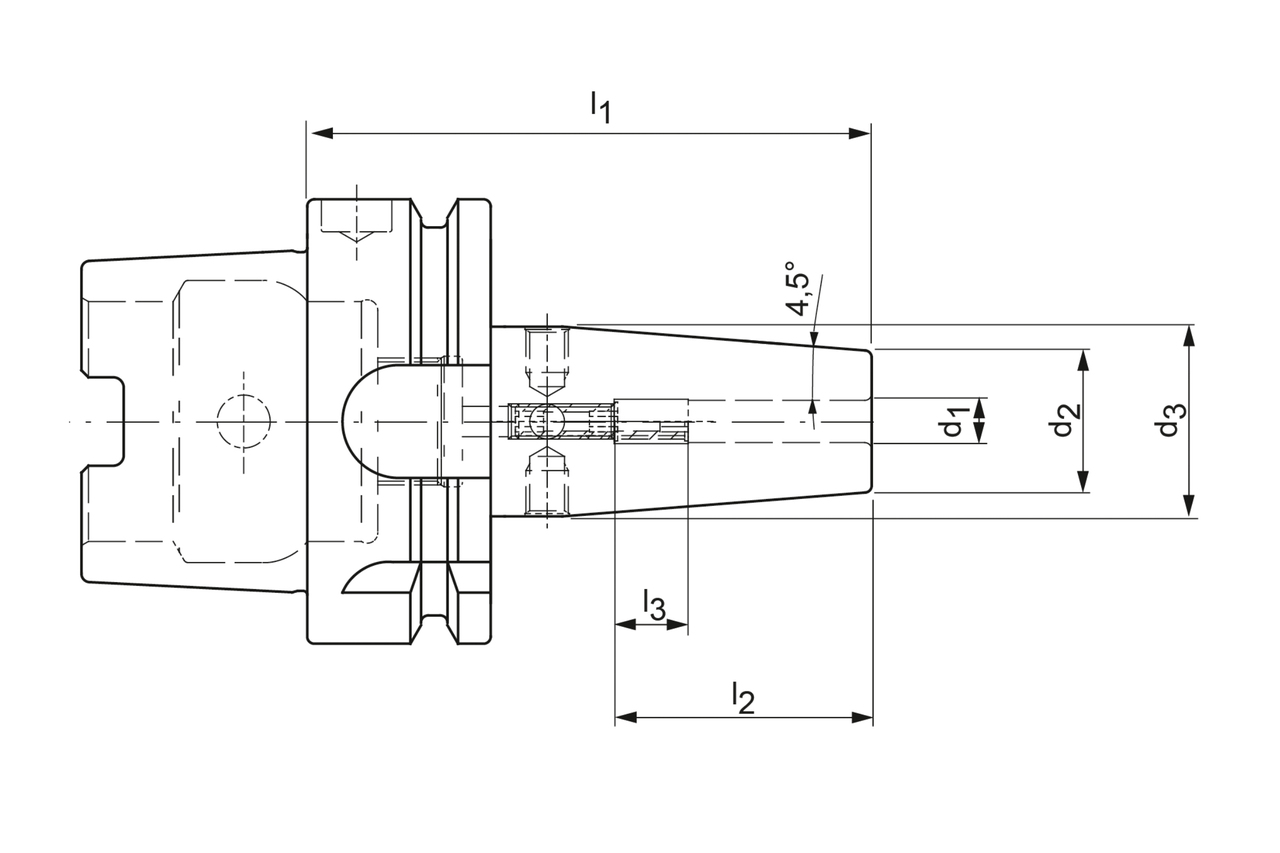

  • Technical drawing Thermo Chuck MTC, Standard

Diameter d1 (mm)

8.0

Your unit price

*Login required

Article

30261722

Quantity

Added to Your Shopping Cart

We recommend:

Product description

With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life.

Technical specifications

Machine connection
HSK-A
Size machine connection
63
Technology
ThermoChuck
d1
8   mm
d2
21   mm
d3
27   mm
l1
80   mm
l2
36   mm
l3
10   mm
l4
26   mm
Coolant supply
internal
Coolant outlet
axial concentric
Length adjustment
axial
Material group
CT

Downloads

Technical drawing in dxf
30261722_607435581-000-00-ED1.DXF
Technical drawing in tif
30261722_607435581-000-00-ED1.TIF
Technical drawing in tif
30261722_606311520-000-00-ED1.TIF
Technical drawing in dxf
30261722_606311520-000-00-ED1.DXF
3D envelope in stp
30261722_606404137-000-00-E43.STP
