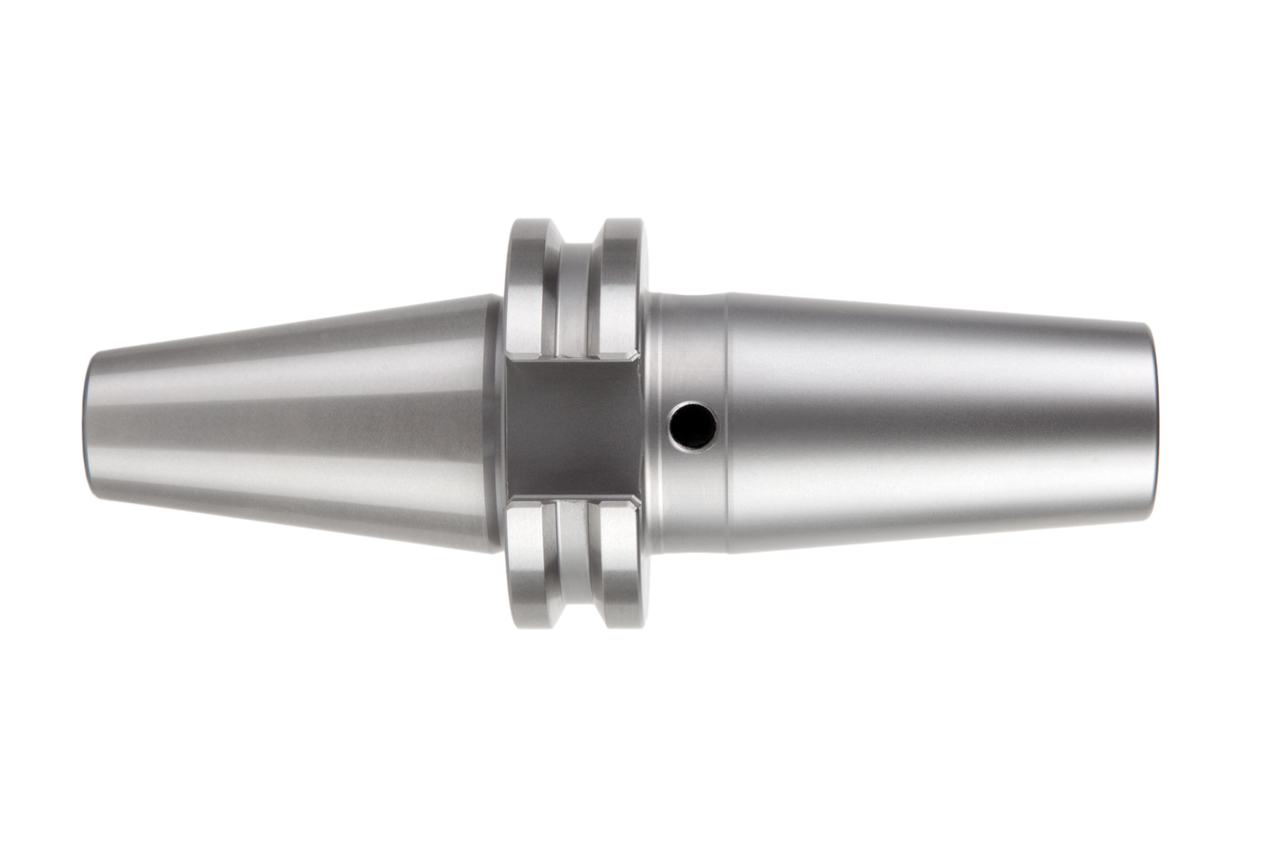

Thermo Chuck MTC, Standard
Diameter d1 (mm)
5.0
Your unit price
*Login requiredProduct description
With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life.
Technical specifications
- Machine connection
- SK (Form AD/AF)
- Size machine connection
- 50
- Technology
- ThermoChuck

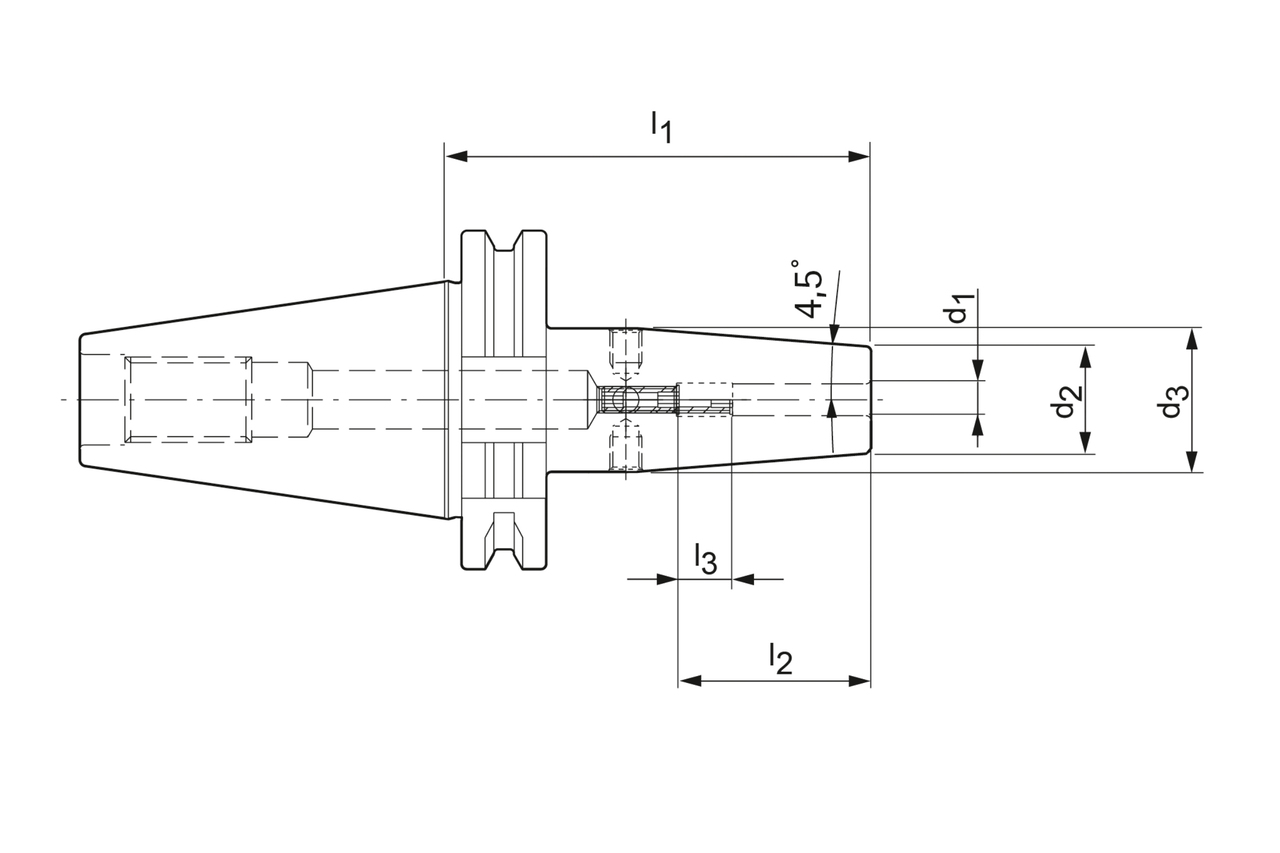

- d1
- 5 mm
- d2
- 15 mm
- d3
- 22 mm
- d4
- 0 mm
- d5
- 0 mm
- l1
- 80 mm
- l2
- 20 mm
- l3
- 0 mm
- l4
- 0 mm
- l5
- 0 mm
- Coolant supply
- internally and laterally combined
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CT
Downloads
- 3D envelope in stp
- 30261617_607635302-000-00-E43.STP
- Technical drawing in dxf
- 30261617_606464438-000-01-ED1.DXF
- Technical drawing in pdf
- 30261617_606464438-000-01-ED1.PDF
- Technical drawing in tif
- 30261617_606464438-000-01-ED1.TIF
