ThermoChuck MTC, Standard

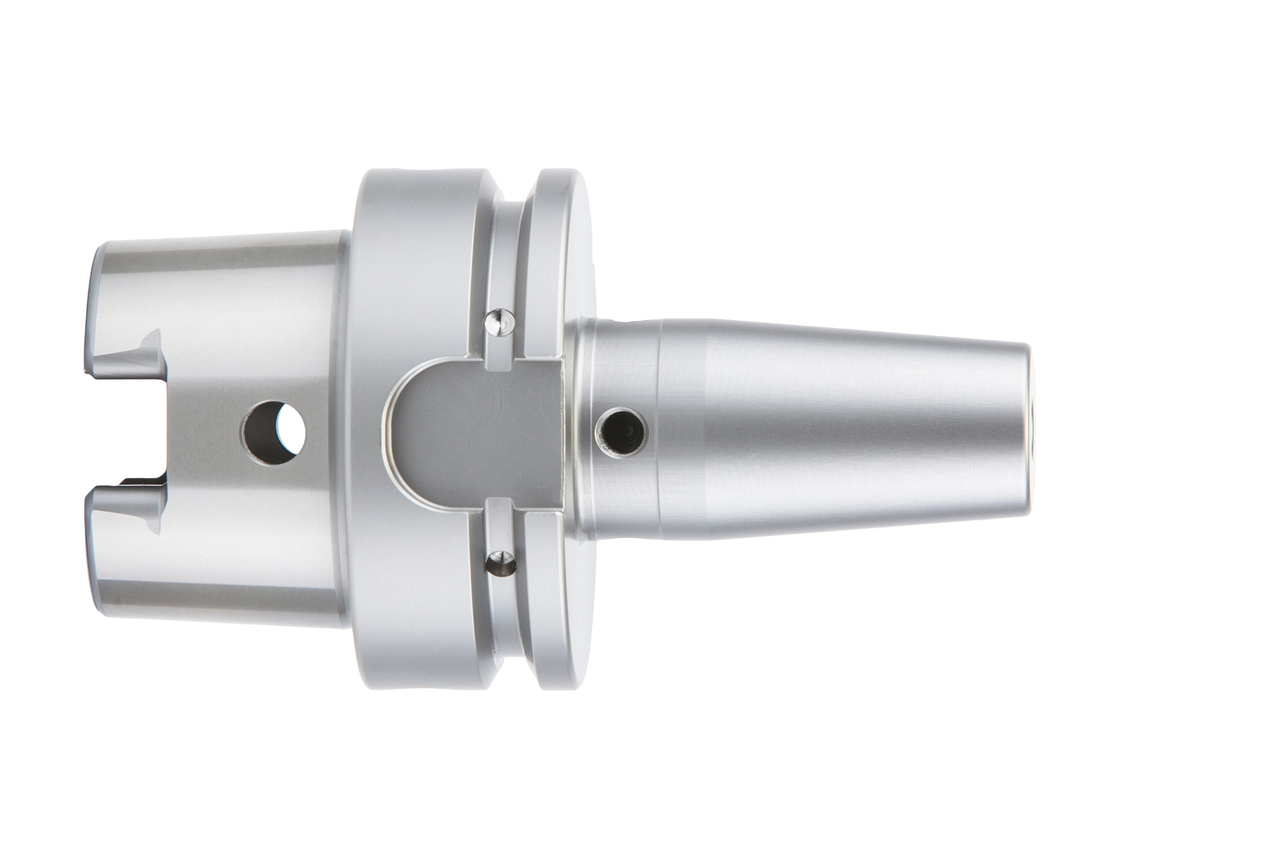

  • Product image Thermo Chuck MTC, Standard

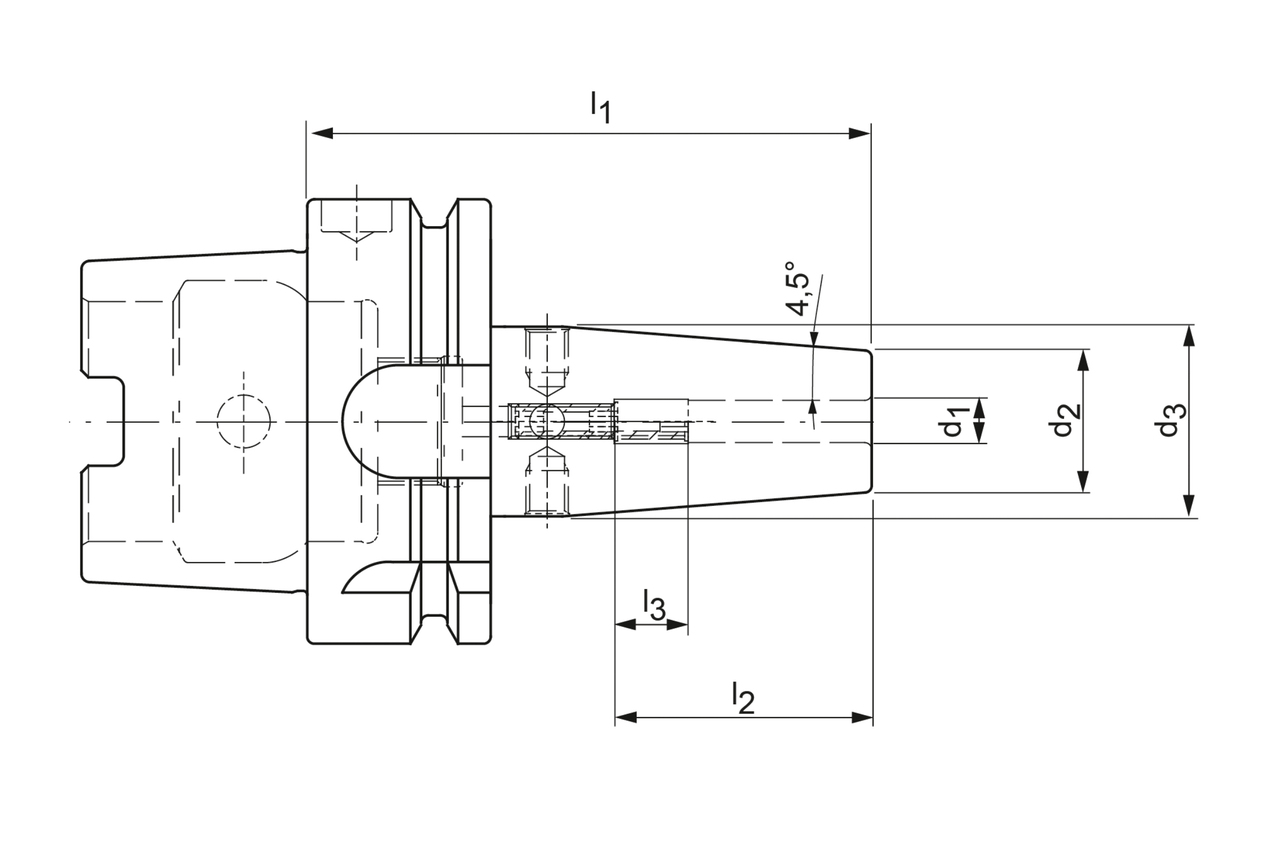

  • Technical drawing Thermo Chuck MTC, Standard

Diameter d1 (mm)

4.0

Your unit price

*Login required

Article

30258468

Quantity

Added to Your Shopping Cart

Product description

With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life.

Technical specifications

Maschinenschnittstelle
HSK-A
Größe Maschinenschnittstelle
40
Technologie
ThermoChuck

d1

4   mm
d2
10   mm
d3
15   mm

l1

60   mm
l2
28   mm
l3
12   mm
Kühlmittelzufuhr
intern
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
axiale Längeneinstellung
Materialgruppe
CT
Spezifikation
MTC-HSK-A040-04-060-1-0-A

Downloads

Technische Zeichnung in tif
30258468_606250649-000-00-ED1.TIF
Technische Zeichnung in dxf
30258468_606250649-000-00-ED1.DXF
3D Hüllkontur in stp
30258468_606395116-000-00-E43.STP
