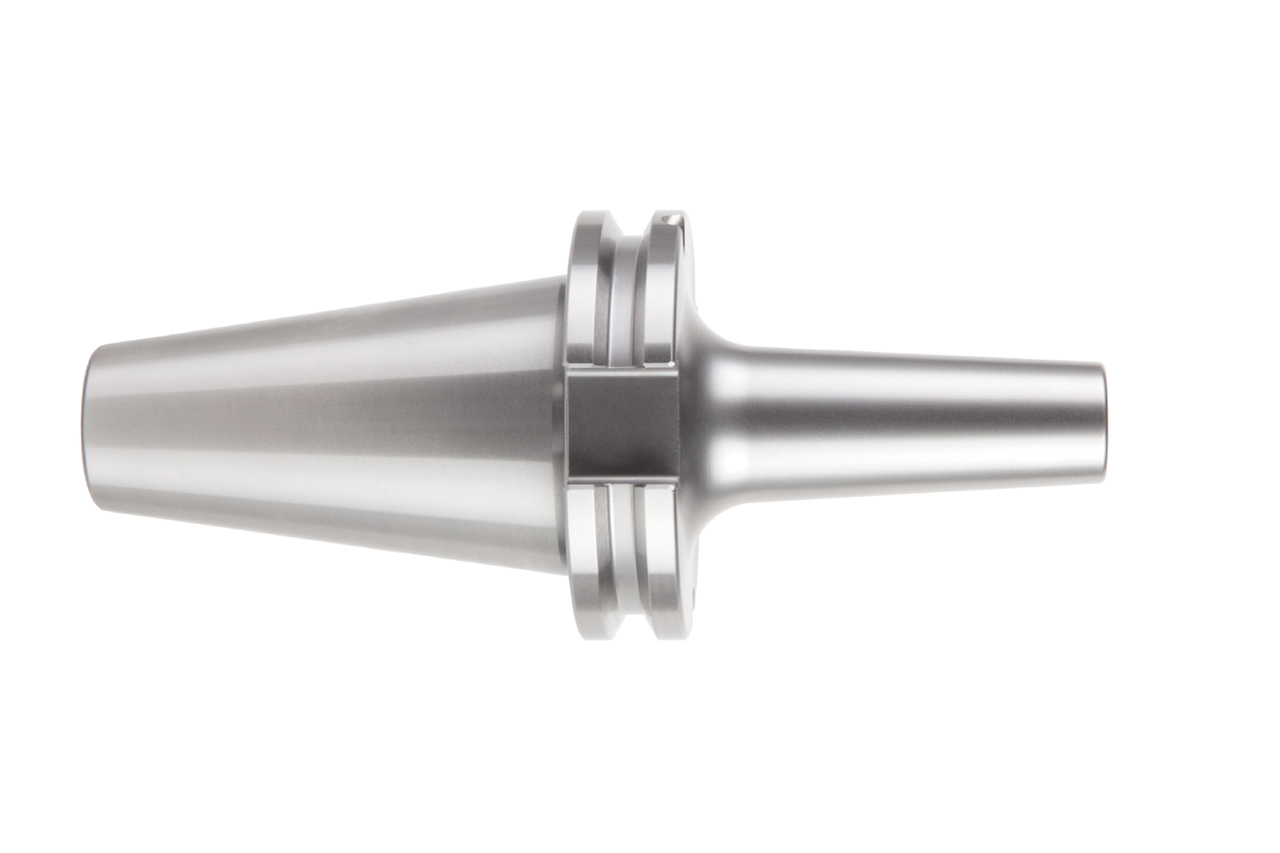

ThermoChuck MTC, 3° slim design
Diameter d1 (mm)
20.0
Your unit price
*Login requiredProduct description
With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life. The slim 3° design enables machining in the contour-critical range.
Technical specifications
- Machine connection
- SK (Form AD/AF)
- Size machine connection
- 40
- Technology
- ThermoChuck

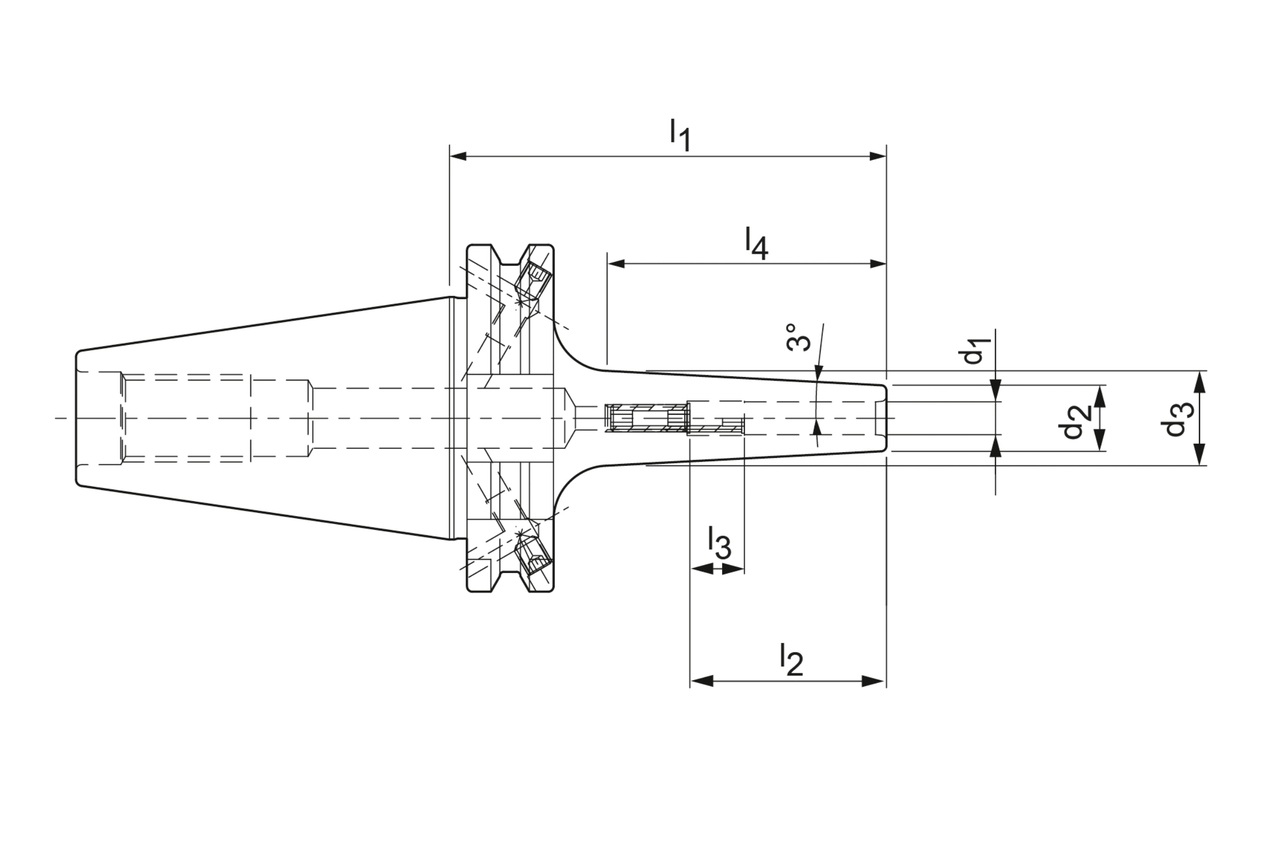

- d1
- 20 mm
- d2
- 26 mm
- d3
- 38 mm
- l1
- 200 mm
- l2
- 52 mm
- l3
- 10 mm
- Coolant supply
- internally and laterally combined
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CT
- Specification
- MTC-SK040-20-200-3-0-A
Downloads
- Technical drawing in tif
- 30797087_606902791-000-00-ED1.TIF
- Technical drawing in dxf
- 30797087_606902791-000-00-ED1.DXF
- 3D envelope in stp
- 30797087_606606939-000-00-E43.STP
