Thermo Chuck MTC, 3° slim design

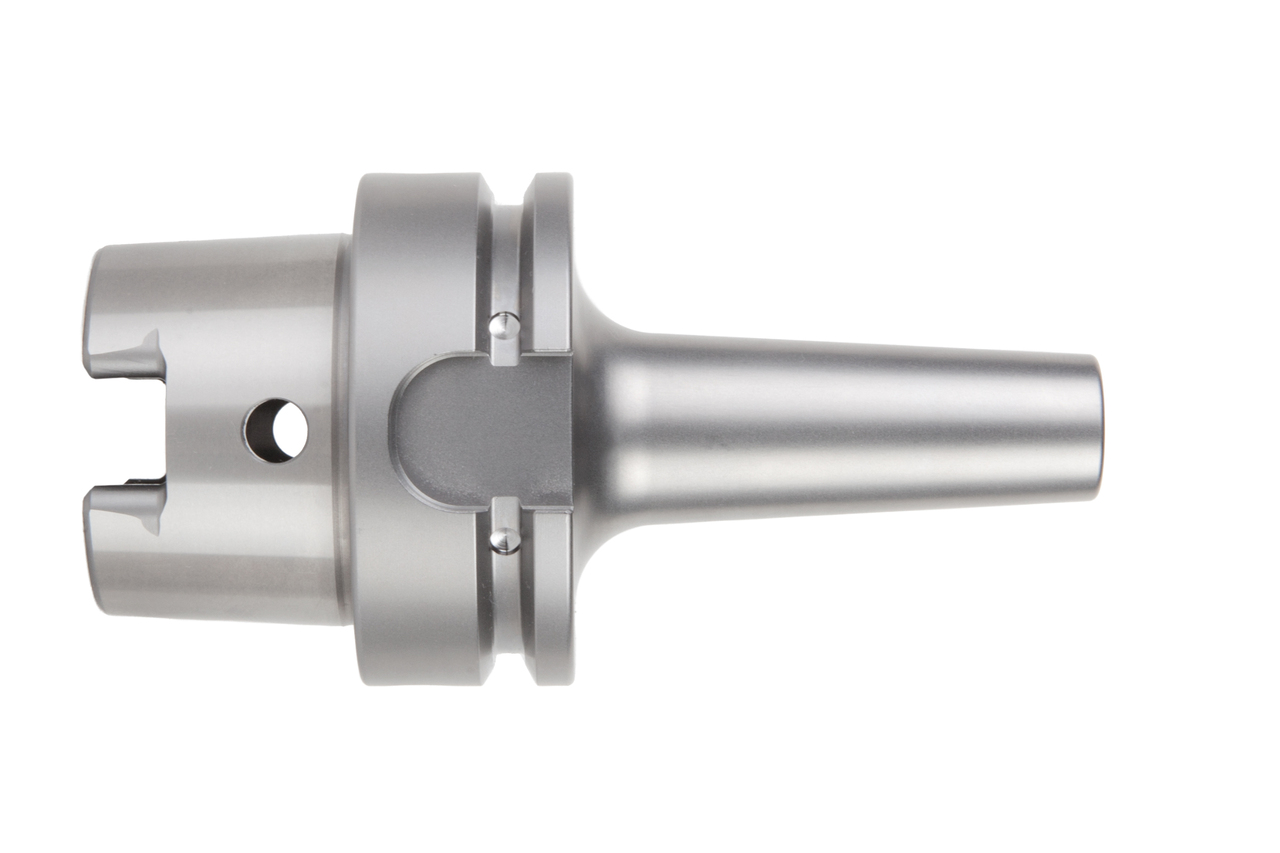

  • Product image Thermo Chuck MTC, 3° slim design

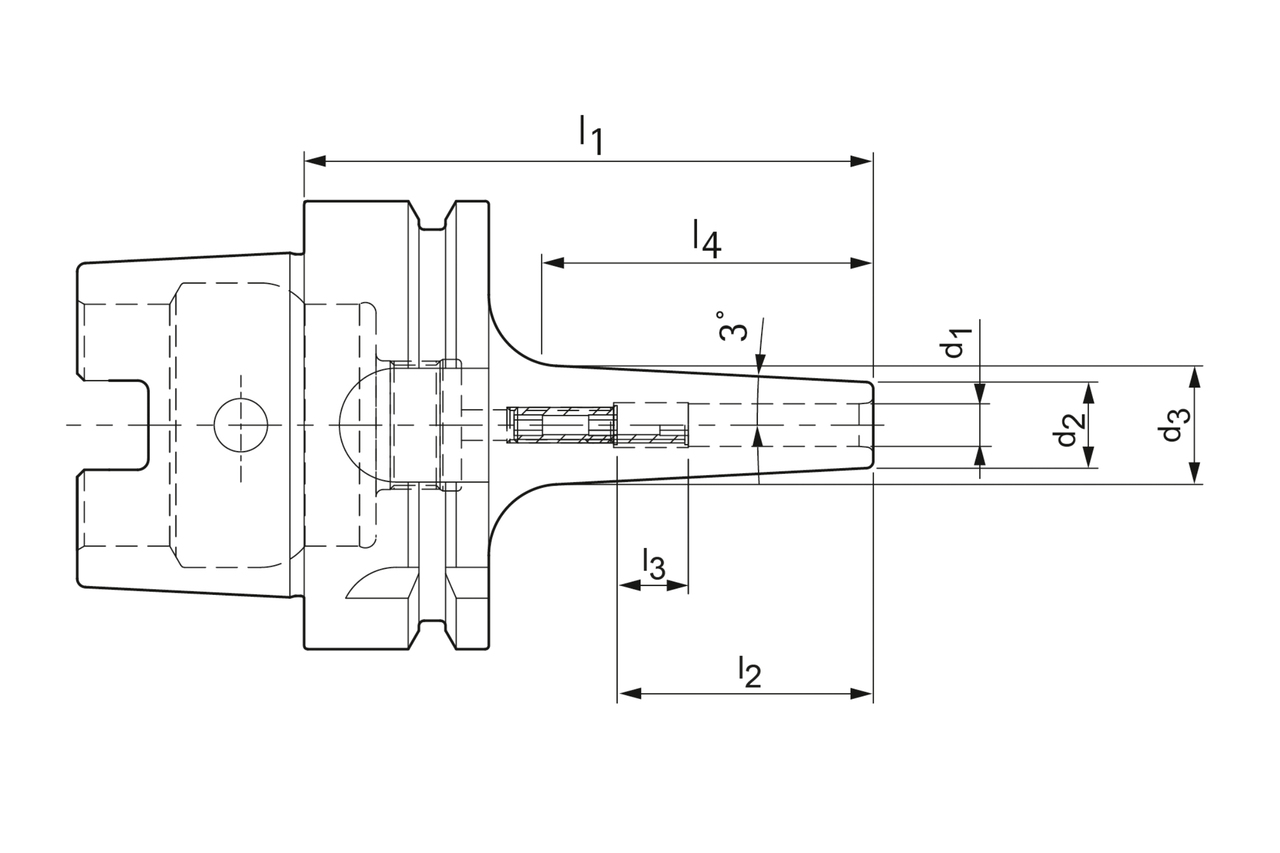

  • Technical drawing Thermo Chuck MTC, 3° slim design

Diameter d1 (mm)

18.0

Your unit price

*Login required

Article

30385176

Quantity

Added to Your Shopping Cart

Product description

With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life. The slim 3° design enables machining in the contour-critical range.

Technical specifications

Machine connection
HSK-A
Size machine connection
63
Technology
ThermoChuck
d1
18   mm
d2
24   mm
d3
36   mm
d4
0   mm
d5
0   mm
l1
160   mm
l2
50   mm
l3
10   mm
l4
0   mm
l5
0   mm
Coolant supply
internal
Coolant outlet
axial concentric
Length adjustment
axial
Material group
CT

Downloads

Technical drawing in tif
30385176_606257961-000-00-ED1.TIF
Technical drawing in dxf
30385176_606257961-000-00-ED1.DXF
3D envelope in stp
30385176_606404668-000-00-E43.STP
