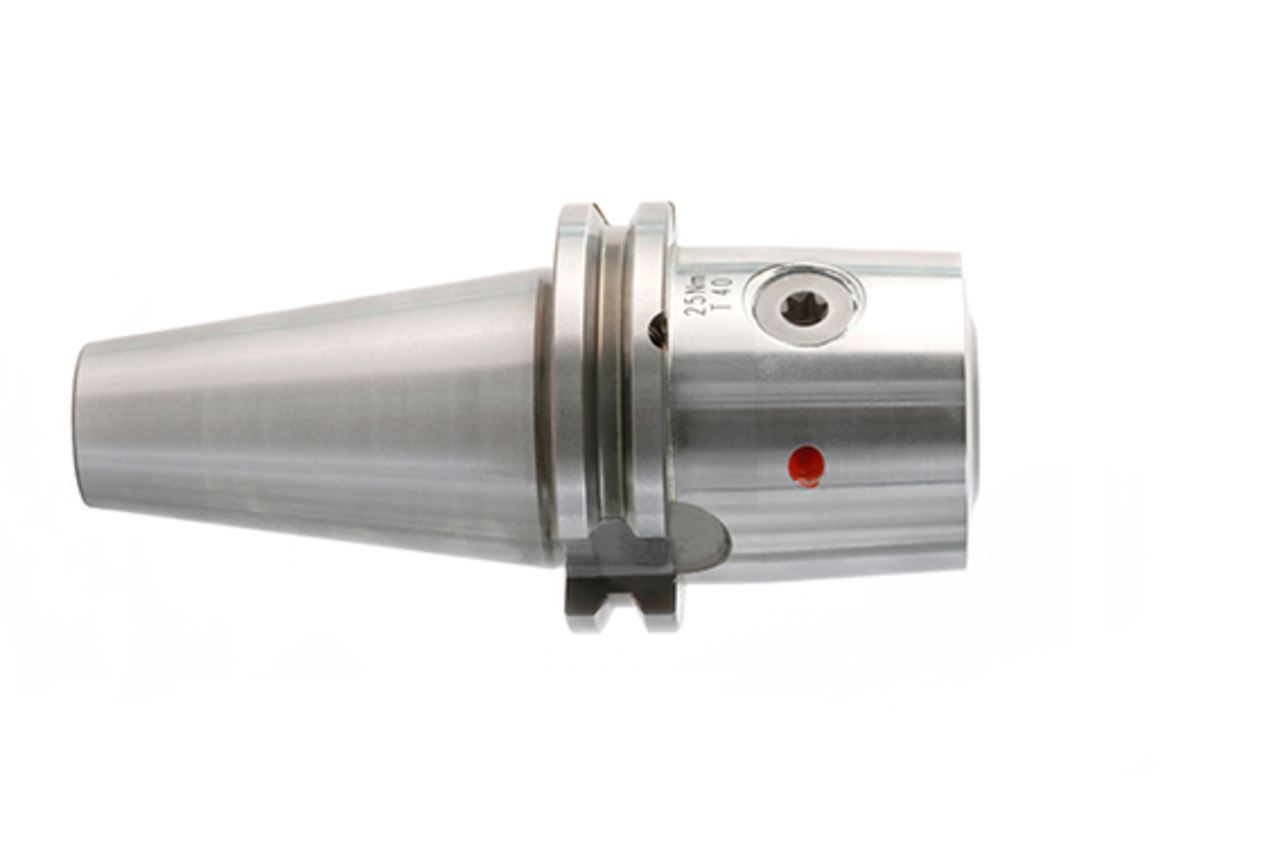

Mill Chuck, HB
Diameter d1 (mm)
6.0
Your unit price
*Login requiredProduct description
The Mill Chuck, HB impresses with its strong tension, easy handling and a significantly improved concentricity. This makes it the perfect solution for machining operations with high pull-out forces and applications in materials that are difficult to machine.
Technical specifications
- Machine connection
- SK (Form AD/AF)
- Size machine connection
- 50
- Technology
- Mechanical systems
- d1
- 6 mm
- d2
- 22.5 mm
- d3
- 26.7 mm
- d4
- 0 mm
- d5
- 0 mm
- l1
- 63 mm
- l2
- 41.1 mm
- l3
- 0 mm
- l4
- 0 mm
- l5
- 0 mm
- Coolant supply
- internally and laterally combined
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CM
Downloads
- 3D envelope in stp
- 31059430_607225294-000-00-E43.STP

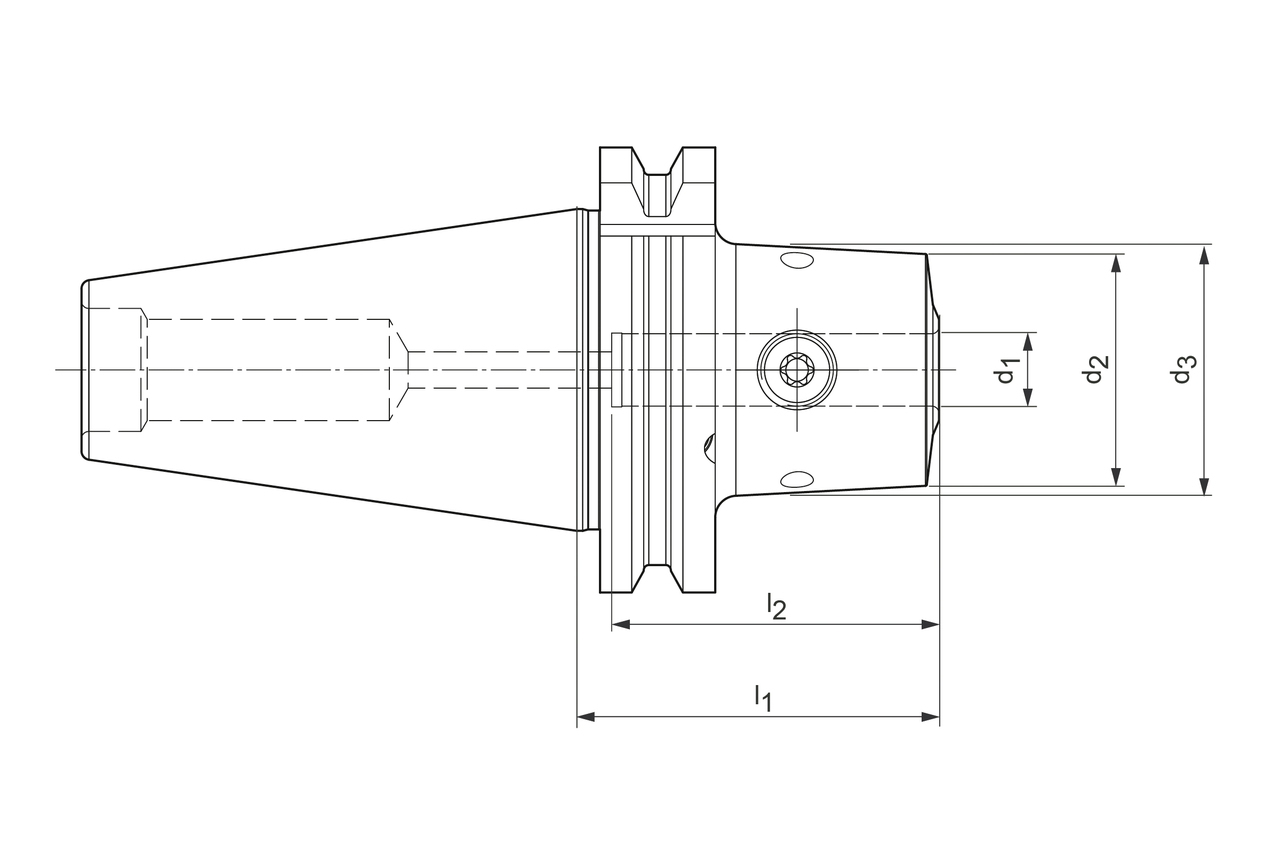

- Technical drawing in pdf
- 31059430_607225293-000-02-ED1.PDF
- Technical drawing in dxf
- 31059430_607225293-000-02-ED1.DXF
- Technical drawing in tif
- 31059430_607225293-000-02-ED1.TIF
