HydroChuck Compensation

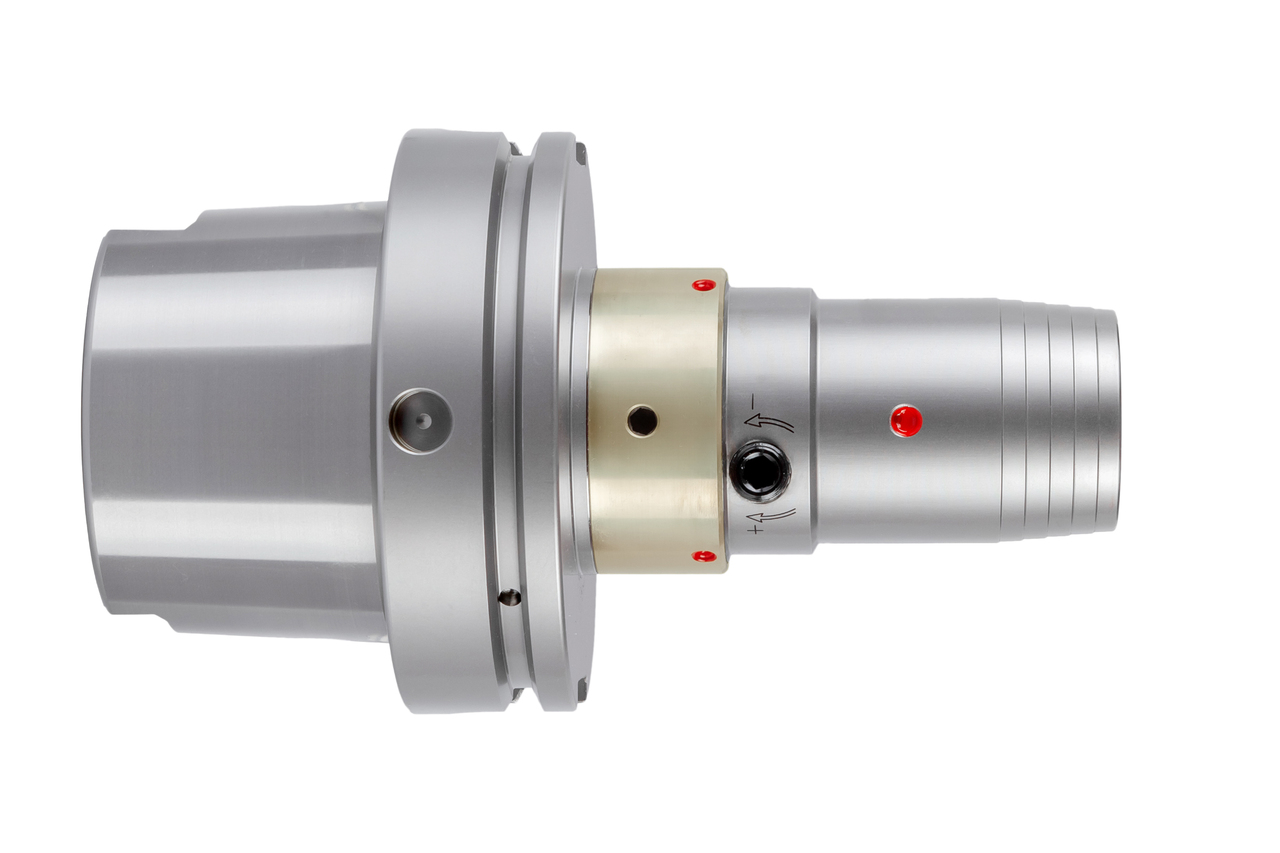

  • Product image HydroChuck Compensation

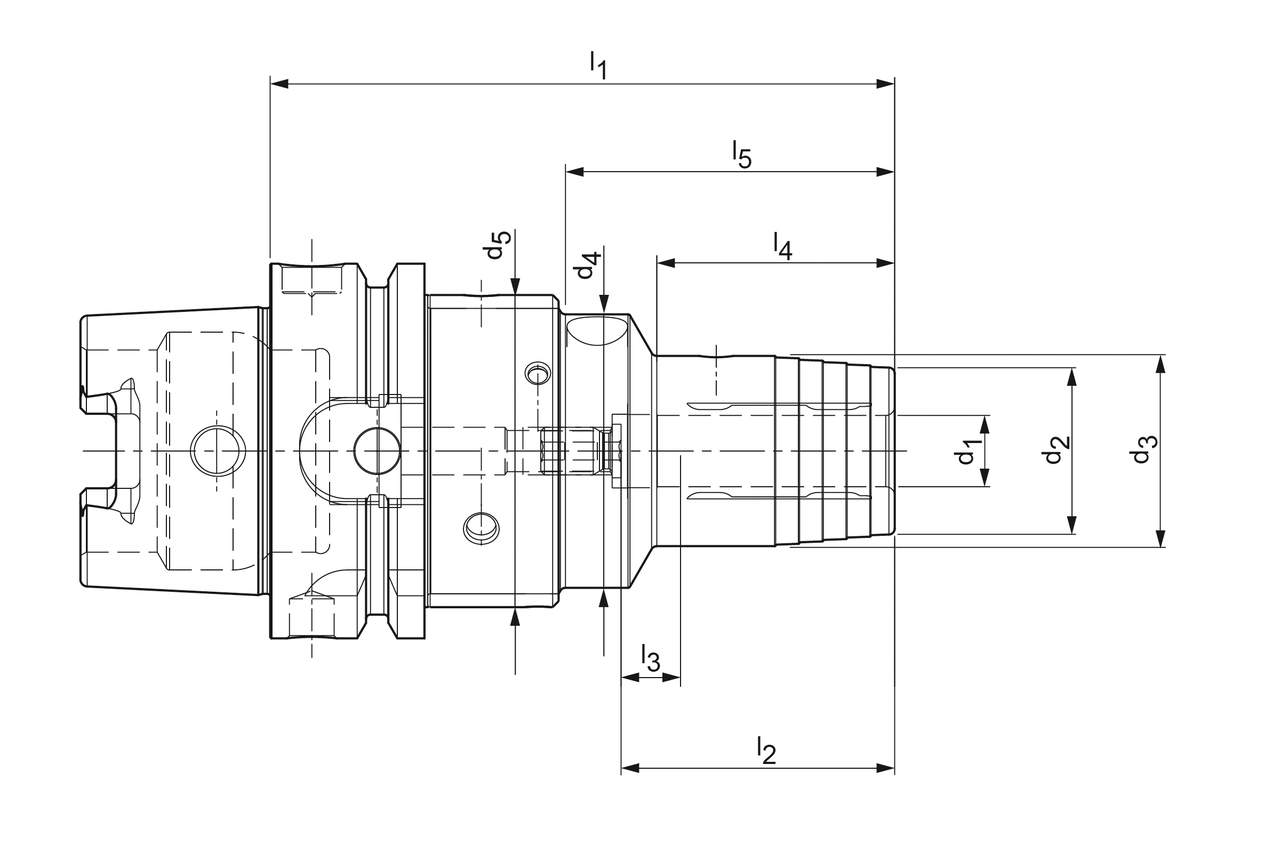

  • Technical drawing HydroChuck Compensation

Durchmesser d1 (mm)

16.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30871668

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time. With compensation technology: alignment function on the chuck for radial alignment option to compensate for concentricity errors in the overall system.

Technische Daten

Maschinenschnittstelle
HSK-A
Größe Maschinenschnittstelle
100
Technologie
HydroChuck

d1

16   mm
d2
34   mm
d3
38   mm
d4
46   mm
d5
52.5   mm

l1

115   mm
l2
49   mm
l3
10   mm
l4
45   mm
l5
60   mm
Kühlmittelzufuhr
intern
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
axiale Längeneinstellung
Materialgruppe
CY
Spezifikation
MHC-HSK-A100-16-115-1-1-A

Downloads

Technische Zeichnung in dxf
30871668_606772721-000-00-ED1.DXF
Technische Zeichnung in tif
30871668_606772721-000-00-ED1.TIF
3D Hüllkontur in stp
30871668_607635464-000-00-E43.STP
