HydroChuck Compensation

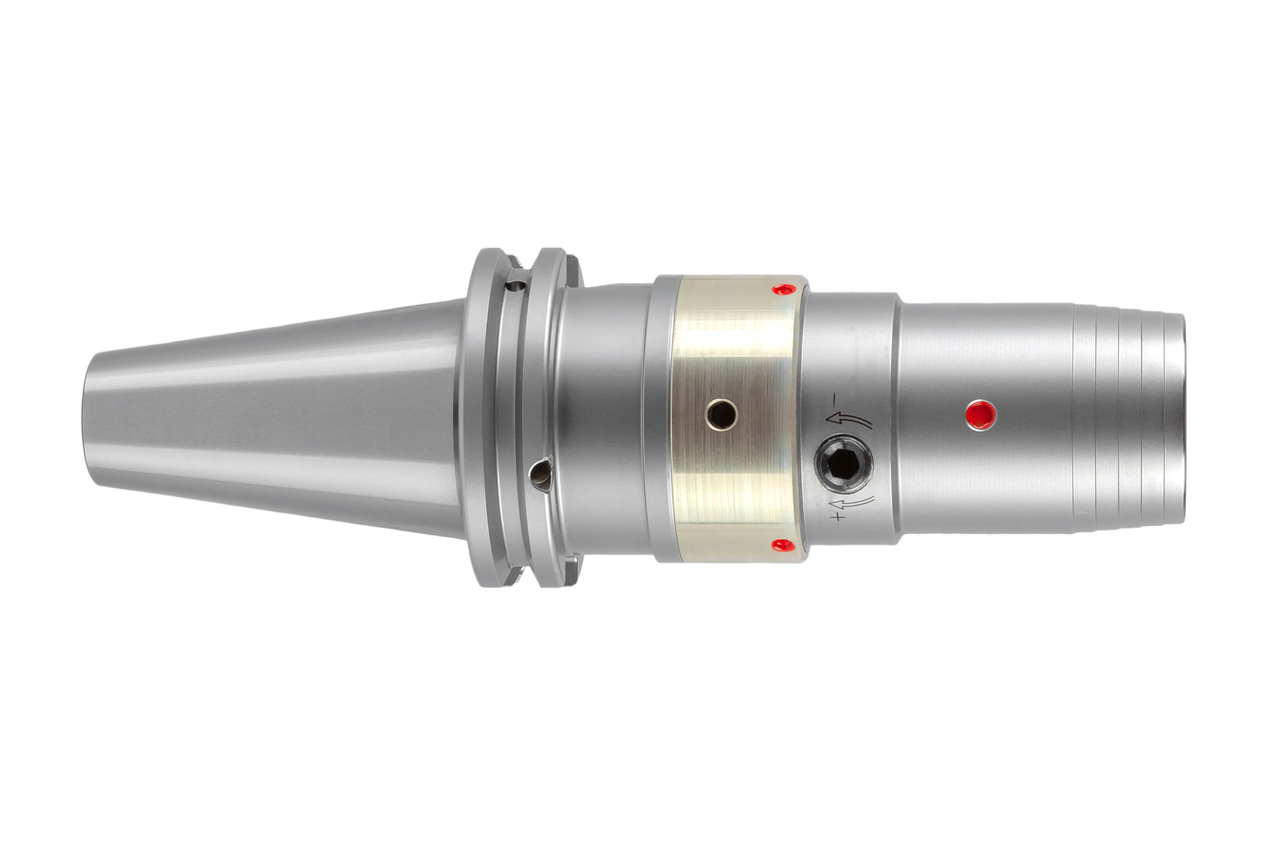

  • Product image HydroChuck Compensation

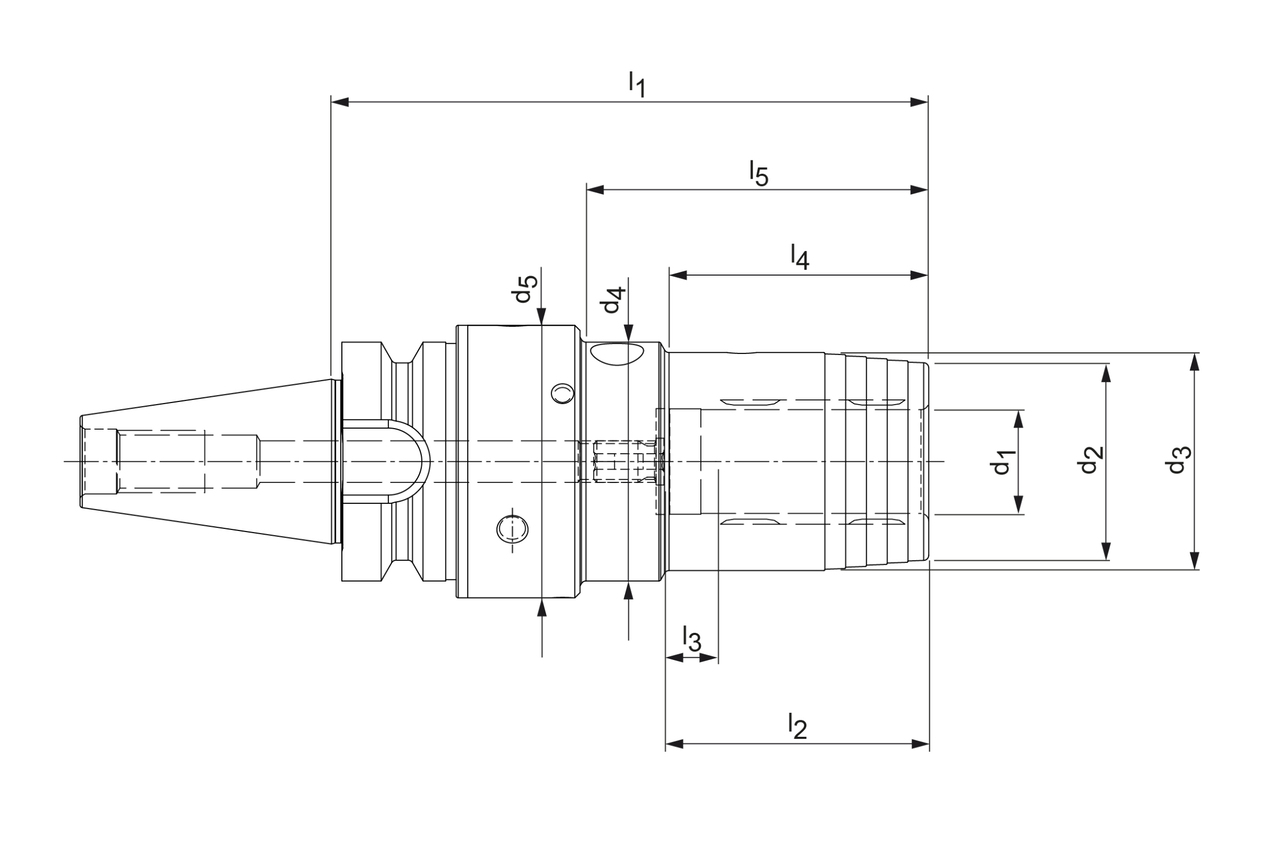

  • Technical drawing HydroChuck Compensation

Durchmesser d1 (mm)

32.0

Your unit price

*Login erforderlich

Article

30871666

Quantity

Added to Your Shopping Cart

Product description

The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time. With compensation technology: alignment function on the chuck for radial alignment option to compensate for concentricity errors in the overall system.

Technical specifications

Maschinenschnittstelle
SK (Form AD/AF)
Größe Maschinenschnittstelle
40
Technologie
HydroChuck

d1

32   mm
d2
59   mm
d3
63   mm
d4
64   mm
d5
70   mm

l1

145   mm
l2
61   mm
l3
10   mm
l4
60   mm
l5
74.5   mm
Kühlmittelzufuhr
intern und seitlich kombiniert
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
axiale Längeneinstellung
Materialgruppe
CY
Spezifikation
MHC-SK040-32-145-3-1-A

Downloads

Technische Zeichnung in dxf
30871666_606772719-000-00-ED1.DXF
Technische Zeichnung in tif
30871666_606772719-000-00-ED1.TIF
3D Hüllkontur in stp
30871666_607462471-000-00-E43.STP
