HydroChuck Compensation
Diameter d1 (mm)
20.0
Your unit price
*Login requiredProduct description

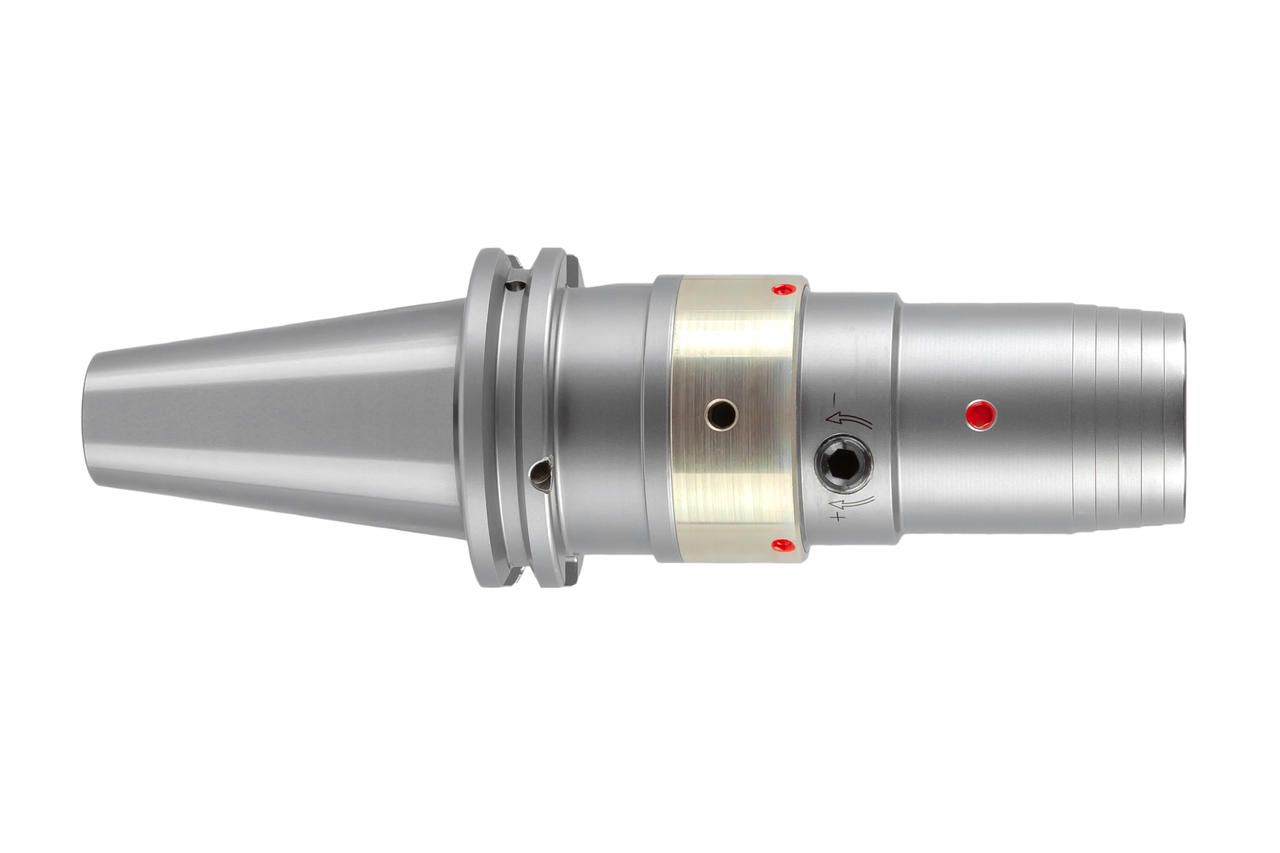

The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time. With compensation technology: alignment function on the chuck for radial alignment option to compensate for concentricity errors in the overall system.
Technical specifications
- Machine connection
- SK (Form AD/AF)
- Size machine connection
- 40
- Technology
- HydroChuck
- d1
- 20 mm
- d2
- 38 mm
- d3
- 42 mm
- d4
- 46 mm
- d5
- 52.5 mm
- l1
- 130 mm
- l2
- 51 mm
- l3
- 10 mm
- l4
- 50 mm
- l5
- 67 mm
- Coolant supply
- internally and laterally combined
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CY
Downloads

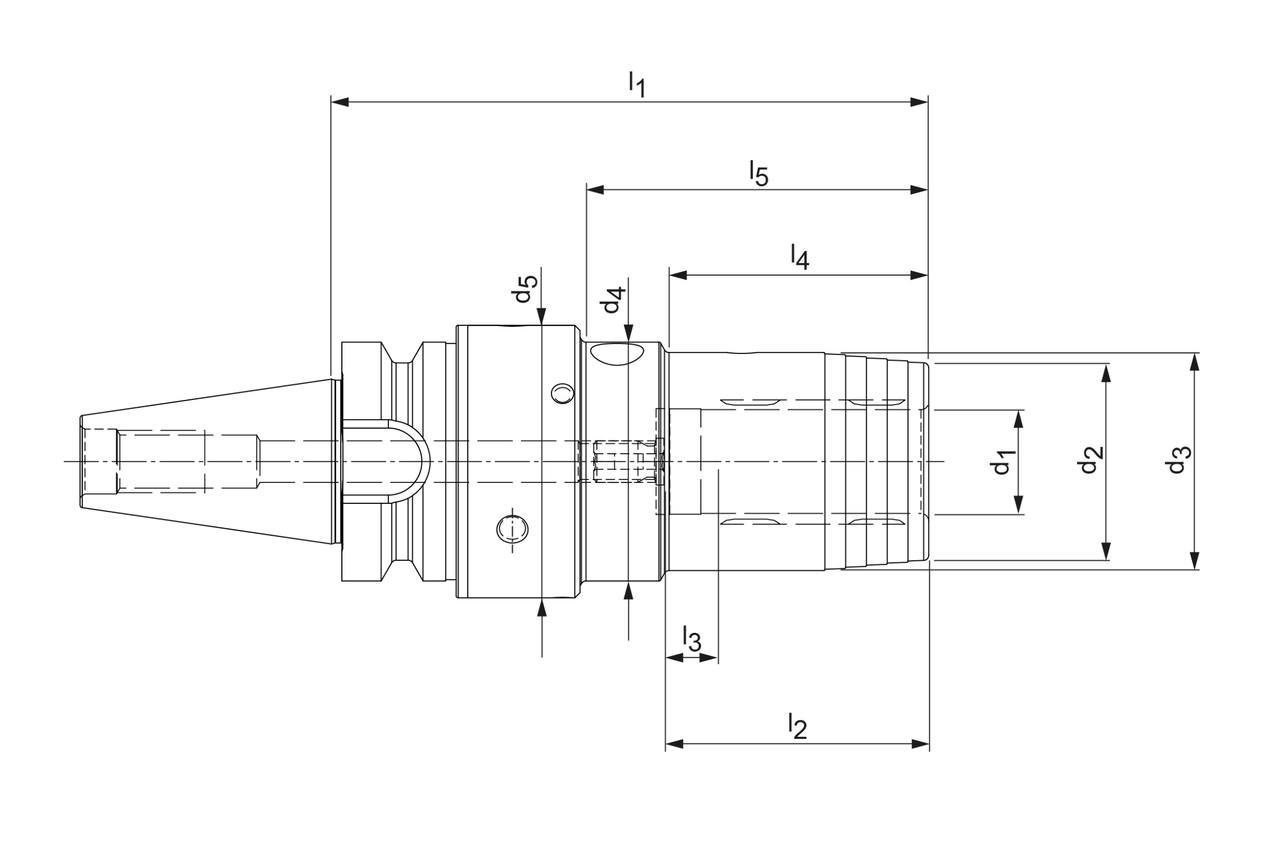

- Technical drawing in dxf
- 30871664_606772717-000-00-ED1.DXF
- Technical drawing in tif
- 30871664_606772717-000-00-ED1.TIF
- 3D envelope in stp
- 30871664_607231531-000-00-E43.STP
