HydroChuck Compensation

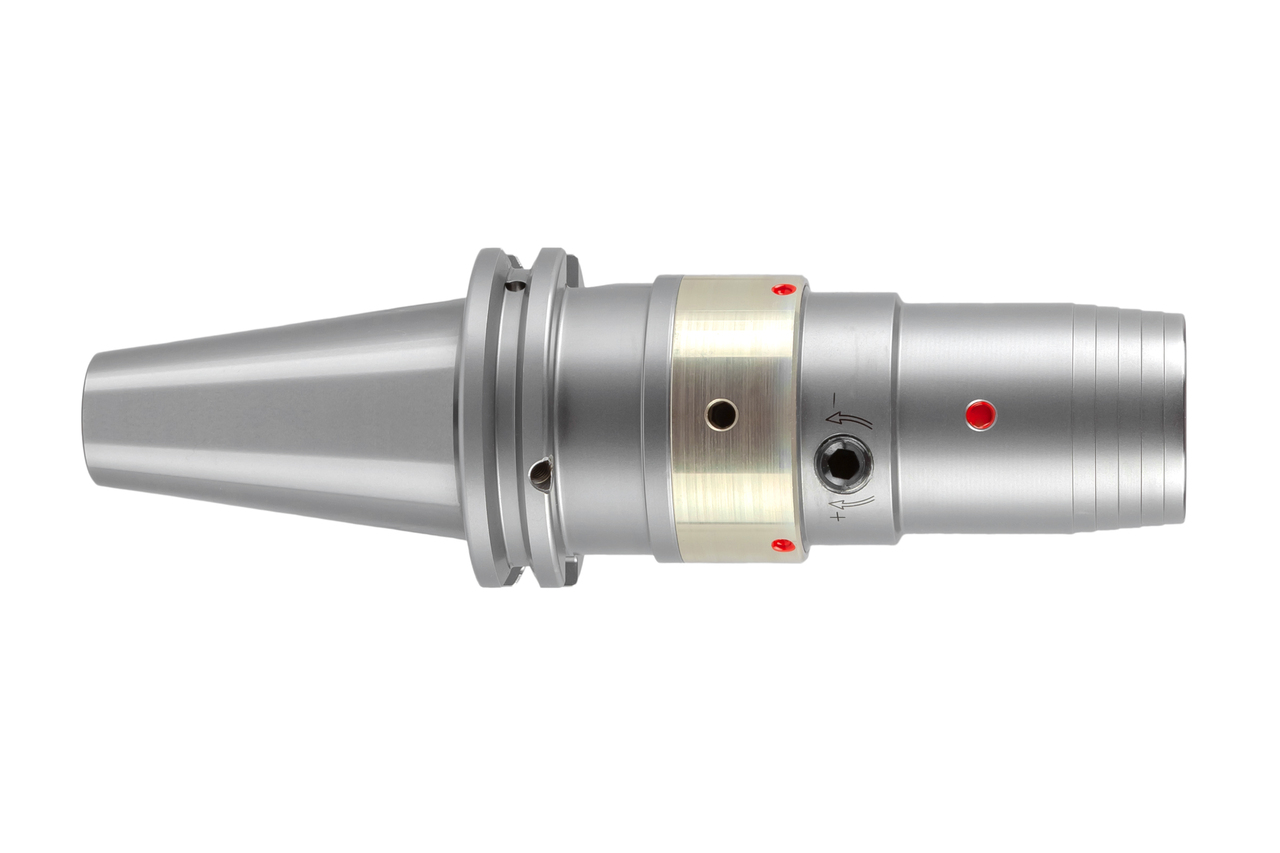

  • Product image HydroChuck Compensation

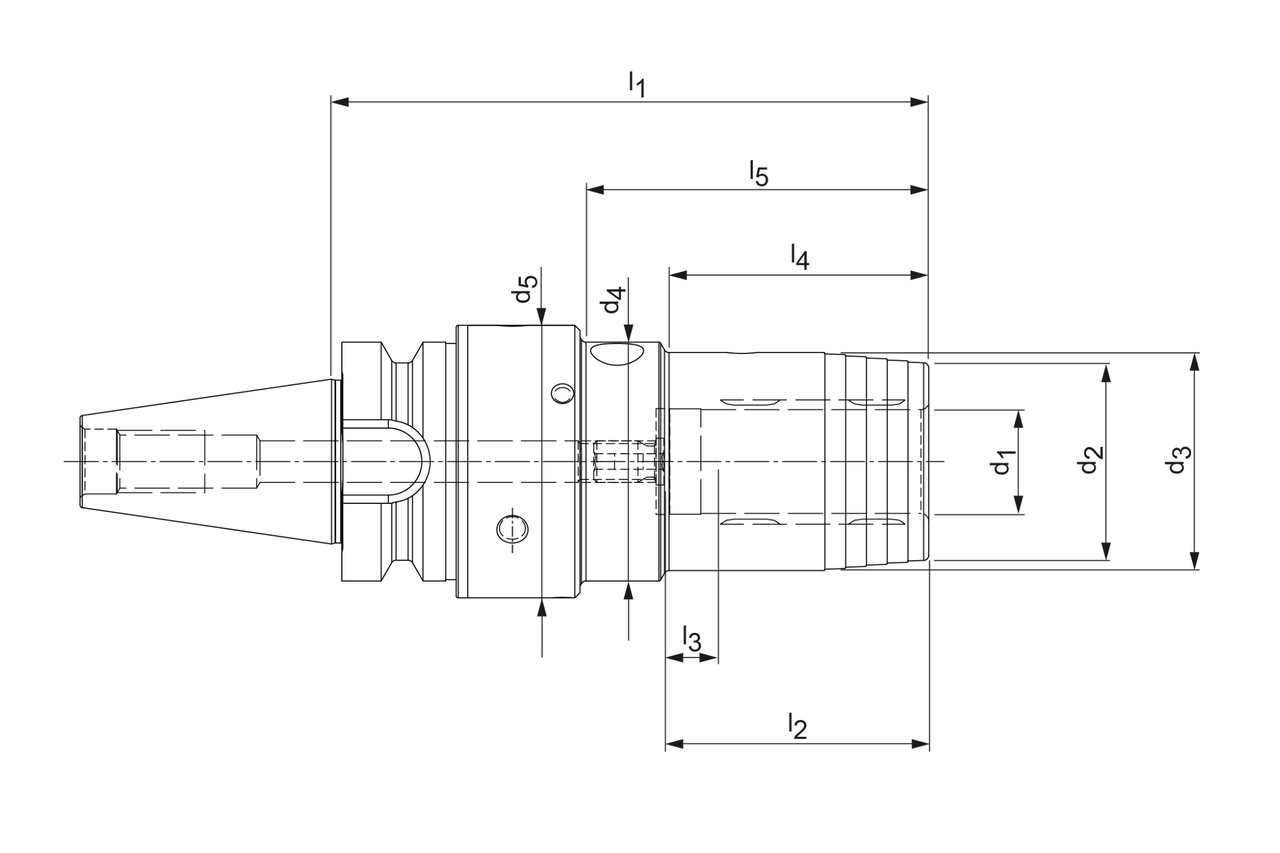

  • Produktzeichnung HydroChuck Compensation

Durchmesser d1 (mm)

32.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30631608

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time. With compensation technology: alignment function on the chuck for radial alignment option to compensate for concentricity errors in the overall system.

Technische Daten

Maschinenschnittstelle
SK (Form AD/AF)
Größe Maschinenschnittstelle
50
Technologie
HydroChuck

d1

32   mm
d2
59   mm
d3
63   mm
d4
64   mm
d5
70   mm

l1

125   mm
l2
61   mm
l3
10   mm
l4
60   mm
l5
74.5   mm
Kühlmittelzufuhr
intern und seitlich kombiniert
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
axiale Längeneinstellung
Materialgruppe
CY

Downloads

Technische Zeichnung in dxf
30631608_606356912-000-01-ED1.DXF
Technische Zeichnung in tif
30631608_606356912-000-01-ED1.TIF
3D Hüllkontur in stp
30631608_606658582-000-01-E43.STP
Technical drawing in dxf
30631608_606356912-000-01-ed1.dxf
Tool contour in stp
30631608_606658582-000-01-E43.stp
Technical drawing in tif
30631608_606356912-000-01-ed1.tif
