HydroChuck Compensation

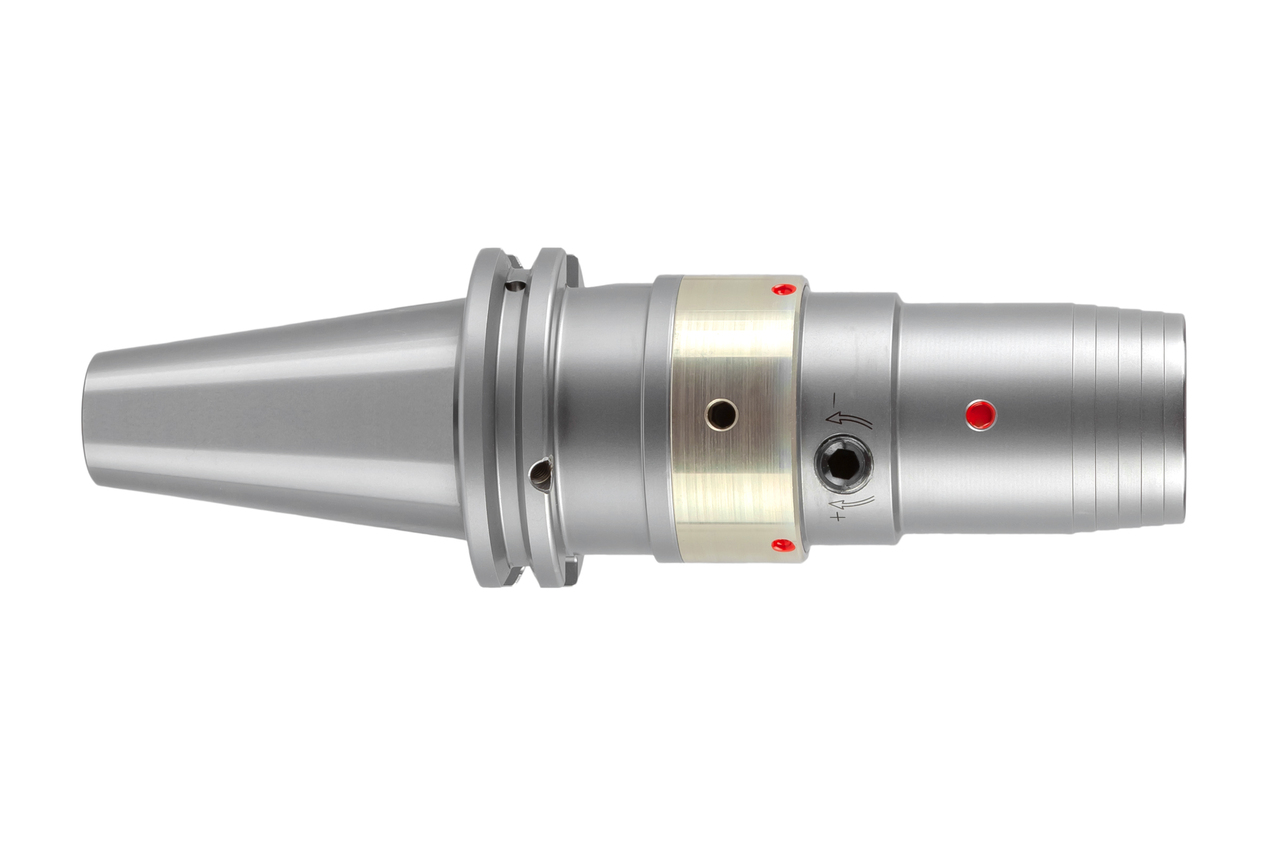

  • Product image HydroChuck Compensation

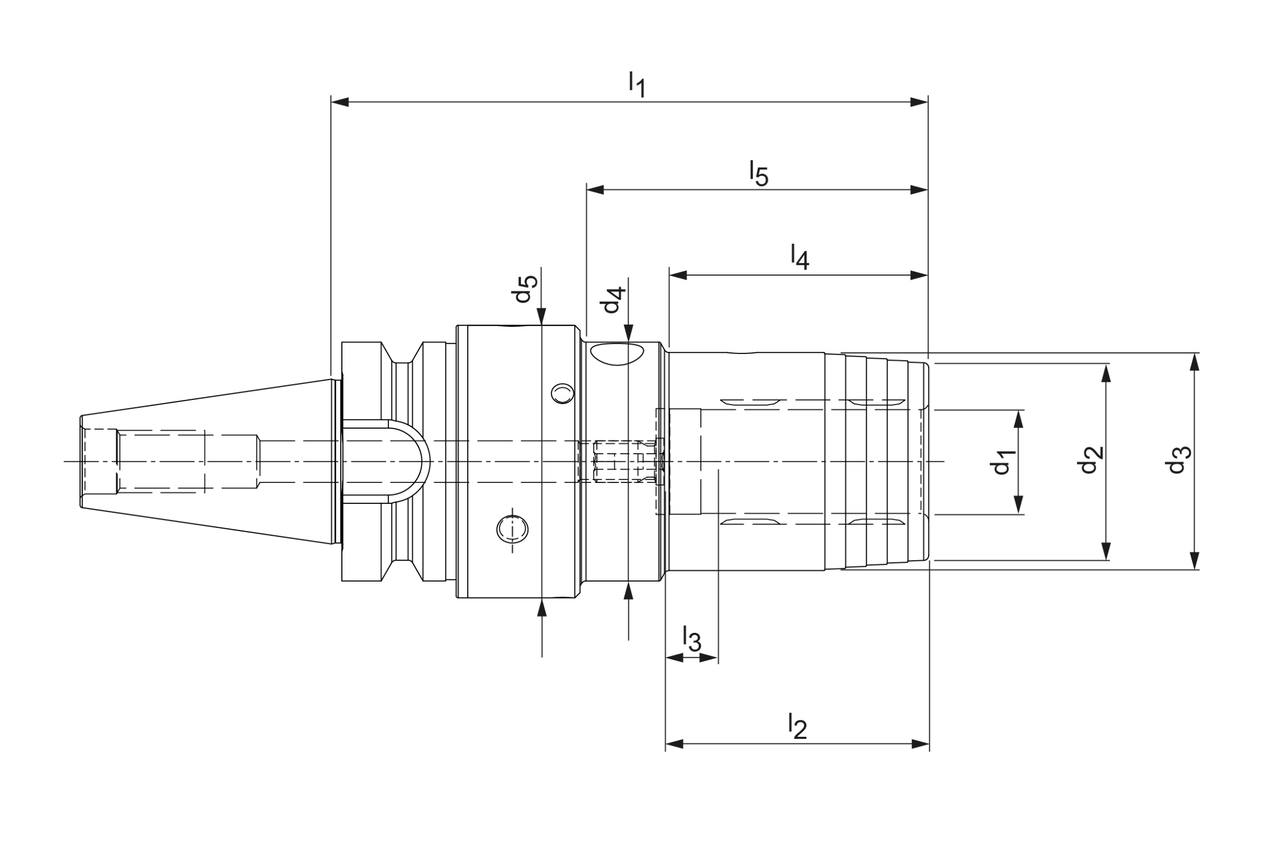

  • Technical drawing HydroChuck Compensation

Durchmesser d1 (mm)

20.0

Your unit price

*Login erforderlich

Article

30631601

Quantity

Added to Your Shopping Cart

Product description

The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time. With compensation technology: alignment function on the chuck for radial alignment option to compensate for concentricity errors in the overall system.

Technical specifications

Maschinenschnittstelle
SK (Form AD/AF)
Größe Maschinenschnittstelle
50
Technologie
HydroChuck

d1

20   mm
d2
38   mm
d3
42   mm
d4
46   mm
d5
52.5   mm

l1

110   mm
l2
51   mm
l3
10   mm
l4
50   mm
l5
67   mm
Kühlmittelzufuhr
intern und seitlich kombiniert
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
axiale Längeneinstellung
Materialgruppe
CY

Downloads

Technische Zeichnung in dxf
30631601_606356910-000-01-ED1.DXF
Technische Zeichnung in tif
30631601_606356910-000-01-ED1.TIF
3D Hüllkontur in stp
30631601_606658580-000-01-E43.STP
Technical drawing in dxf
30631601_606356910-000-01-ed1.dxf
Tool contour in stp
30631601_606658580-000-01-E43.stp
Technical drawing in tif
30631601_606356910-000-01-ed1.tif
