Hydro Chuck MHC, Standard
Diameter d1 (mm)
8.0
Your unit price
*Login requiredProduct description

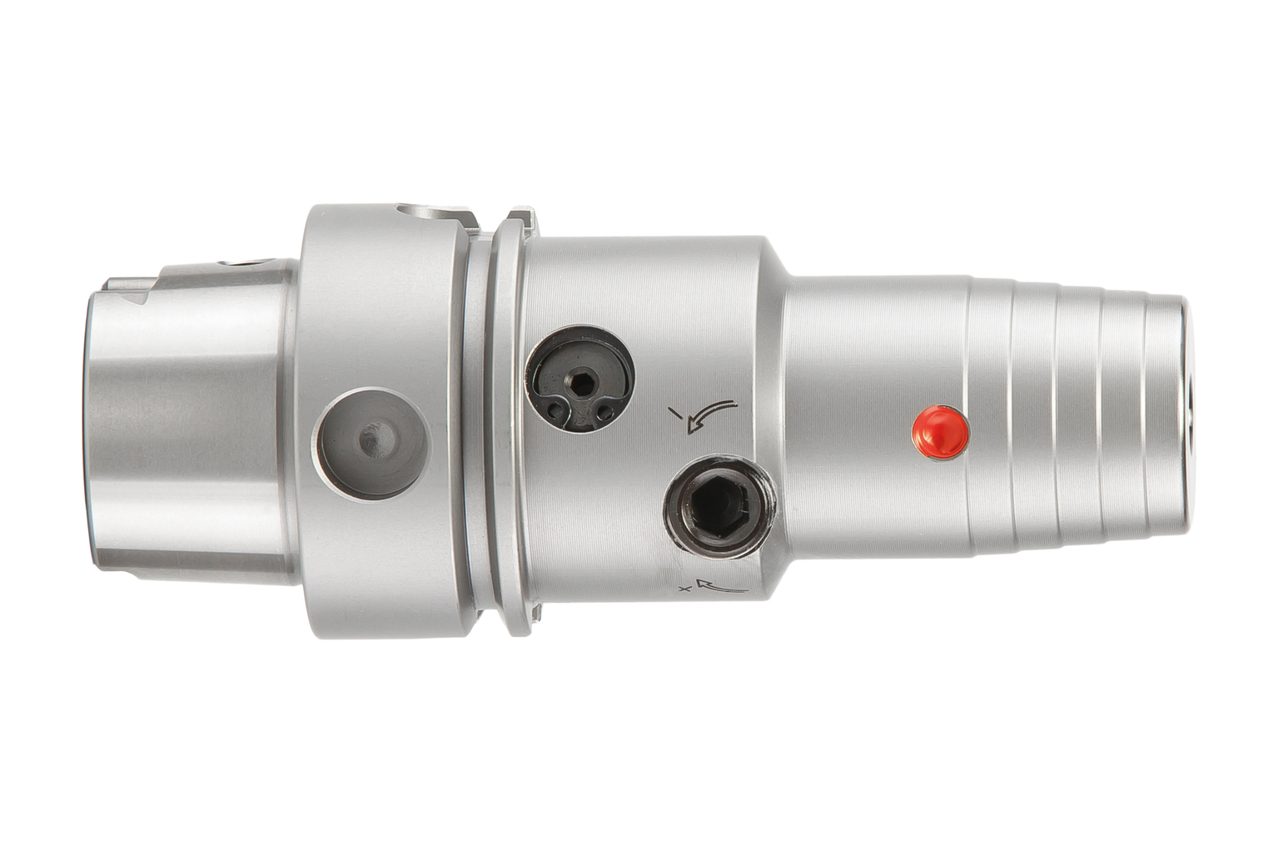

The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time.
Technical specifications
- Machine connection
- HSK-A
- Size machine connection
- 100
- Technology
- HydroChuck

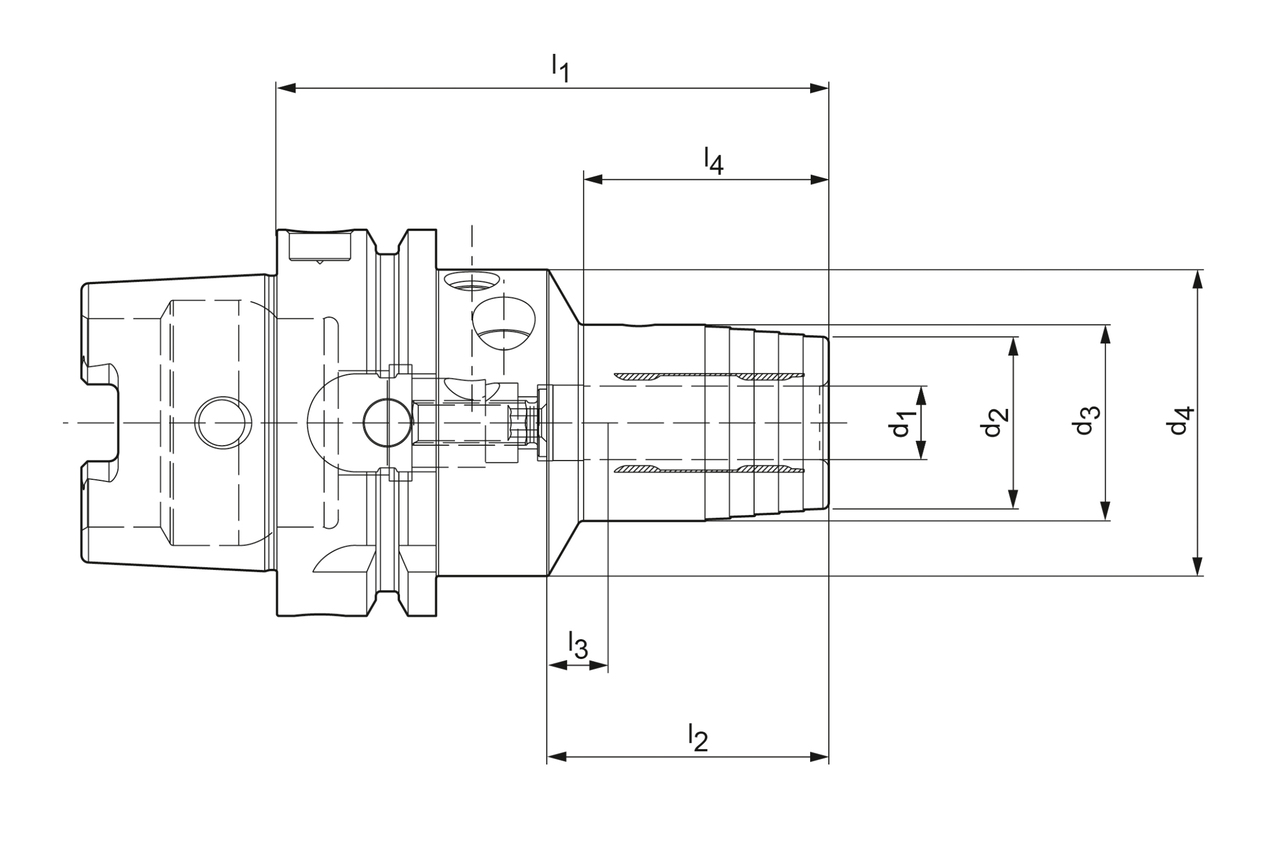

- d1
- 8 mm
- d2
- 24 mm
- d3
- 28 mm
- d4
- 63 mm
- d5
- 0 mm
- l1
- 85 mm
- l2
- 37 mm
- l3
- 10 mm
- l4
- 33 mm
- l5
- 0 mm
- Coolant supply
- internal
- Coolant outlet
- axial concentric
- Length adjustment
- radial
- Material group
- CY
Downloads
- Technical drawing in tif
- 30349216_283682-000-00-ED1.TIF
- Technical drawing in dxf
- 30349216_283682-000-00-ED1.DXF
- Technical drawing in tif
- 30349216_606851429-000-00-ED1.TIF
- Technical drawing in dxf
- 30349216_606851429-000-00-ED1.DXF
- 3D envelope in stp
- 30349216_606585807-000-00-E43.STP
