Hydro Chuck MHC, Standard

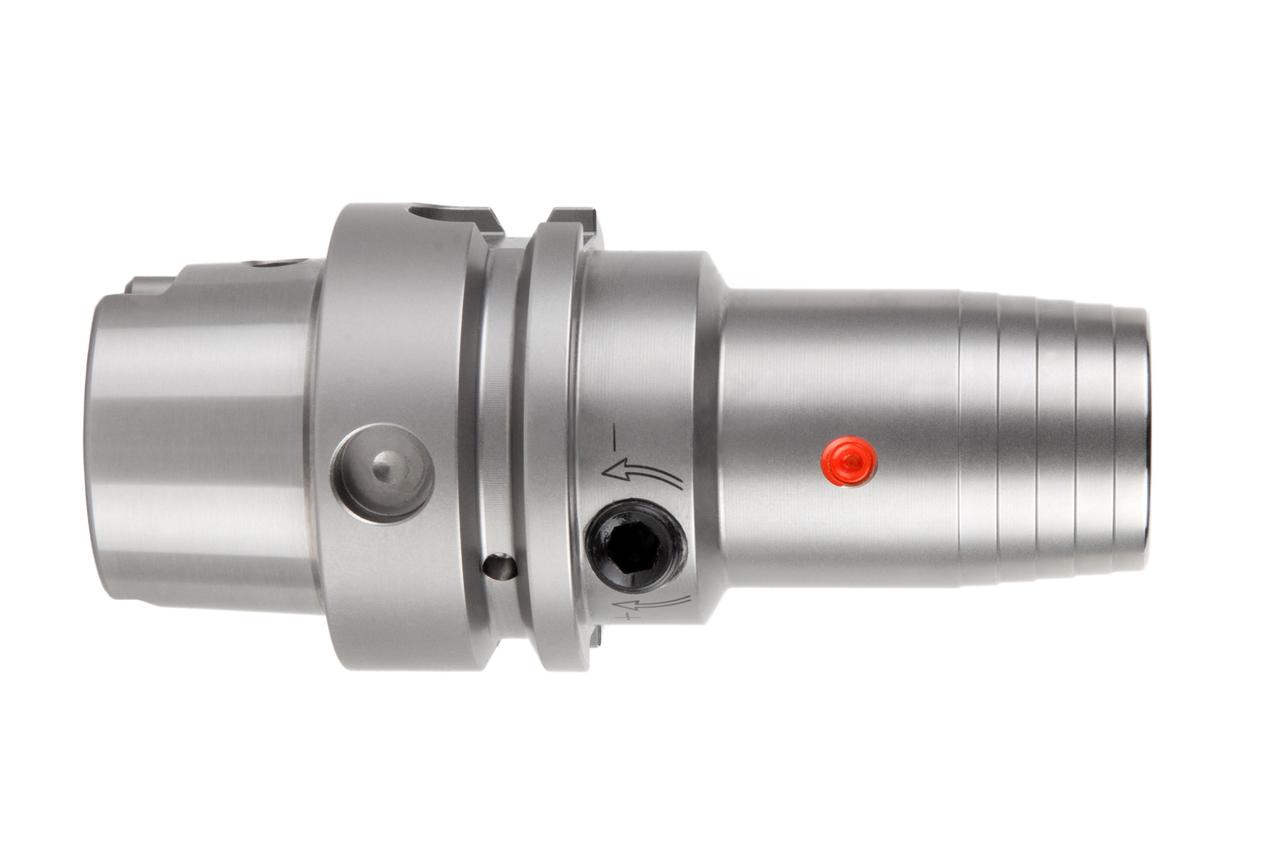

  • Product image Hydro Chuck MHC, Standard

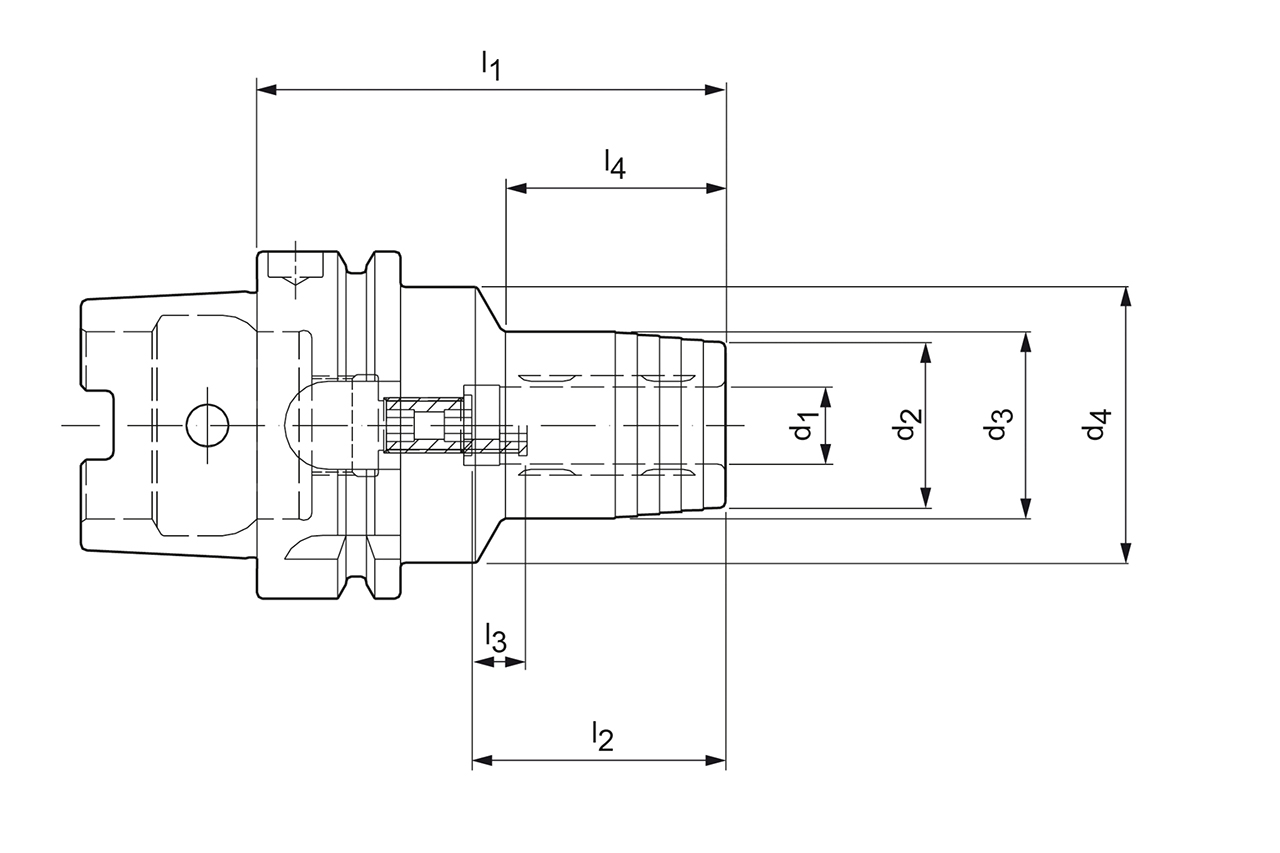

  • Technical drawing Hydro Chuck MHC, Standard

Diameter d1 (mm)

20.0

Your unit price

*Login required

Article

30273808

Quantity

Added to Your Shopping Cart

Product description

The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time.

Technical specifications

Machine connection
HSK-A
Size machine connection
63
Technology
HydroChuck
d1
20   mm
d2
38   mm
d3
42   mm
d4
50   mm
d5
0   mm
l1
120   mm
l2
51   mm
l3
10   mm
l4
78   mm
l5
0   mm
Coolant supply
internal
Coolant outlet
axial concentric
Length adjustment
axial
Material group
CY

Downloads

3D envelope in stp
30273808_607132849-000-00-E43.STP
Technical drawing in dxf
30273808_388798-000-01-ED1.DXF
Technical drawing in tif
30273808_388798-000-01-ED1.TIF
