High Torque Chuck HTC, 3° slim design
Diameter d1 (mm)
6.0
Your unit price
*Login requiredProduct description

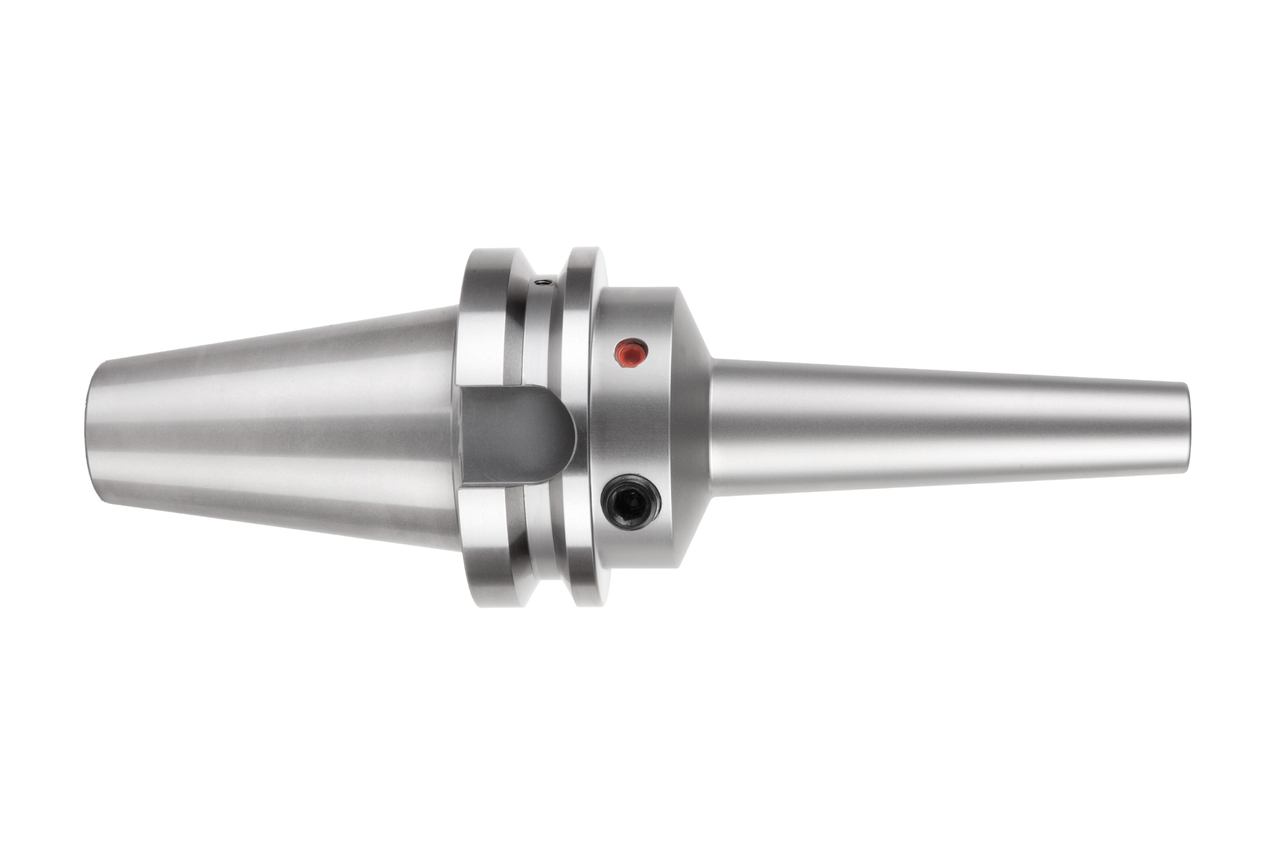

The HighTorque Chuck HTC in the slim design allows the use of hydraulic expansion clamping technology even in contour-critical applications. Innovative manufacturing through additive manufacturing enables the best surface qualities with high process reliability at the same time.
Technical specifications
- Machine connection
- BT (Form JD/JF)
- Size machine connection
- 40
- Technology
- HighTorque Chuck
- d1
- 6 mm
- d2
- 16 mm
- d3
- 37.9 mm
- d4
- 49.5 mm
- d5
- 0 mm
- l1
- 200 mm
- l2
- 37 mm
- l3
- 10 mm
- l4
- 152.5 mm
- l5
- 0 mm
- Coolant supply
- internally and laterally combined
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CY
Downloads

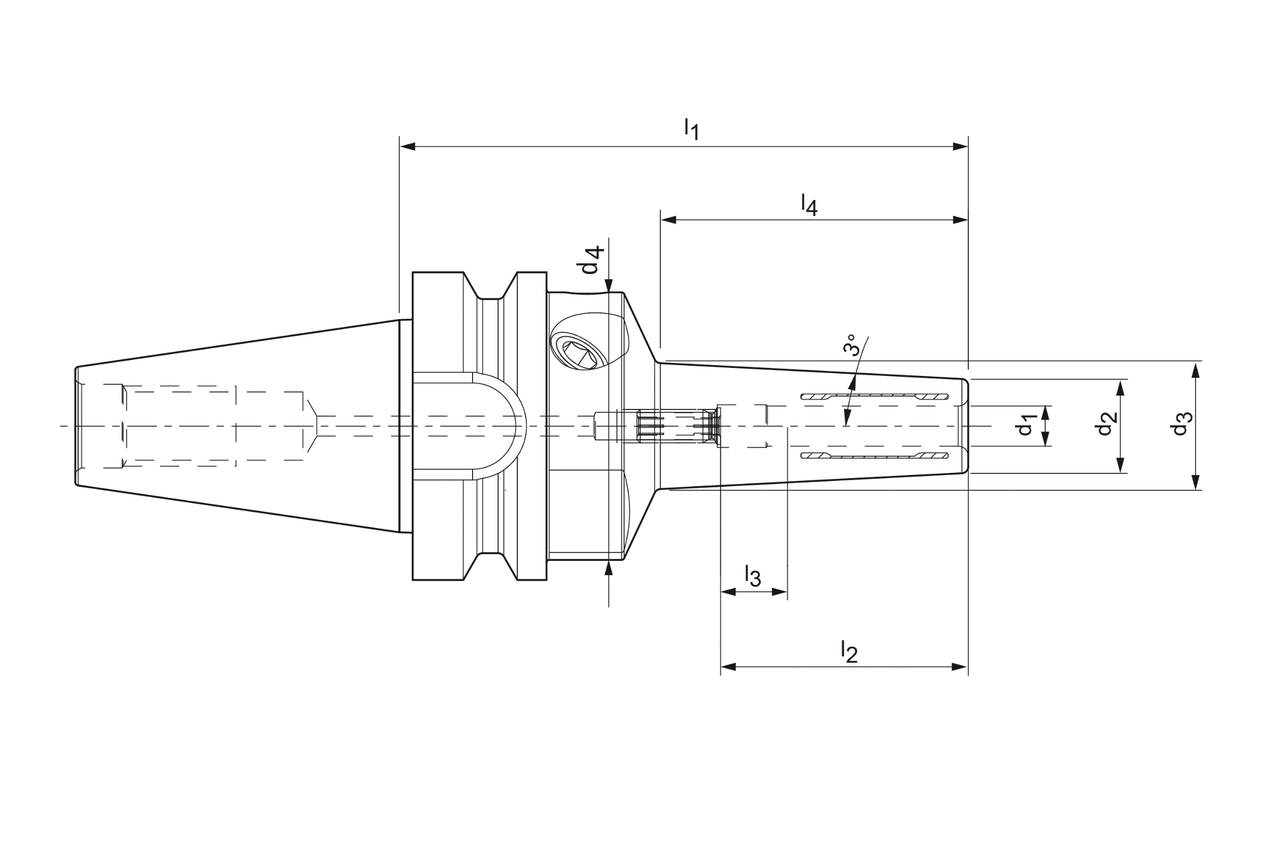

- Technical drawing in dxf
- 30858286_606770356-000-00-ED1.DXF
- Technical drawing in tif
- 30858286_606770356-000-00-ED1.TIF
- 3D envelope in stp
- 30858286_606814612-000-00-E43.STP
