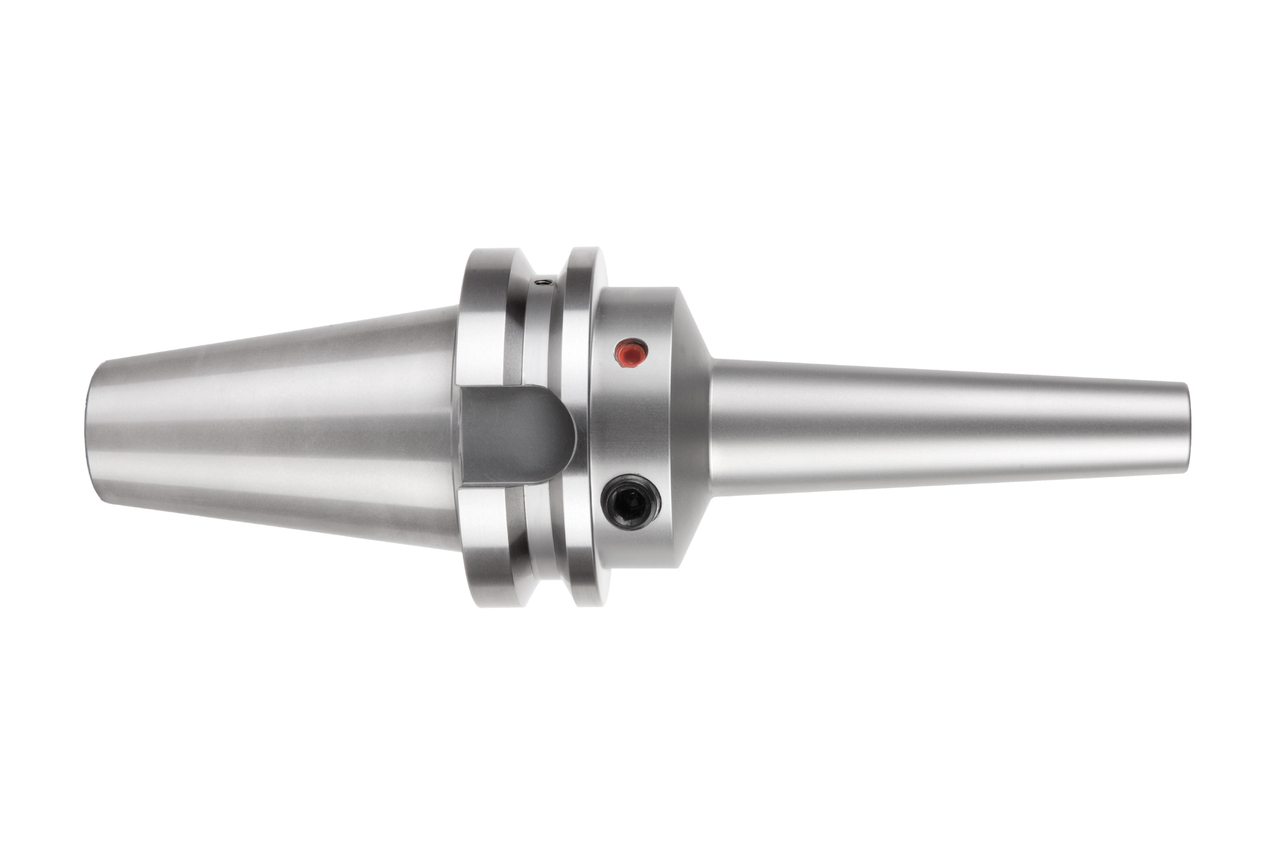

High Torque Chuck HTC, 3° slim design

Diameter d1 (mm)

14.0

Your unit price

*Login required

Article

30819410

Quantity

Added to Your Shopping Cart

Product description

The HighTorque Chuck HTC in the slim design allows the use of hydraulic expansion clamping technology even in contour-critical applications. Innovative manufacturing through additive manufacturing enables the best surface qualities with high process reliability at the same time.

Technical specifications

Machine connection: BT (Form JD)
Size machine connection: 30
Technology: HighTorque Chuck

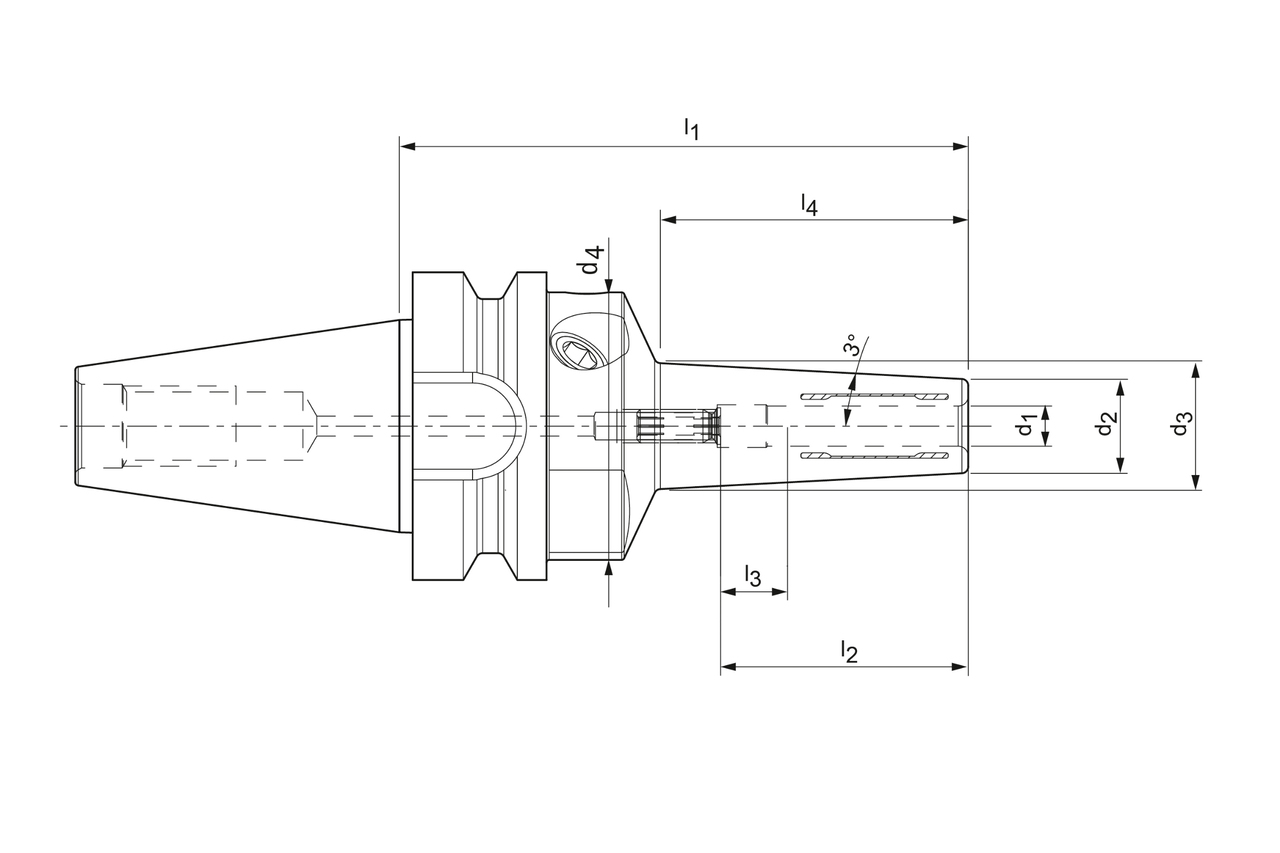

d1: 14 mm
d2: 24 mm
d3: 29 mm
d4: 40 mm
d5: 0 mm
l1: 85 mm
l2: 46 mm
l3: 10 mm
l4: 47 mm
l5: 0 mm
Coolant supply: internal
Coolant outlet: axial concentric
Length adjustment: axial
Material group: CY
