High Torque Chuck HTC, 3° slim design
Diameter d1 (mm)
3.0
Your unit price
*Login requiredProduct description

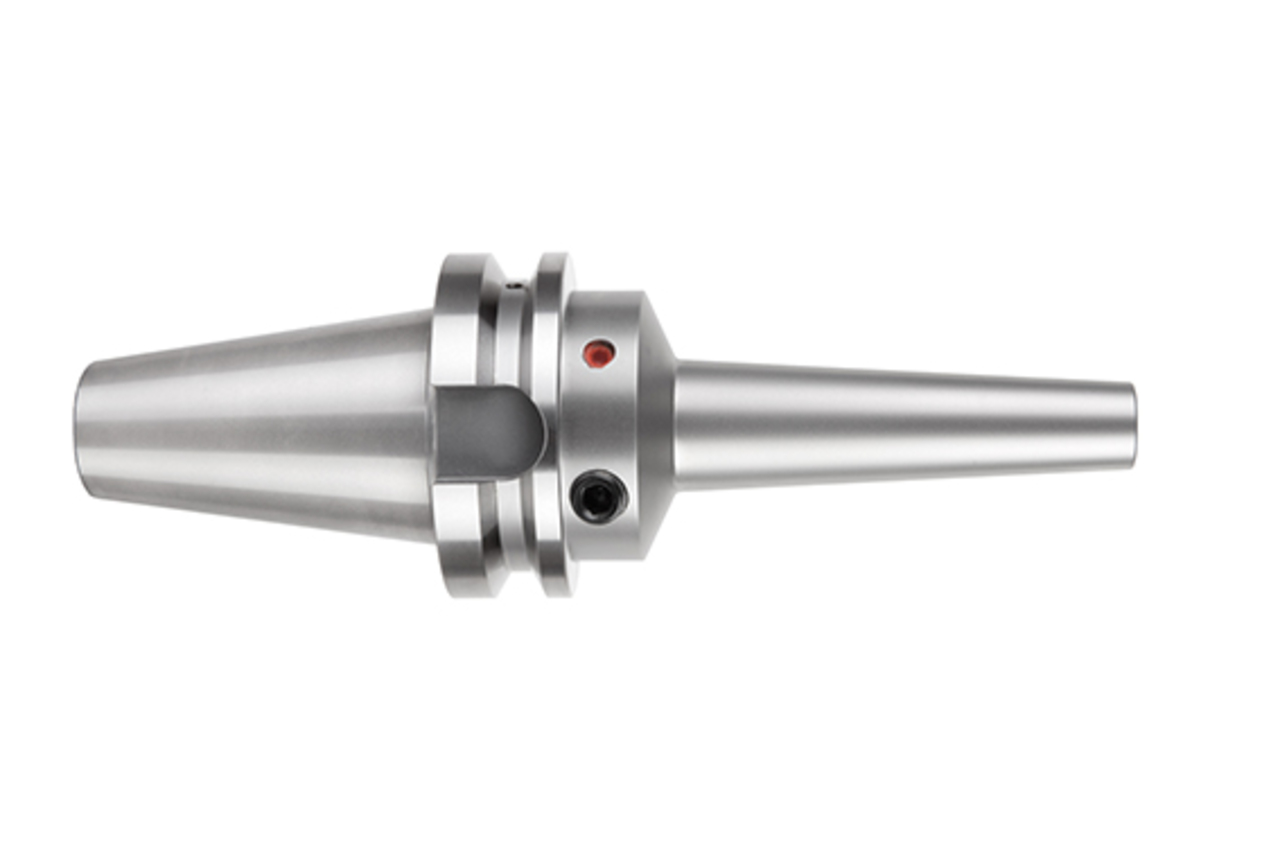

The HighTorque Chuck HTC in the slim design allows the use of hydraulic expansion clamping technology even in contour-critical applications. Innovative manufacturing through additive manufacturing enables the best surface qualities with high process reliability at the same time.
Technical specifications
- Machine connection
- BT (Form JD/JF)
- Size machine connection
- 40
- Technology
- HighTorque Chuck

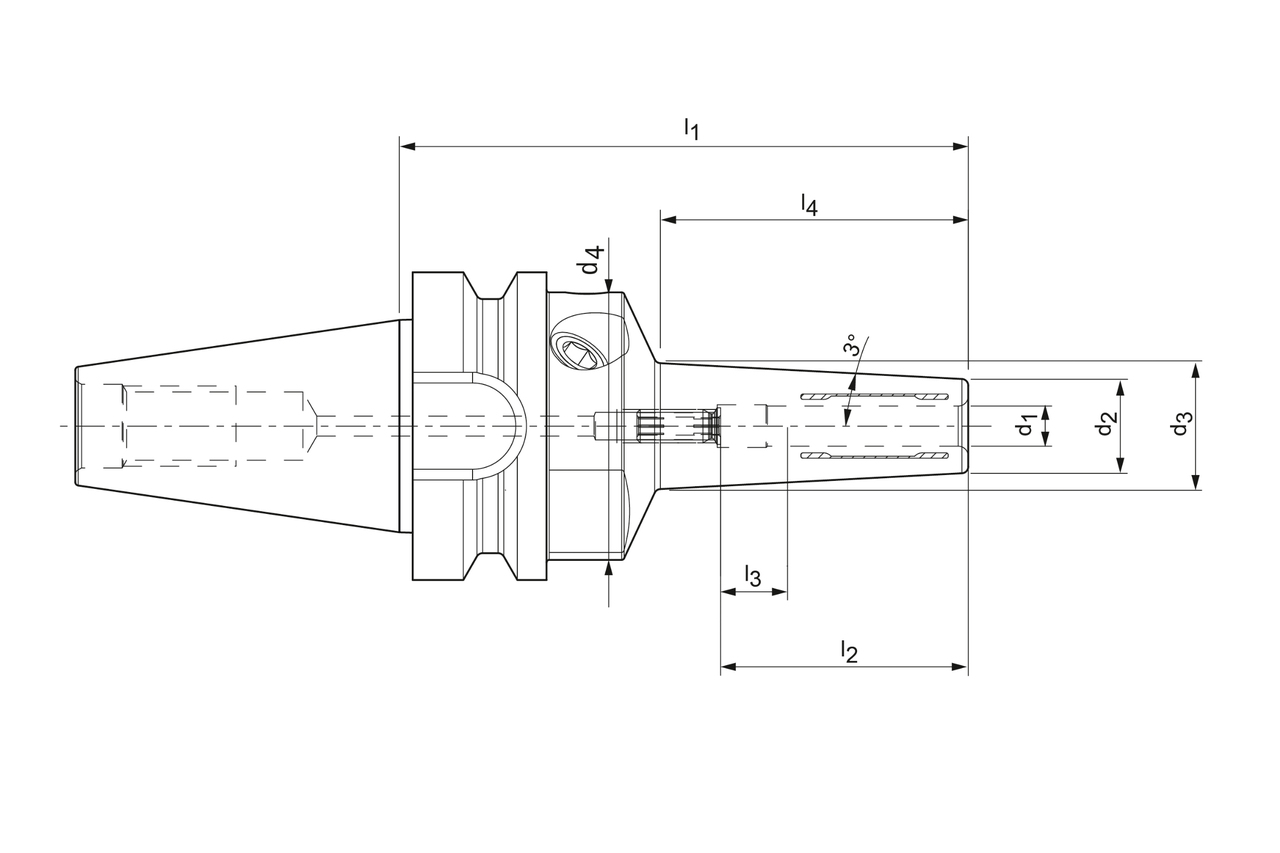

- d1
- 3 mm
- d2
- 9 mm
- d3
- 16.6 mm
- d4
- 49.5 mm
- l1
- 120 mm
- l2
- 28 mm
- l3
- 16 mm
- l4
- 72 mm
- Coolant supply
- internally and laterally combined
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CY
- Specification
- HTC-BT040-03-120-3-0-A
