Adapter

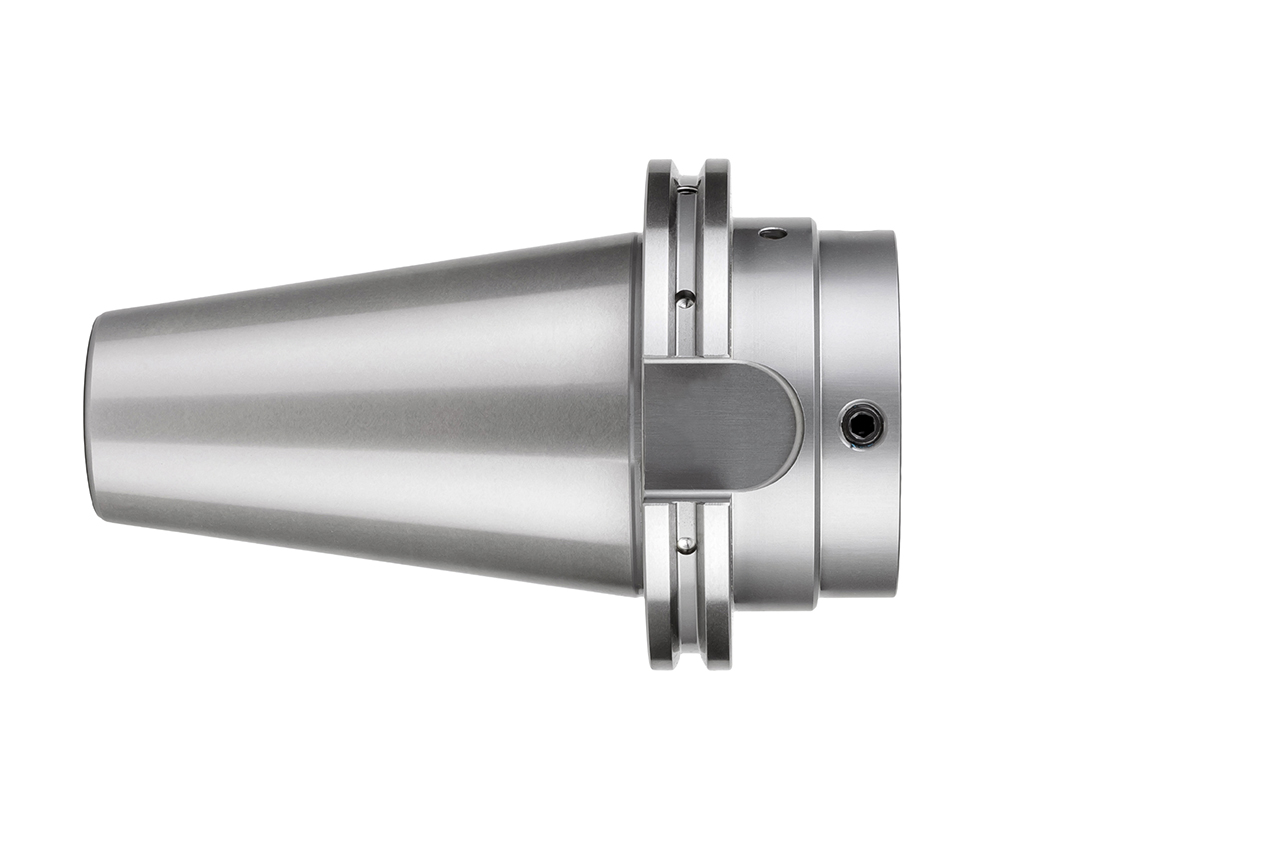

  • Product image Adapter

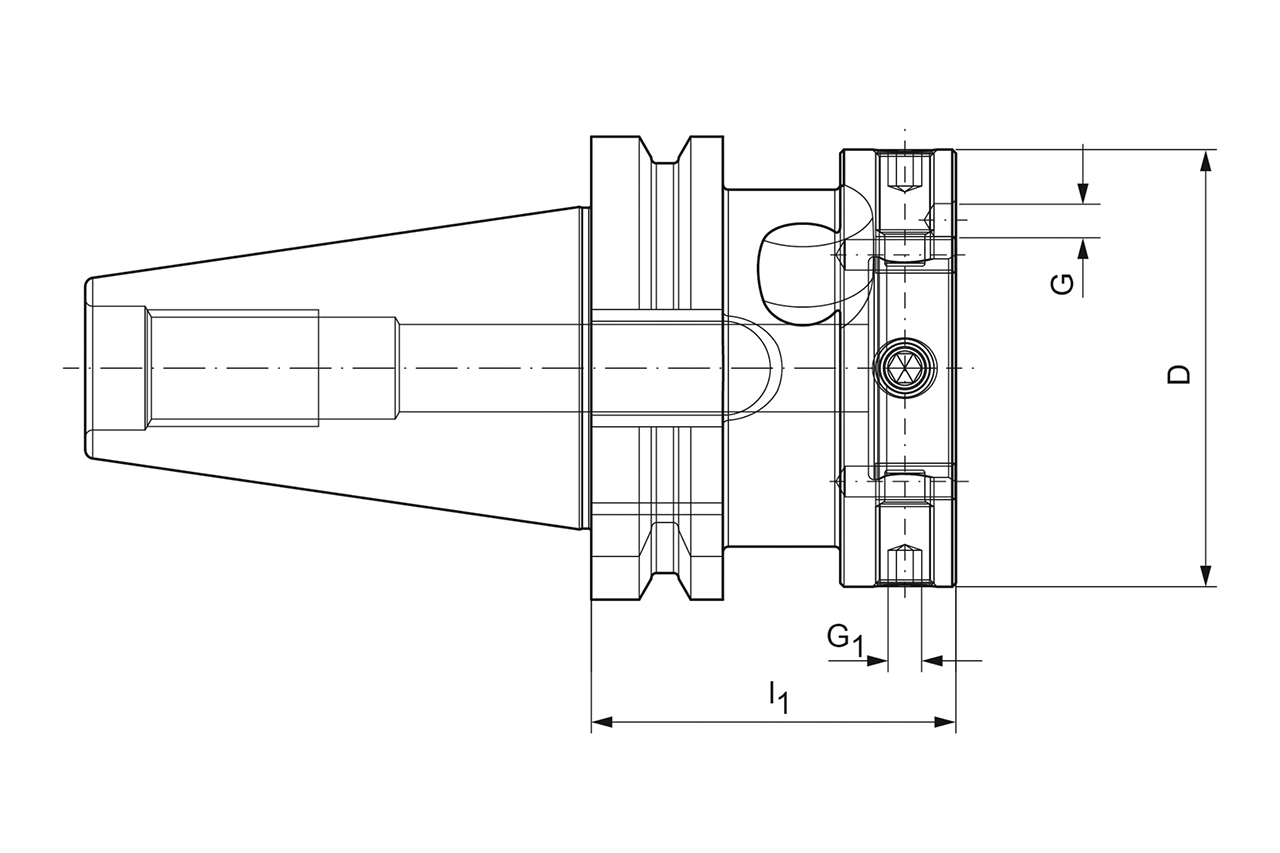

  • Technical drawing Adapter

Durchmesser d1 (mm)

70.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30630797

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The MAPAL modular adapter allows µm-precise adjustment of the runout of tools and tool holders (available as hydraulic and thermo chucks) with a modular shank, as well as adaptations with a flange adapter. Accordingly, it supports achieving the highest surface qualities as well as cutting parameters and allows highest form and positional tolerances.

Technische Daten

Maschinenschnittstelle
SK (FC)
Größe Maschinenschnittstelle
40
Technologie
Adapter

d1

70   mm
d2
70   mm

l1

50   mm
l2
14.9   mm
Kühlmittelzufuhr
intern
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
ohne Längeneinstellung
Materialgruppe
CA
Spezifikation
OS-AD-AD-FC040-MOD070-050-11

Downloads

Technische Zeichnung in tif
30630797_606355608-000-00-ED1.TIF
Technische Zeichnung in tif
30630797_606355608-001-00-ED1.TIF
3D Hüllkontur in stp
30630797_606404884-000-00-E43.STP
