Adapter

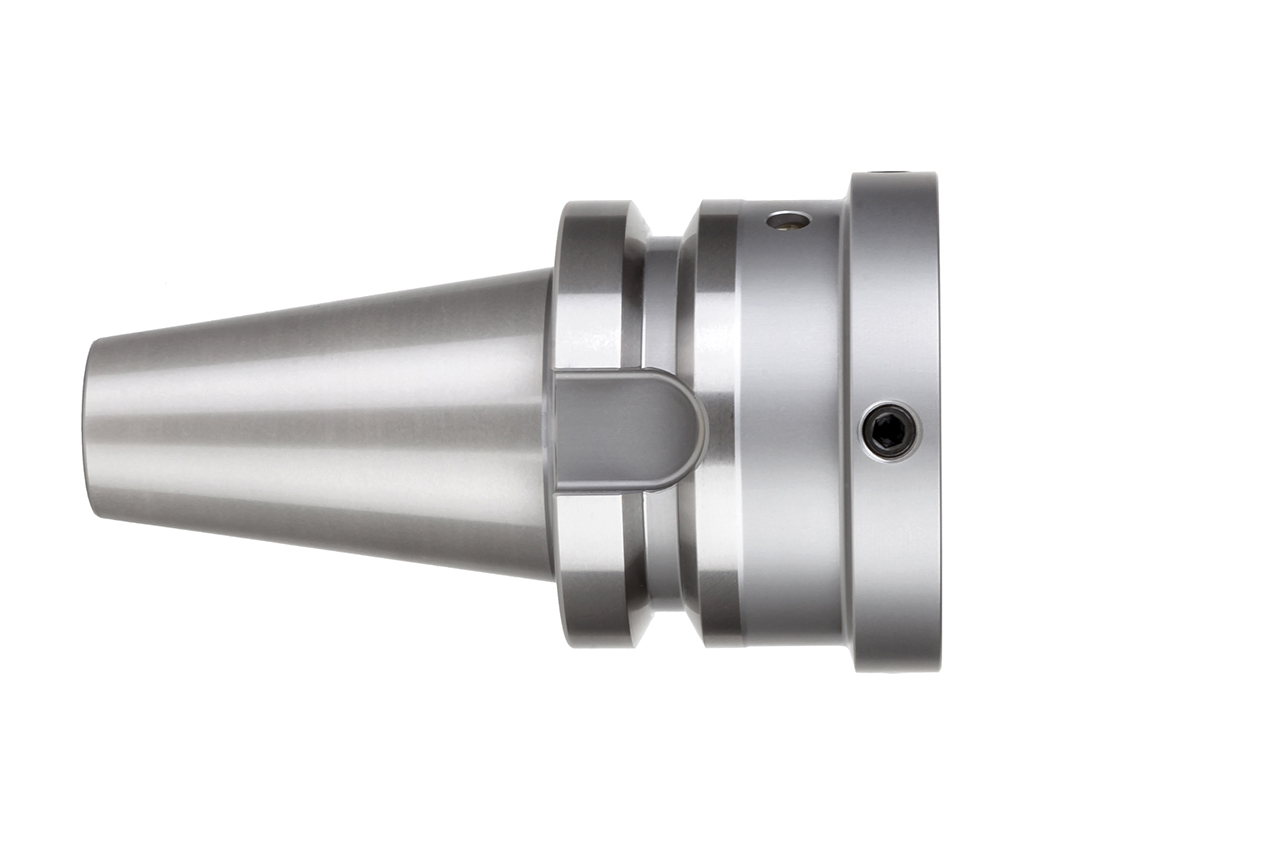

  • Product image Adapter

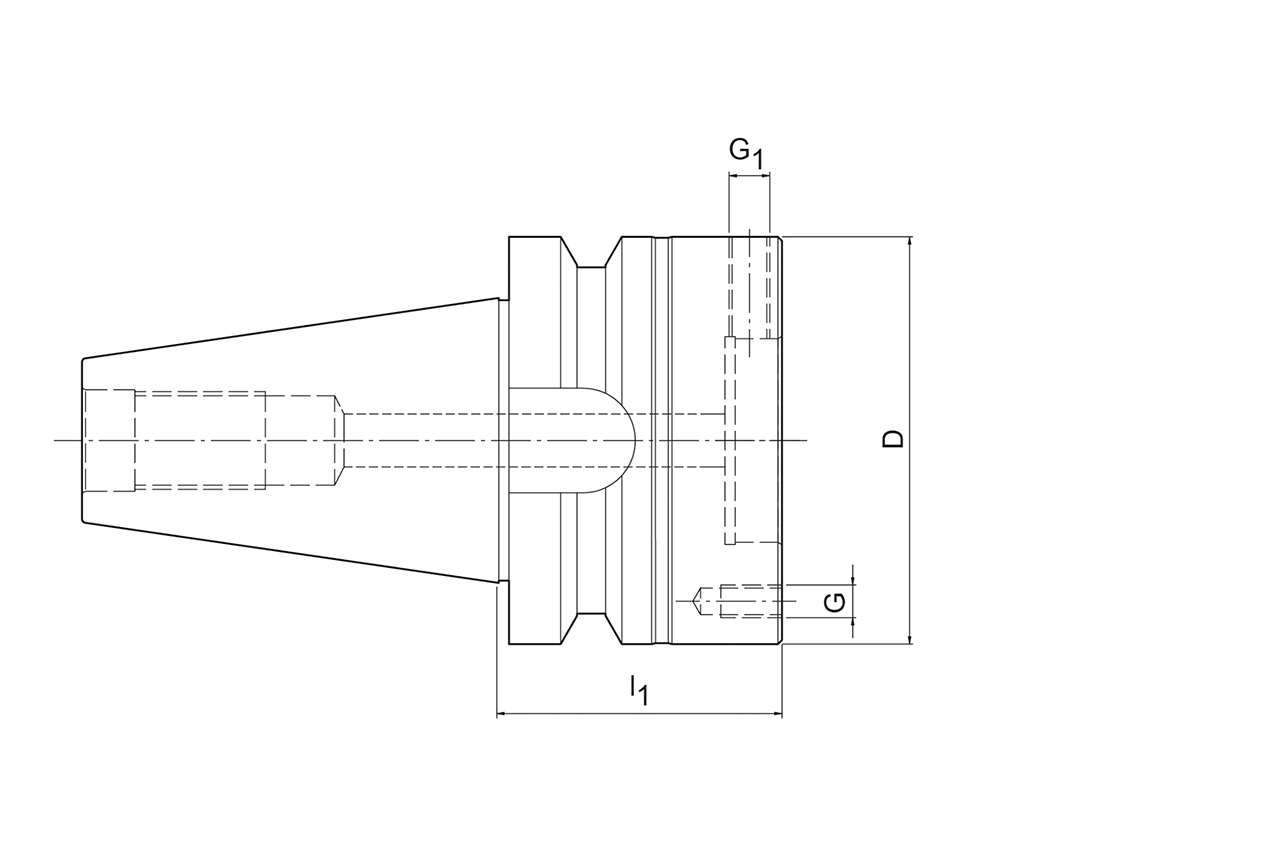

  • Technical drawing Adapter

Durchmesser d1 (mm)

70.0

Your unit price

*Login erforderlich

Article

30320085

Quantity

Added to Your Shopping Cart

Product description

The MAPAL modular adapter allows µm-precise adjustment of the runout of tools and tool holders (available as hydraulic and thermo chucks) with a modular shank, as well as adaptations with a flange adapter. Accordingly, it supports achieving the highest surface qualities as well as cutting parameters and allows highest form and positional tolerances.

Technical specifications

Maschinenschnittstelle
BT (Form JD)
Größe Maschinenschnittstelle
30
Technologie
Adapter

d1

70   mm
d2
70   mm

l1

40   mm
Kühlmittelzufuhr
intern
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
ohne Längeneinstellung
Materialgruppe
CA
Spezifikation
OS-AD-BT030-MOD070-040-11

Downloads

3D Hüllkontur in stp
30320085_606403946-000-00-E43.STP
Technische Zeichnung in tif
30320085_286298-000-04-ED1.TIF
Technische Zeichnung in dxf
30320085_286298-000-04-ED1.DXF
Technische Zeichnung in tif
30320085_286298-001-04-ED1.TIF
Technische Zeichnung in dxf
30320085_286298-001-04-ED1.DXF
