Adapter
Diameter d1 (mm)
100.0
Your unit price
*Login requiredProduct description

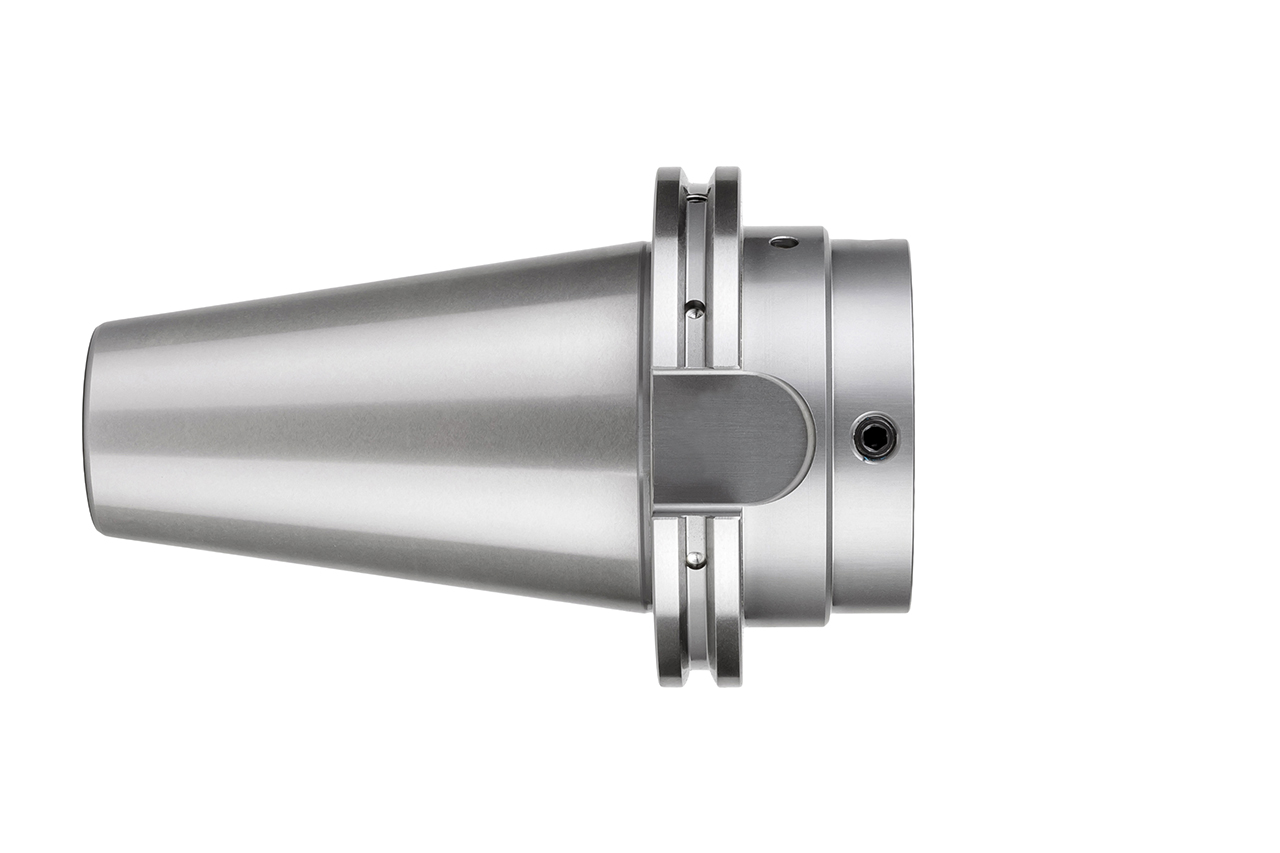

The MAPAL modular adapter allows µm-precise adjustment of the runout of tools and tool holders (available as hydraulic and thermo chucks) with a modular shank, as well as adaptations with a flange adapter. Accordingly, it supports achieving the highest surface qualities as well as cutting parameters and allows highest form and positional tolerances.
Technical specifications
- Machine connection
- SK (Form AD/AF)
- Size machine connection
- 40
- Technology
- Adapter
- d1
- 100 mm
- d2
- 100 mm
- d3
- 49 mm
- l1
- 60 mm
- l2
- 24.85 mm
- Coolant supply
- internally and laterally combined
- Coolant outlet
- axial concentric
- Length adjustment
- without length adjustment
- Material group
- CA
Downloads
- Technical drawing in tif
- 10058662_231021-000-02-ED1.TIF
- Technical drawing in dxf
- 10058662_231021-000-02-ED1.DXF
- Technical drawing in tif
- 10058662_231021-001-02-ED1.TIF
- Technical drawing in dxf
- 10058662_231021-001-02-ED1.DXF
- 3D envelope in stp
- 10058662_606403430-000-01-E43.STP
