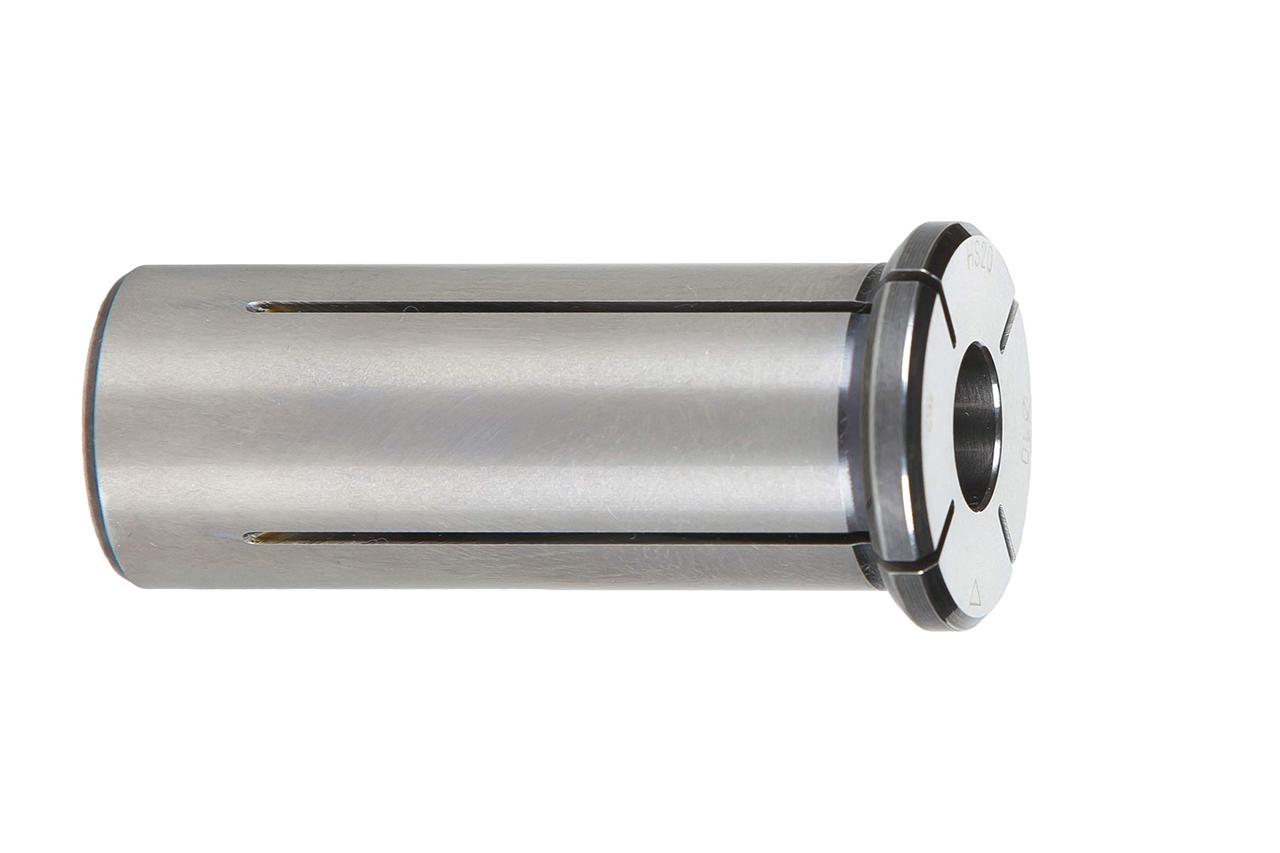

Reducing sleeve for hydraulic chuck
Diameter d1 (mm)
25.0
Your unit price
*Login requiredProduct description
The reduction sleeves for hydraulic expansion chucks enable the secure clamping of cylindrical shank tools. They precisely reduce the clamping diameter, ensuring maximum flexibility and process reliability during tool clamping. This allows tools of different diameters to be used efficiently and reliably.

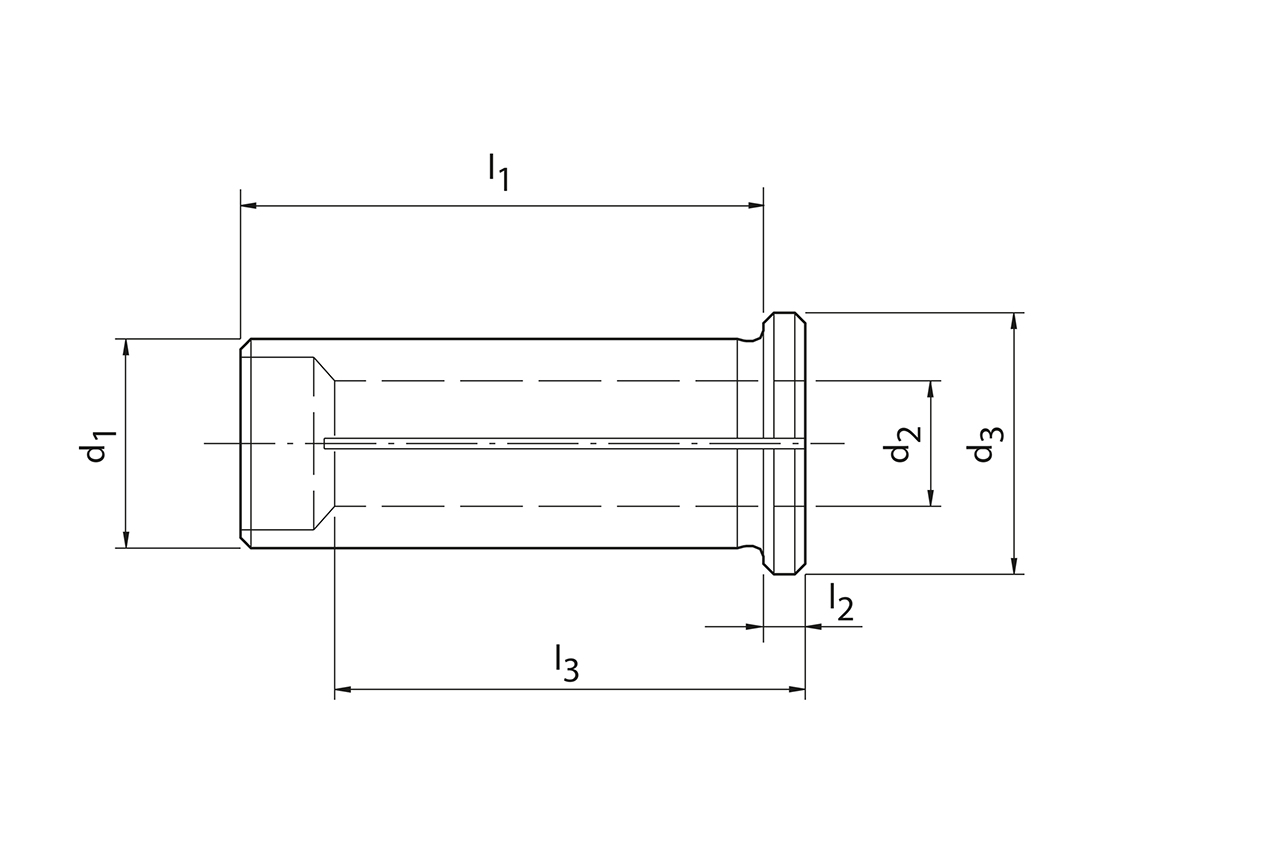

Technical specifications
- Kühlmittel
- Kühlmitteldicht
- d1
- 25 mm
- d2
- 3 mm
- d3
- 30 mm
- l1
- 56 mm
- l2
- 4 mm
- l3
- 29 mm
- l1 + l2
- 60 mm
- Materialgruppe
- CZ
- Spezifikation
- Ø25XØ3X4
Downloads
- 3D Hüllkontur in stp
- 30251081_607362969-000-00-E43.STP
- Technische Zeichnung in dxf
- 30251081_606589435-000-00-EN1.DXF
- Technische Zeichnung in pdf
- 30251081_606589435-000-00-EN1.PDF
