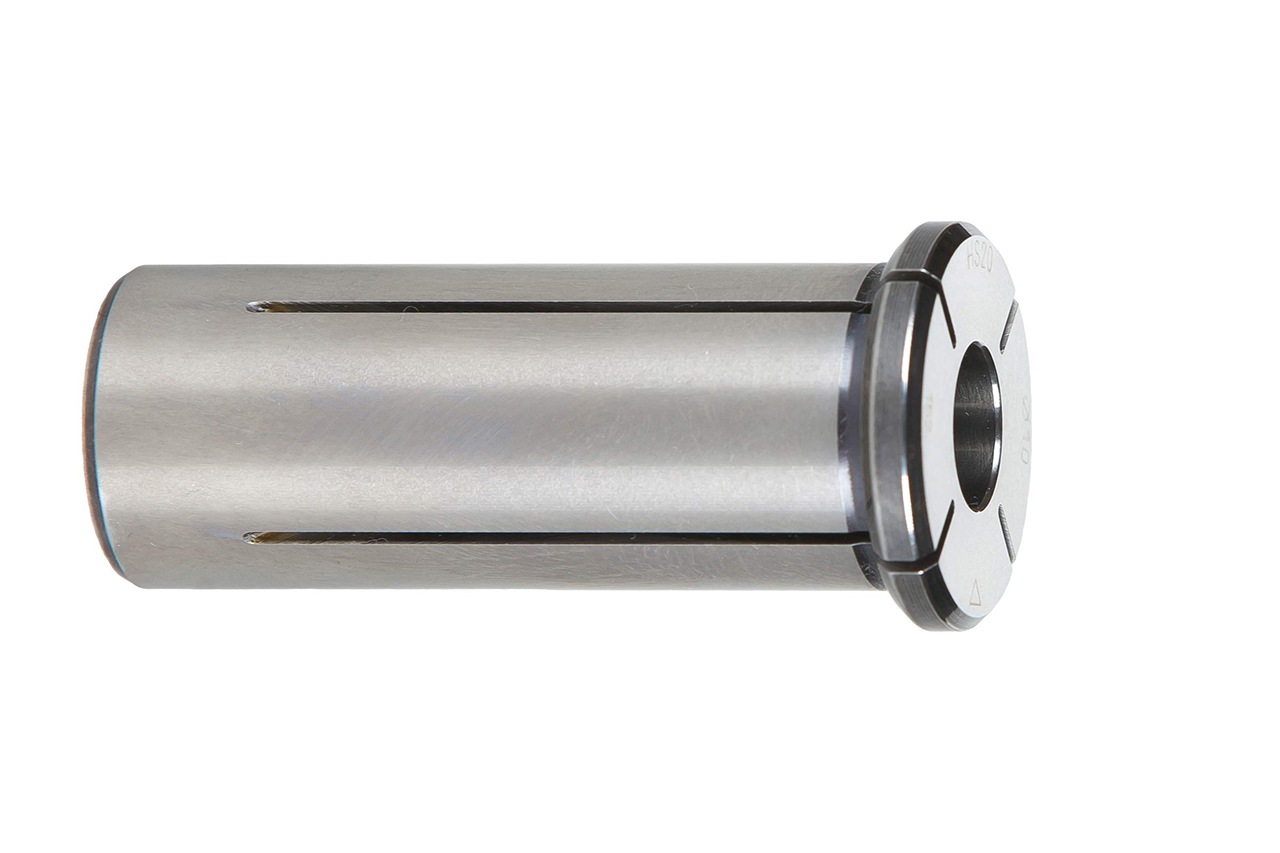

Reducing sleeve for hydraulic chuck
Diameter d1 (mm)
20.0
Your unit price
*Login requiredArticle
30251076
Quantity
Added to Your Shopping Cart
Inform me when article is back in stock
Product description
The reduction sleeves for hydraulic expansion chucks enable the secure clamping of cylindrical shank tools. They precisely reduce the clamping diameter, ensuring maximum flexibility and process reliability during tool clamping. This allows tools of different diameters to be used efficiently and reliably.

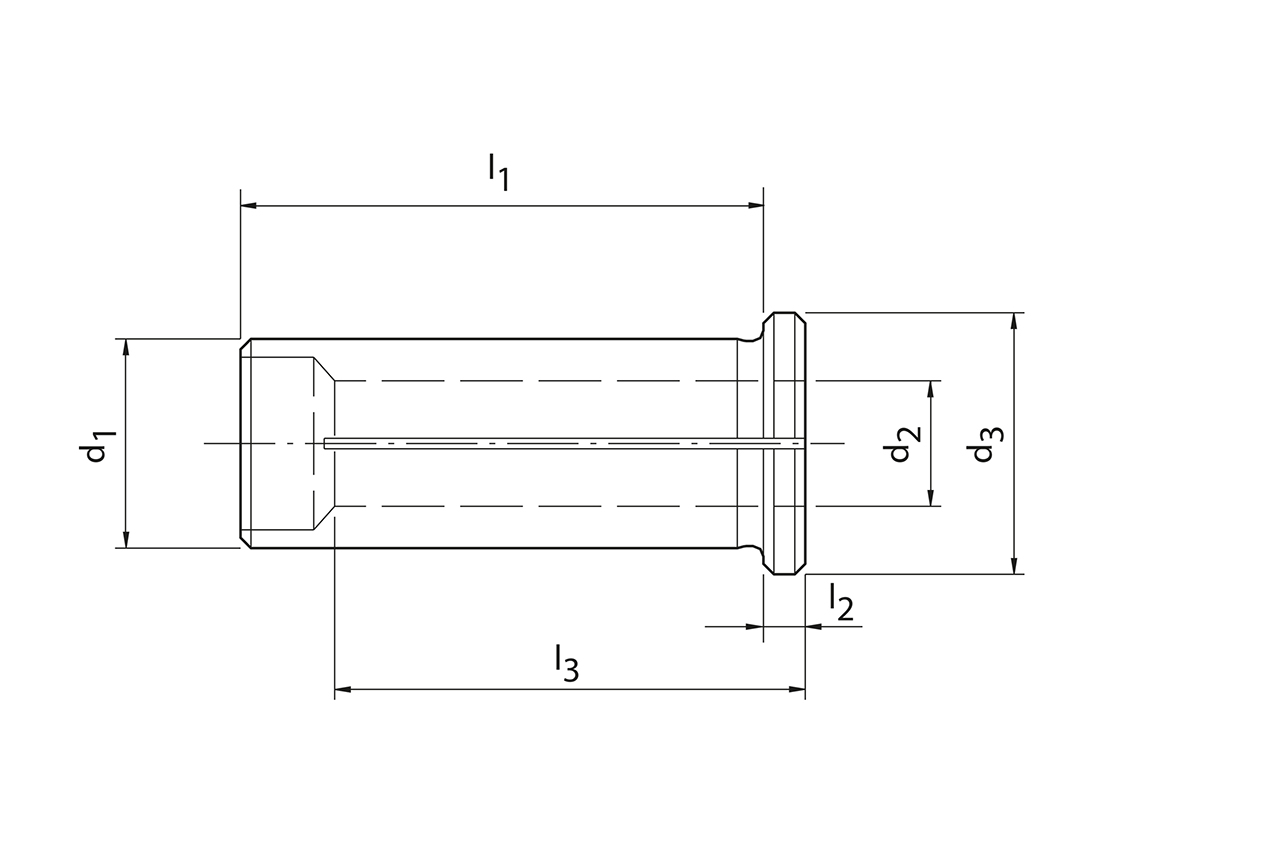

Technical specifications
- Cooling
- coolant seal
- d1
- 20 mm
- d2
- 12 mm
- d3
- 25 mm
- l1
- 50 mm
- l2
- 4 mm
- l3
- 45 mm
- l1 + l2
- 54 mm
- Material group
- CZ
- Specification
- Ø20XØ12X4
Downloads
- 3D envelope in stp
- 30251076_607362951-000-00-E43.STP
- Technical drawing in dxf
- 30251076_606589417-000-00-EN1.DXF
- Technical drawing in pdf
- 30251076_606589417-000-00-EN1.PDF
