KS clamping cartridges

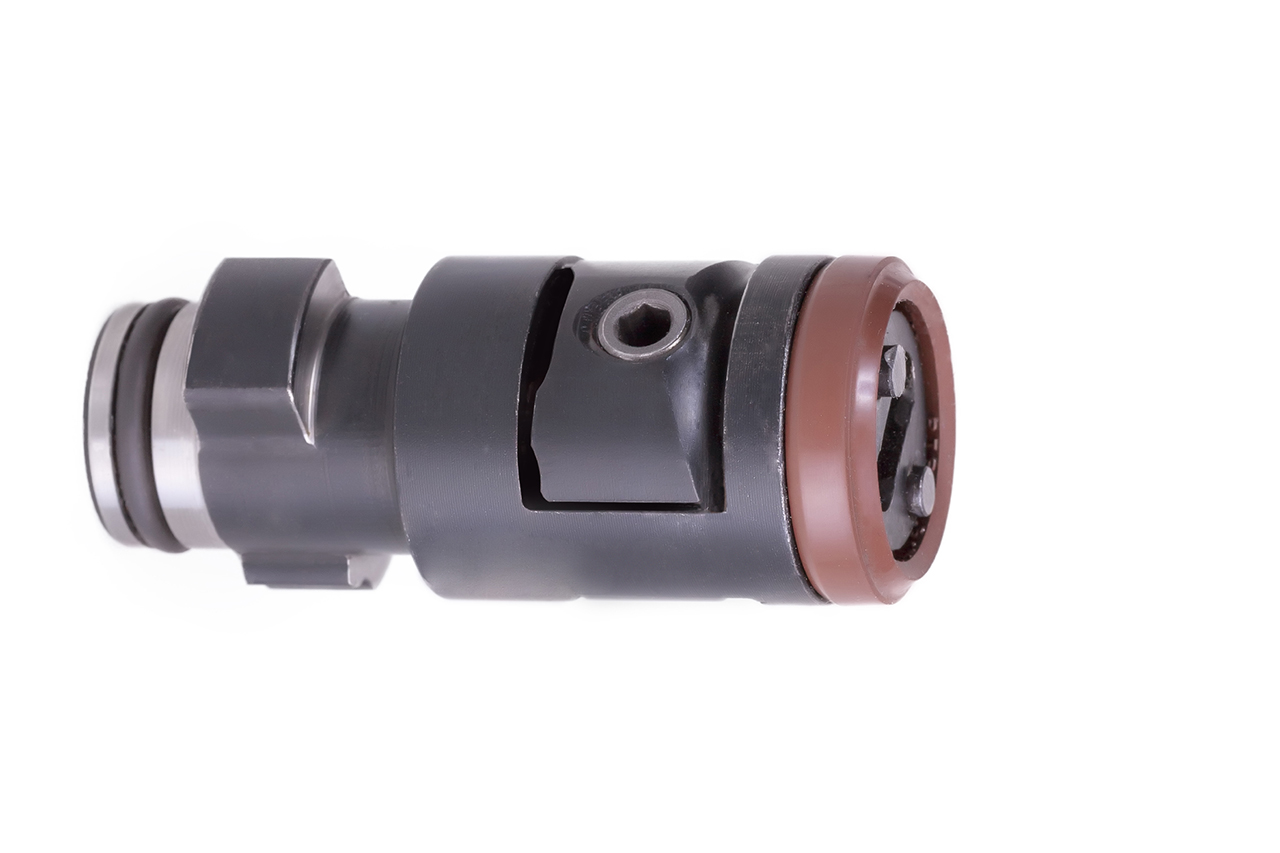

  • Product image KS clamping cartridges

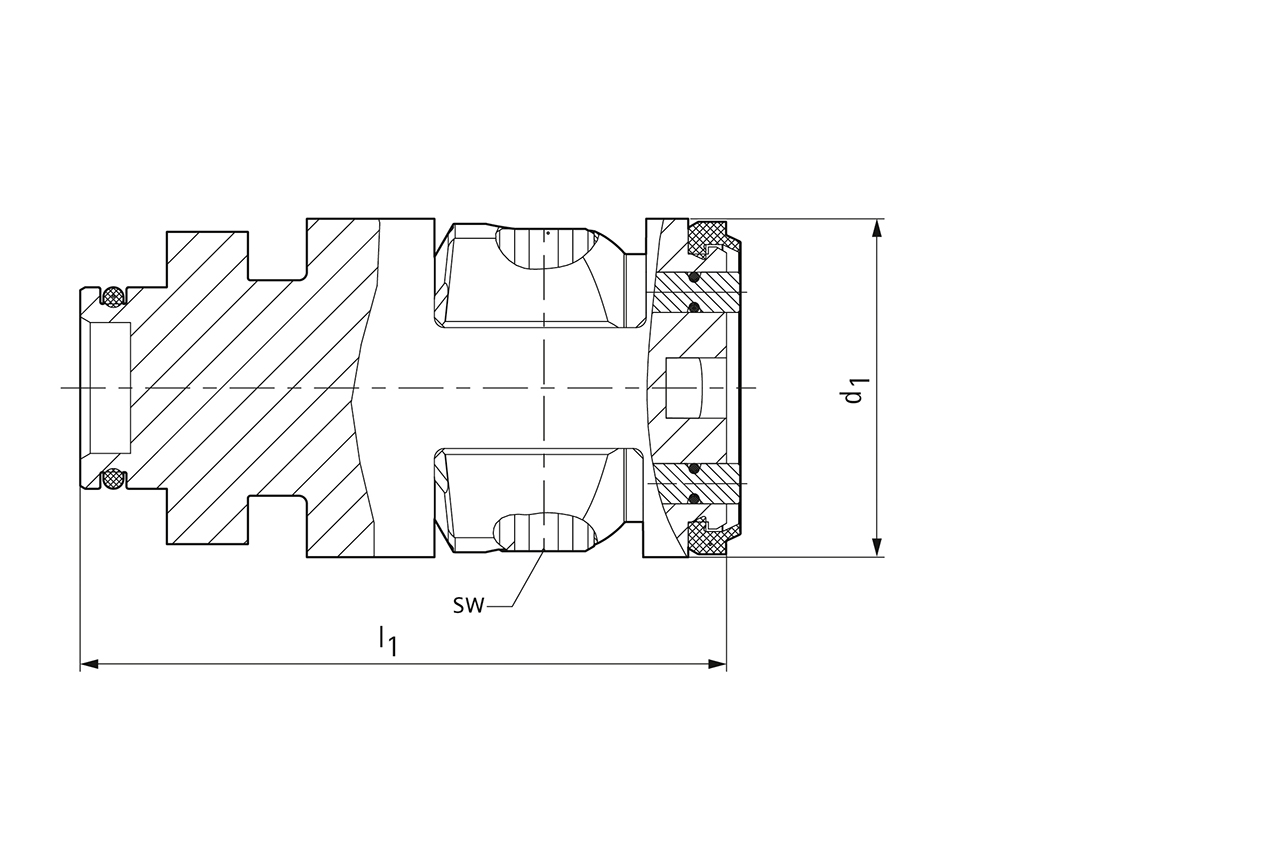

  • Technical drawing KS clamping cartridges

Diameter d1 (mm)

41.6

Your unit price

*Login required

Article

30325959

Quantity

Added to Your Shopping Cart
Inform me when article is back in stock

Technical specifications

Mount. size
80
Technology
standard design

l1

76.6   mm
d1
41.6   mm
Clamping force
30   Nm
Material group
CP

Downloads

3D envelope in stp
30325959_606502963-000-00-E43.STP
Technical drawing in tif
30325959_KS80-09-000-03-ED1.TIF
