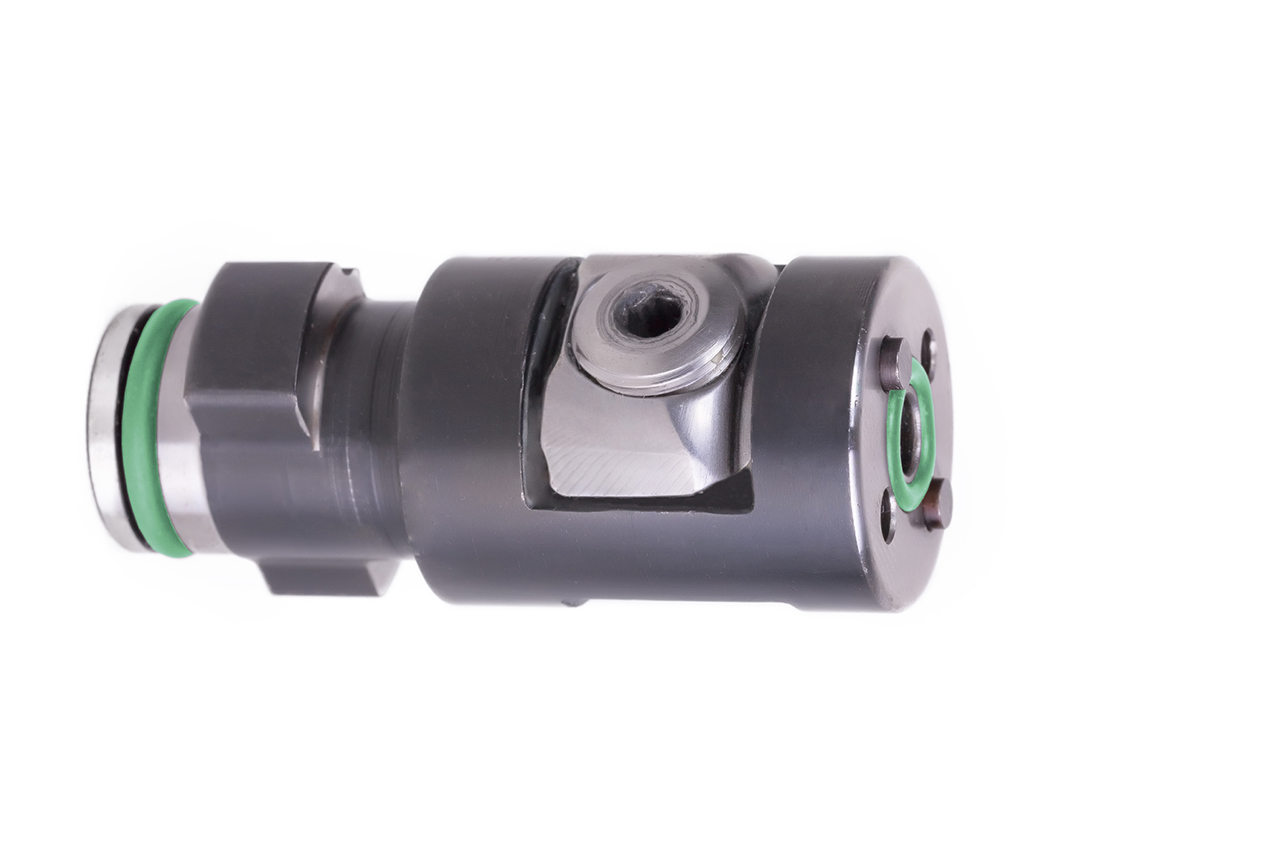

KS clamping cartridges
Diameter d1 (mm)
25.6
Your unit price
*Login requiredTechnical specifications
- Mount. size
- 50
- Technology
- MQL applications
-
l1
- 55.1 mm
- d1
- 25.6 mm
- Clamping force
- 15 Nm
- Material group
- CP
Downloads
- 3D envelope in stp
- 30325953_606502949-000-00-E43.STP

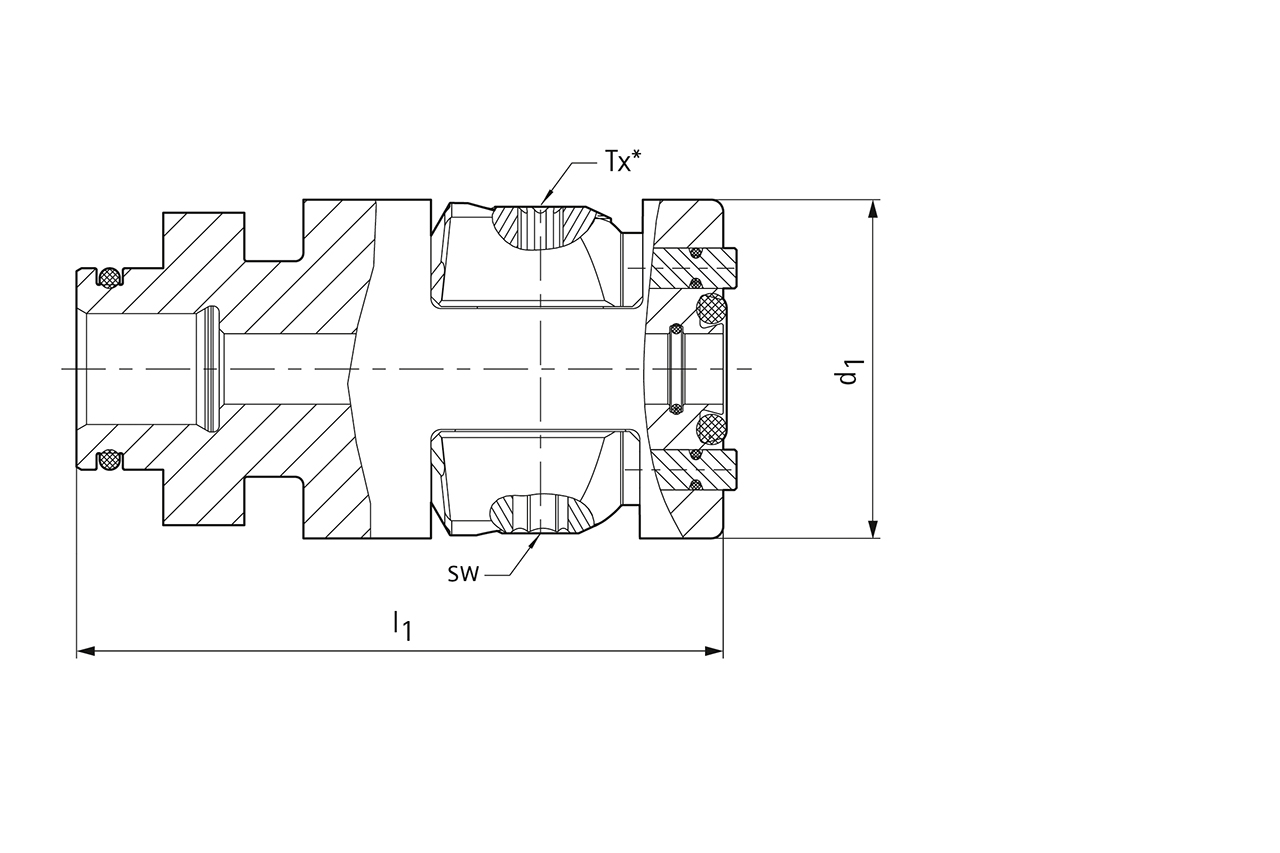

- Technical drawing in tif
- 30325953_29790-000-01-EN1.TIF
