KS clamping cartridges

Durchmesser d1 (mm)

20.6

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30325949

Menge

Ihrem Warenkorb hinzugefügt
Benachrichtigen Sie mich, wenn der Artikel wieder auf Lager ist

Produktbeschreibung

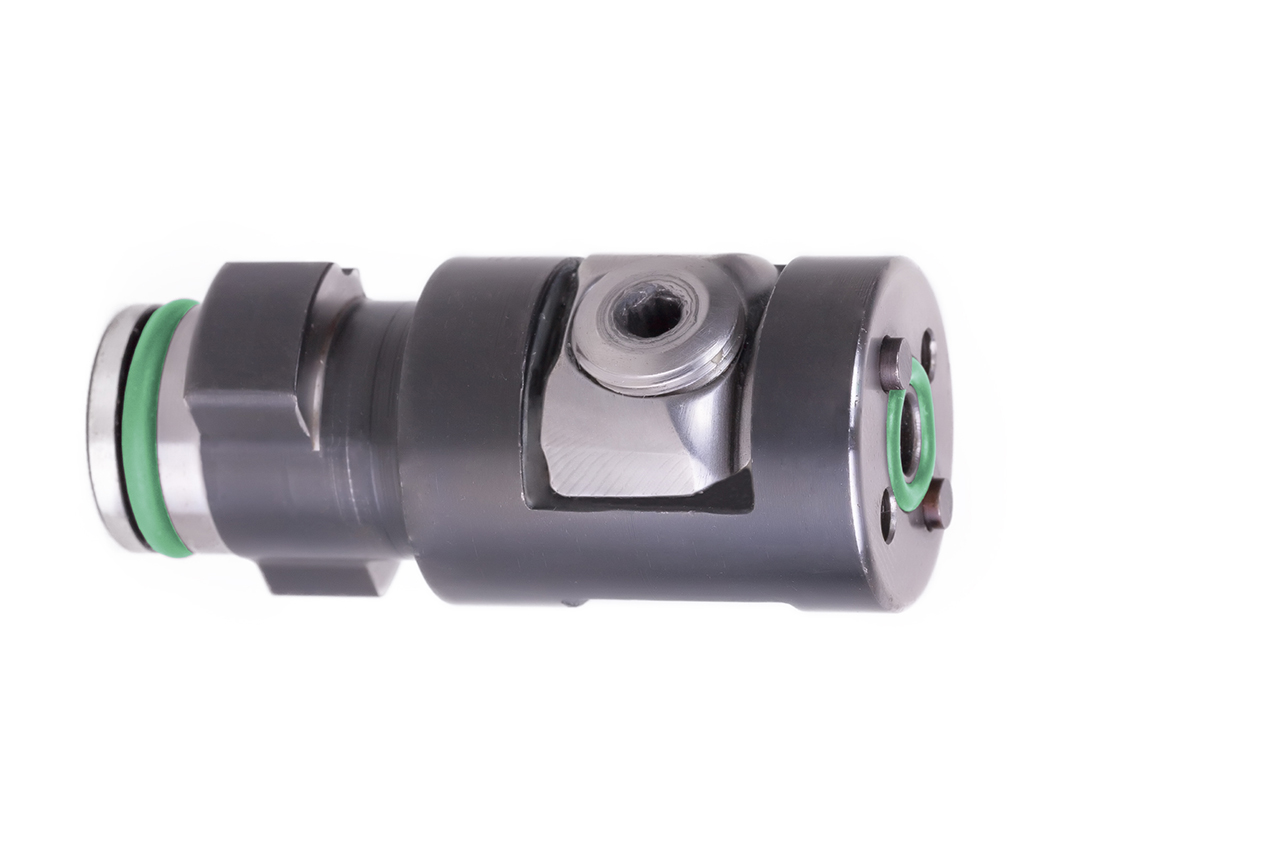

The KS clamping cartridges are a key component of MAPAL's HSK clamping technology. Their manual mechanism enables high clamping forces thanks to a robust design. They are used directly or via flanges in spindles and base holders. The optimized force flow through the bayonet, cartridge body, and clamping jaws, along with the simple 90° rotation against a heavy-duty locking pin, ensures high performance and safe handling.

Technische Daten

Größe
40
Technologie
MMS-Anwendungen MQL

l1

48.1   mm
d1
20.6   mm
Spannkraft
6   Nm
Materialgruppe
CP
Spezifikation
KS40-06-MQL

Downloads

3D Hüllkontur in stp
30325949_606502951-000-00-E43.STP

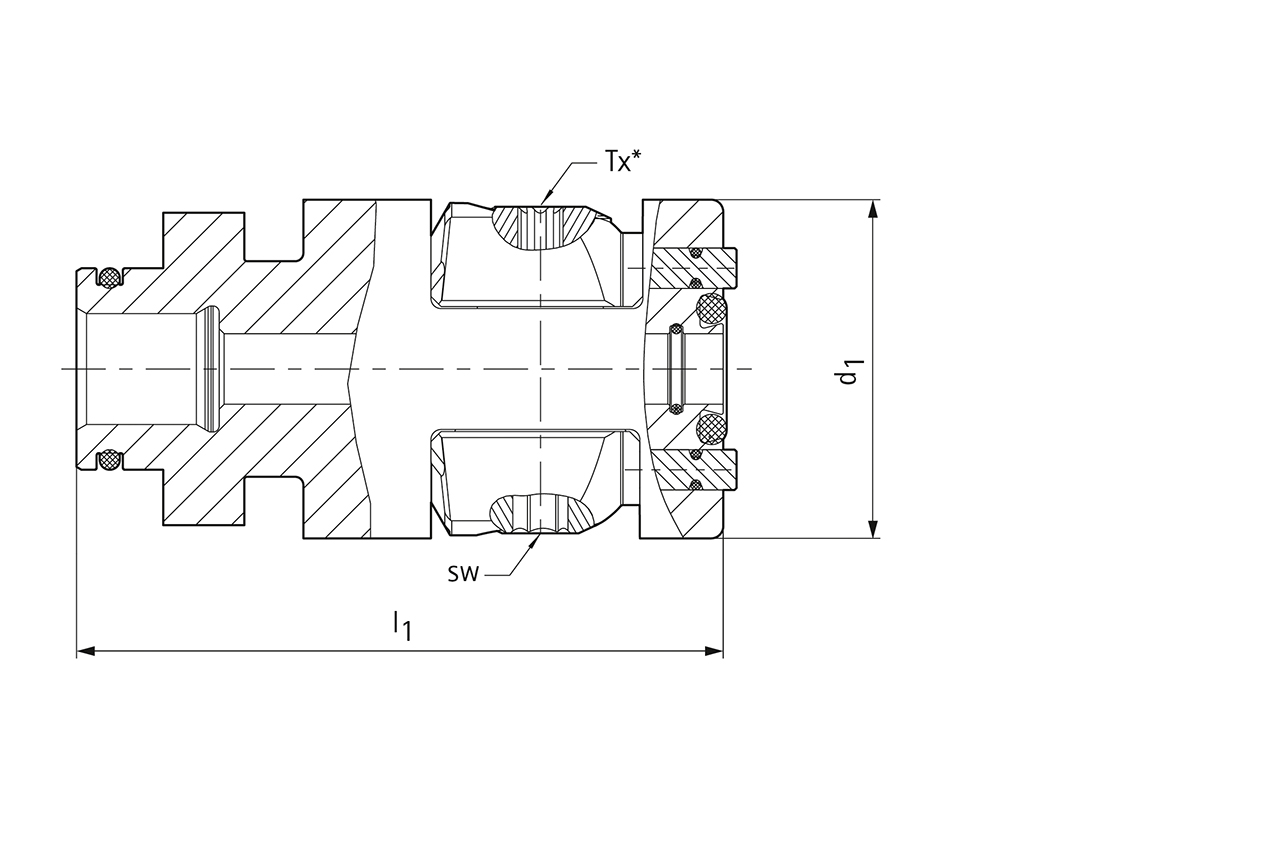

Technische Zeichnung in tif
30325949_29819-000-01-EN1.TIF
