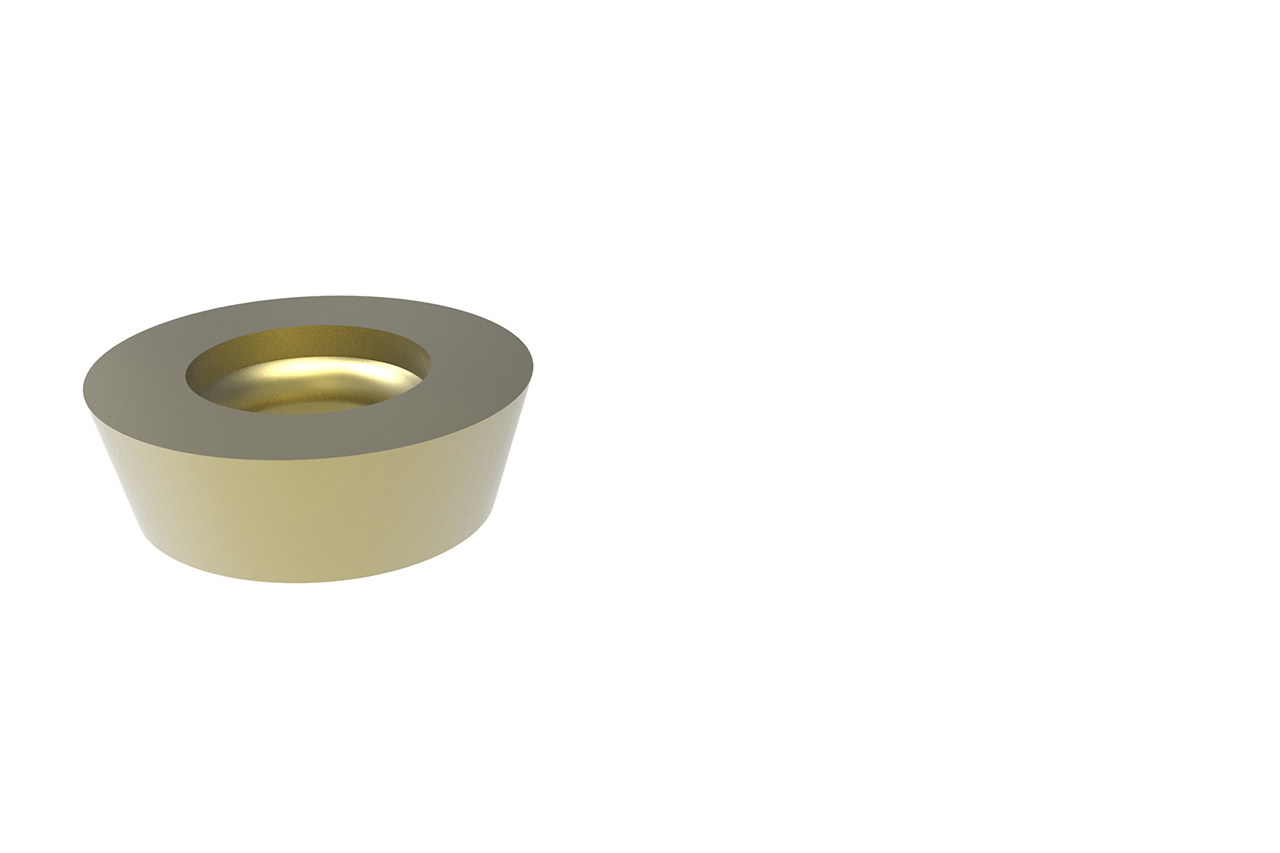

Rundplatte
Ihr Stückpreis
*Login erforderlichTechnische Daten
- Cutting material
- HP640
- Insert form
- R
- Cutting direction
- N
- Insert size
- 10
- Cutting edge height
- 3.18 mm
- IC
- 10 mm
- Radius
- 5 mm
- Clearance angle major
- 15 °
- Fixing hole diameter
- 3.9 mm
- Chip former
- PMU
- Material group
- 92
- Specification
- RDKW1003M0N-PMU-HP640
Downloads
- Technical drawing in pdf
- 31144330_607299088-000-00-ED1.PDF
- Technical drawing in dxf
- 31144330_607299088-000-00-ED1.DXF
- Technical drawing in tif
- 31144330_607299088-000-00-ED1.TIF
