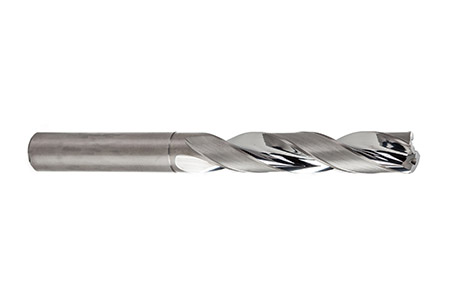

MEGA-180°-Drill-Alu
The MEGA-180°-Drill-Alu has a 180° point angle and a special bevel to produce a flat bore base. Due to its four-bevel geometry and the resulting very good guidance in the bore, the MEGA-180°-Drill-Alu achieves optimum roundness and surfaces in the bores. In addition, polished chip flutes ensure optimum chip transport. The MEGA-180°-Drill-Alu is also suitable for drilling and piloting on inclined surfaces of up to 45°. Due to the flat tip, the radial forces are reduced compared to conventional 140° drill tips.
Selected facets:
- 5xD Bohrtiefe xD
- 8.0 Schaftdurchmesser (d2)
- 4xD Bohrtiefe xD
- 16.0 Schaftdurchmesser (d2)
- 3.0 Schaftdurchmesser (d2)
- MEGA-180°-Drill-Alu Familie
-
Produktfamilie
-
Materialeignung
-
Diameter (d1)
-
-
Schneidenanzahl (z)
-
Kühlmittelzufuhr
-
Spitzenwinkel
-
Produktklasse
-
Bohrungstoleranz
(5)-
MEGA-180°-Drill-Alu
d1: 7 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2; innere Kühlmittelzufuhr; SCD241-0700-2-4-180HA05-HU630
Order number: 30383042
In Stock -
MEGA-180°-Drill-Alu
d1: 7,5 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2; innere Kühlmittelzufuhr; SCD241-0750-2-4-180HA05-HU630
Order number: 30383047
In Stock -
MEGA-180°-Drill-Alu
d1: 8 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2; innere Kühlmittelzufuhr; SCD241-0800-2-4-180HA05-HU630
Order number: 30383052
In Stock -
MEGA-180°-Drill-Alu
d1: 15 mm; d2: 16 mm; l1: 131 mm; l2: 81 mm; l3: 61 mm; z: 2; innere Kühlmittelzufuhr; SCD241-1500-2-4-180HA05-HU630
Order number: 30383102
In Stock -
MEGA-180°-Drill-Alu
d1: 6,5 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2; innere Kühlmittelzufuhr; SCD241-0650-2-4-180HA05-HU630
Order number: 30383037
currently out of stockInform me when article is back in stock
