MEGA-Drill-Steel-Plus
Durchmesser d1 (mm)
12.5
Ihr Stückpreis
*Login erforderlichUnsere Produktempfehlung:
Produktbeschreibung

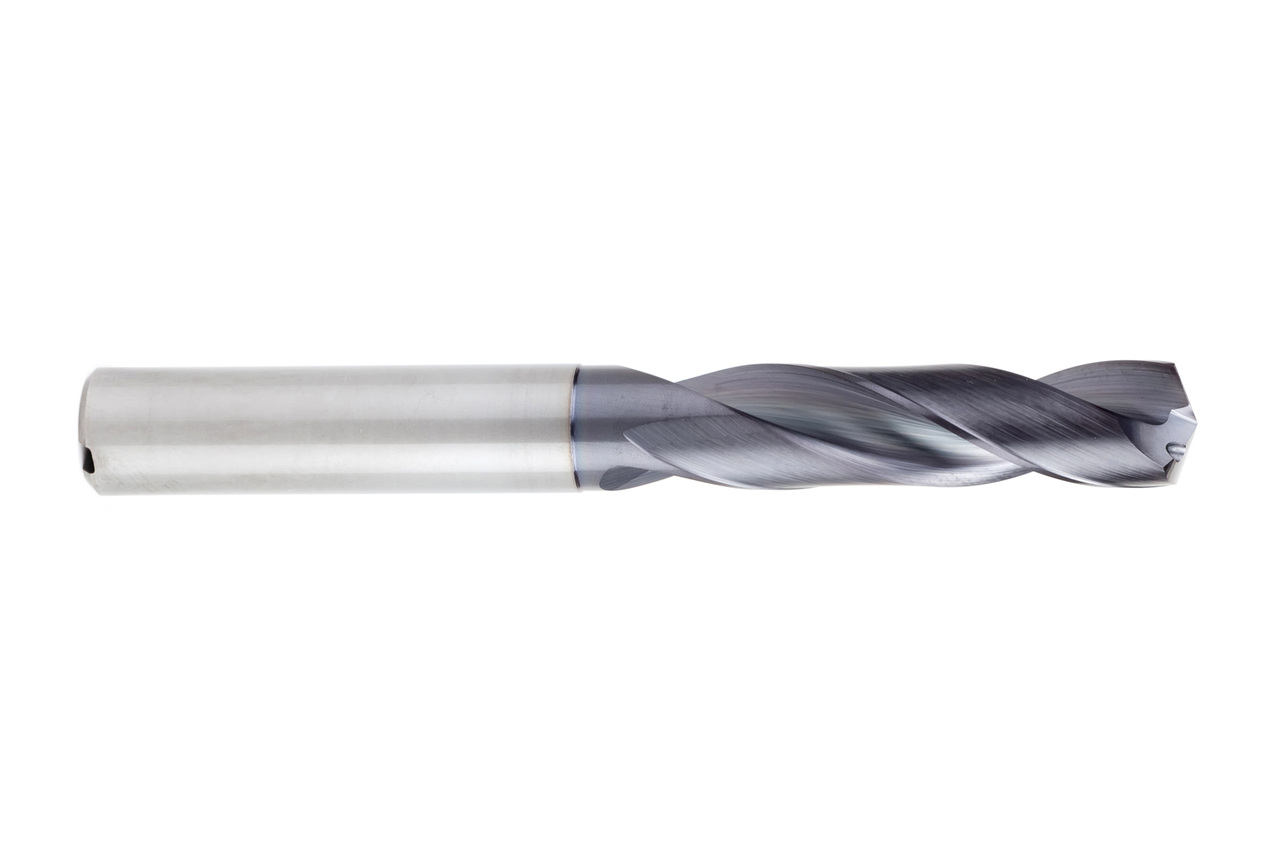

The double-edged solid carbide drill MEGA-Drill-Steel-Plus is ideally suited for medium to high quantities in a wide range of applications. The special design of the cutting edges and the chip chambers make it ideal for economical steel machining.
Technische Daten
- Schneidstoff
- HP358
- Product class
- Performance-Line
- Drilling depth
- 3xD

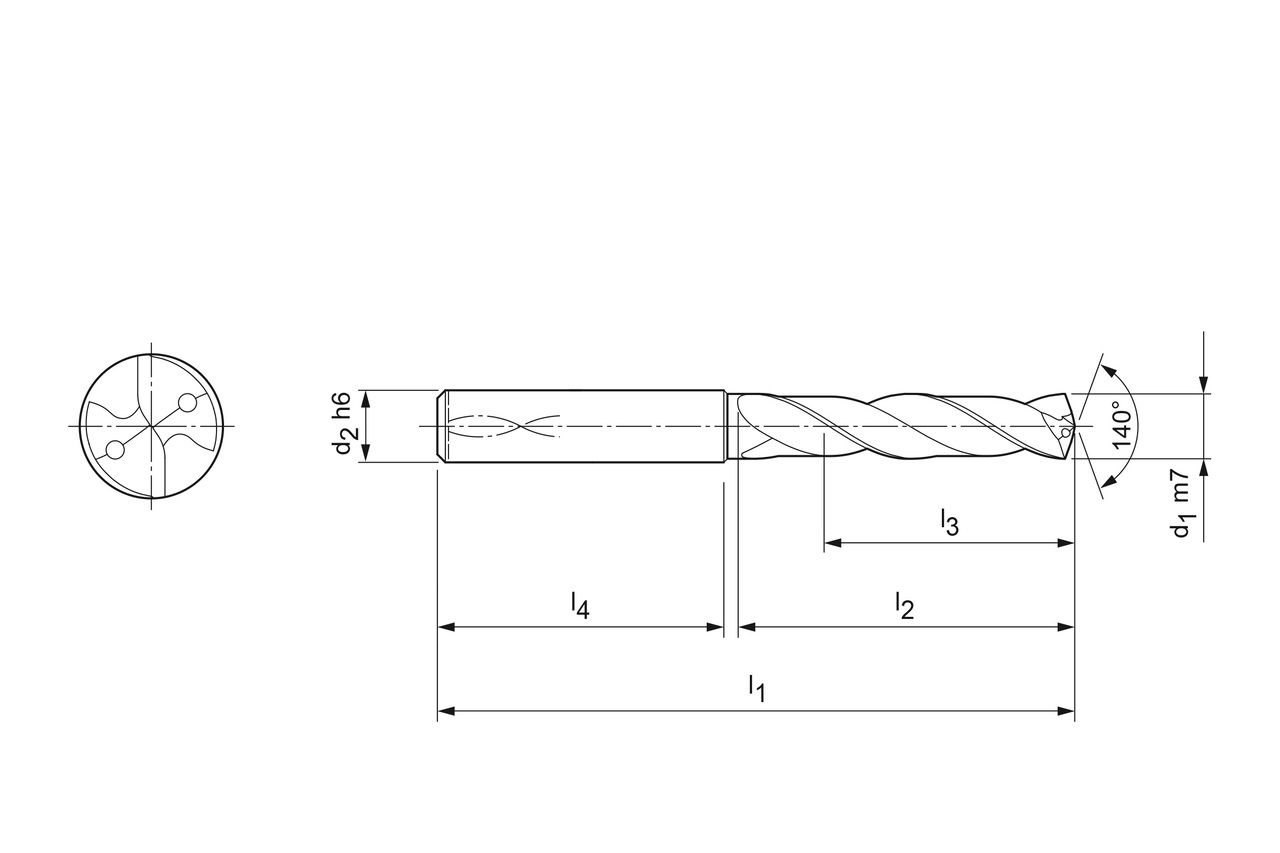

- d1
- 12.5 mm
- d2
- 14 mm
- l1
- 107 mm
- l2
- 60 mm
- l3
- 43 mm
- l4
- 45 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 140 °
- Side rake angle
- 30 °
- Material group
- M8
Downloads
- Technical drawing in dxf
- 30802223_607846241-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 30802223_607846241-000-00-ED1-MM.PDF
- Technical drawing in tif
- 30802223_607846241-000-00-ED1-MM.TIF
- 3D envelope in stp
- 30802223_607846242-000-00-E43.STP
- Cutting data recommendations
- 30802223_ECU-Drill-Steel_MEGA-Drill-Steel-Plus_Schnittwertempfehlung.pdf
- Technical drawing in tif
- 30802223_607846241-000-00-ED1-MM.tif
- Cutting data recommendations
- 30802223_MEGA-Drill-Steel-Plus_EN.pdf
