UNIQ Mill Chuck, HA

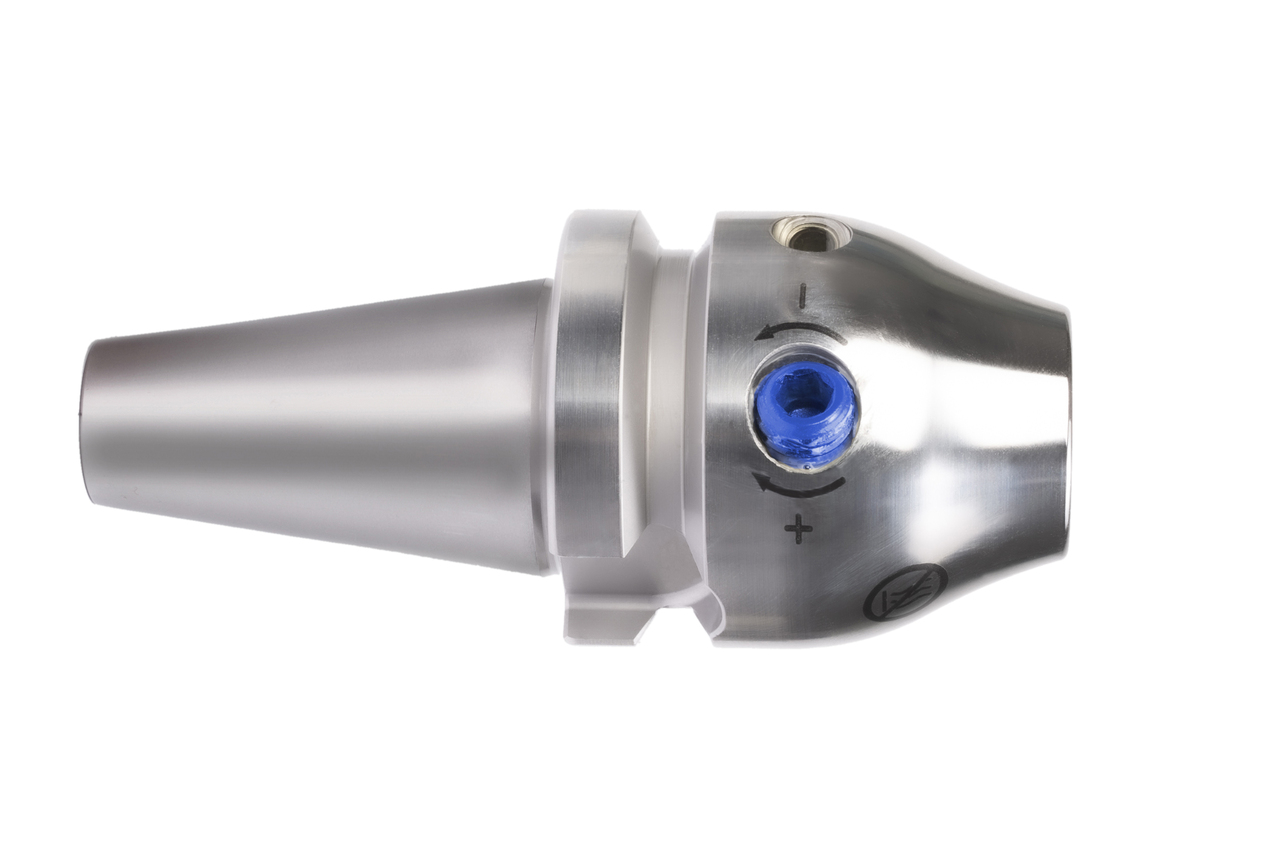

  • Product image UNIQ Mill Chuck, HA

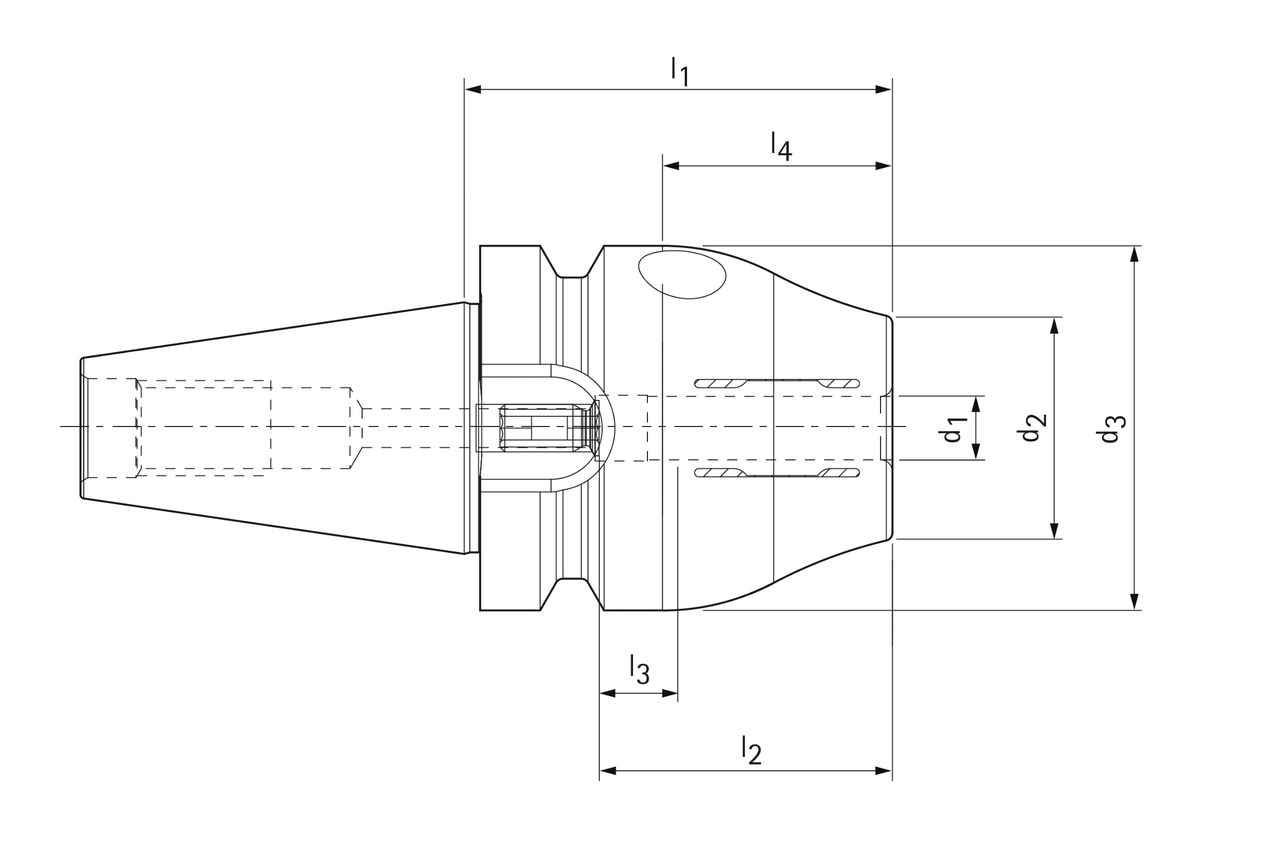

  • Technical drawing UNIQ Mill Chuck, HA

Diameter d1 (mm)

8.0

Your unit price

*Login required

Article

31280343

Quantity

Added to Your Shopping Cart
Inform me when article is back in stock

Product description

The UNIQ® Mill Chuck is specially designed for clamping milling tools with HA shank. Due to the high temperature resistance of 80 C° even with very long milling cycles, it convinces in highly dynamic milling applications, such as SPM (Structural Part Machining), HSC (High Speed Cutting) or HPC (High Performance Cutting), of high-quality components with excellent process reliability and high metal removal volume.  It is universally designed for roughing, semi and finishing operations.

Technical specifications

Machine connection
BT (Form JD)
Size machine connection
30
Technology
HydroChuck
d1
8   mm
d2
28   mm
d3
46   mm
l1
54   mm
l2
37   mm
l3
10   mm
l4
29   mm
Kühlmittelzufuhr
intern
Kühlmittelaustritt
axial konzentrisch
Längeneinstellung
axiale Längeneinstellung
Materialgruppe
CY
Spezifikation
MHC-BT030-08-054-1-0-A

Downloads

Technische Zeichnung in pdf
31280343_607545175-000-00-ED1.PDF
Technische Zeichnung in tif
31280343_607545175-000-00-ED1.TIF
Technische Zeichnung in dxf
31280343_607545175-000-00-ED1.DXF
Technische Zeichnung in pdf
31280343_607545175-000-00-ED1.PDF
3D Hüllkontur in stp
31280343_607545176-000-00-E43.STP
Technical drawing in tif
31280343_607545175-000-00-ed1.tif
Tool contour in stp
31280343_607545176-000-00-E43.stp
Technical drawing in dxf
31280343_607545175-000-00-ed1.dxf
Brochure
31280343_250224_UNIQ_EN.pdf
