ThermoChuck MTC, schlanke Ausführung 3°

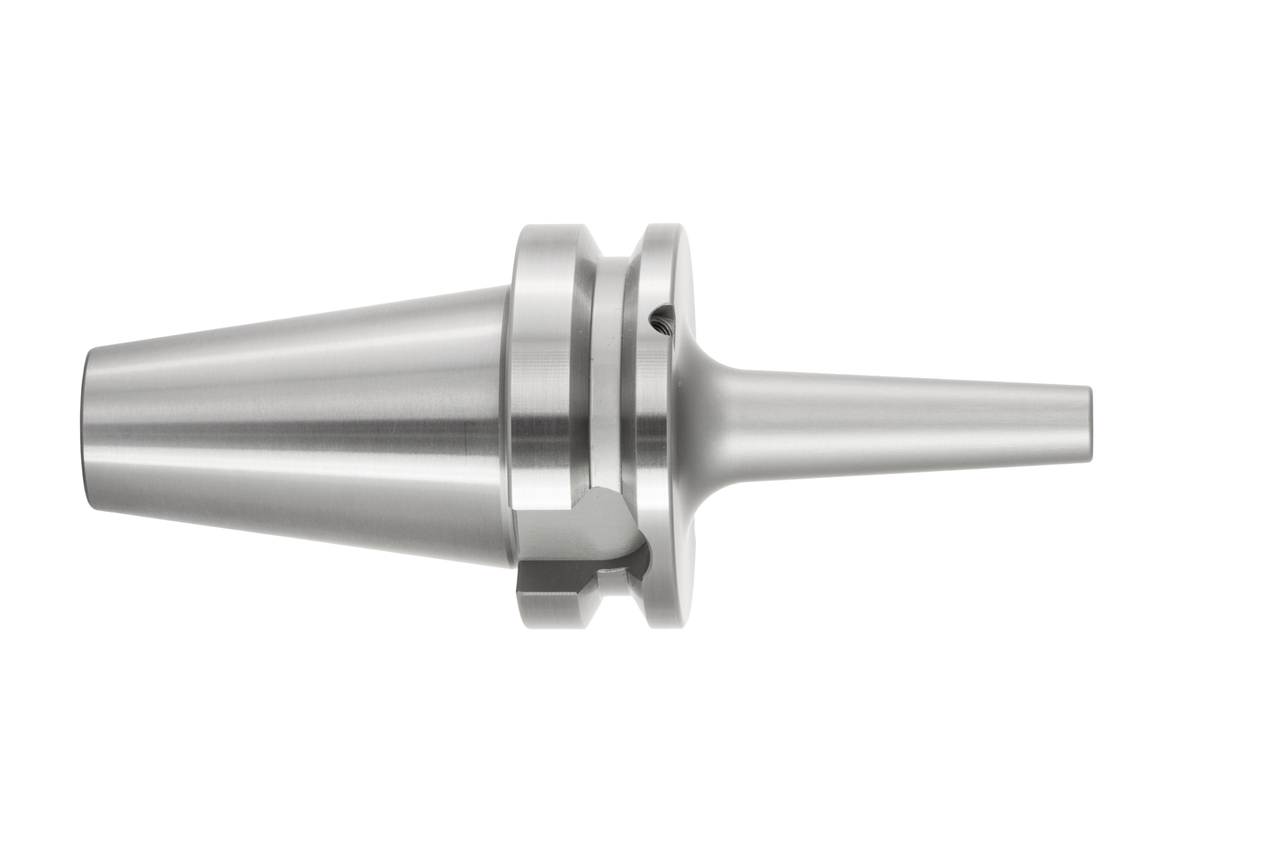

  • Produktbild Thermo Chuck MTC, schlanke Ausführung 3°

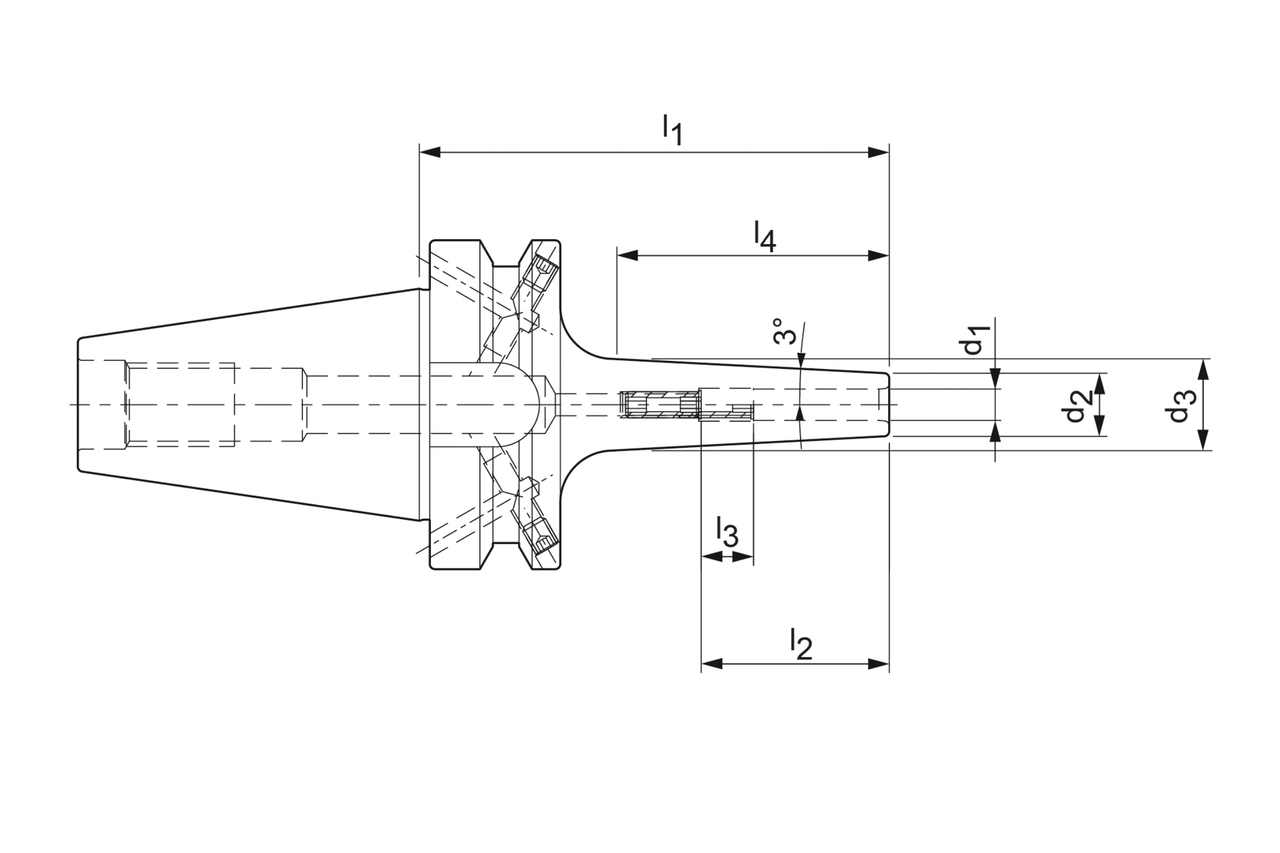

  • Produktzeichnung Thermo Chuck MTC, schlanke Ausführung 3°

Diameter d1 (mm)

4.0

Your unit price

*Login required

Article

30385216

Quantity

Added to Your Shopping Cart

Product description

Mit dem ThermoChuck können Werkzeuge für fast alle Zerspanungsaufgaben passgenau gespannt werden. Die Verwendung von hochwarmfesten Werkzeugstahl garantiert eine maximale Lebensdauer. Die schlanke Ausführung 3° ermöglicht Bearbeitungen im konturkritischen Bereich.

Technical specifications

Machine connection
BT (Form JD/JF)
Size machine connection
40
Technology
ThermoChuck
d1
4   mm
d2
10   mm
d3
15.7   mm
l1
90   mm
l2
28   mm
l3
12   mm
Coolant supply
internally and laterally combined
Coolant outlet
axial concentric
Length adjustment
axial
Material group
CT
Specification
MTC-BT040-04-090-3-0-A

Downloads

Technical drawing in dxf
30385216_606464869-000-00-ED1.DXF
Technical drawing in tif
30385216_606464869-000-00-ED1.TIF
3D envelope in stp
30385216_606603760-000-00-E43.STP
