Thermo Chuck MTC, Standard

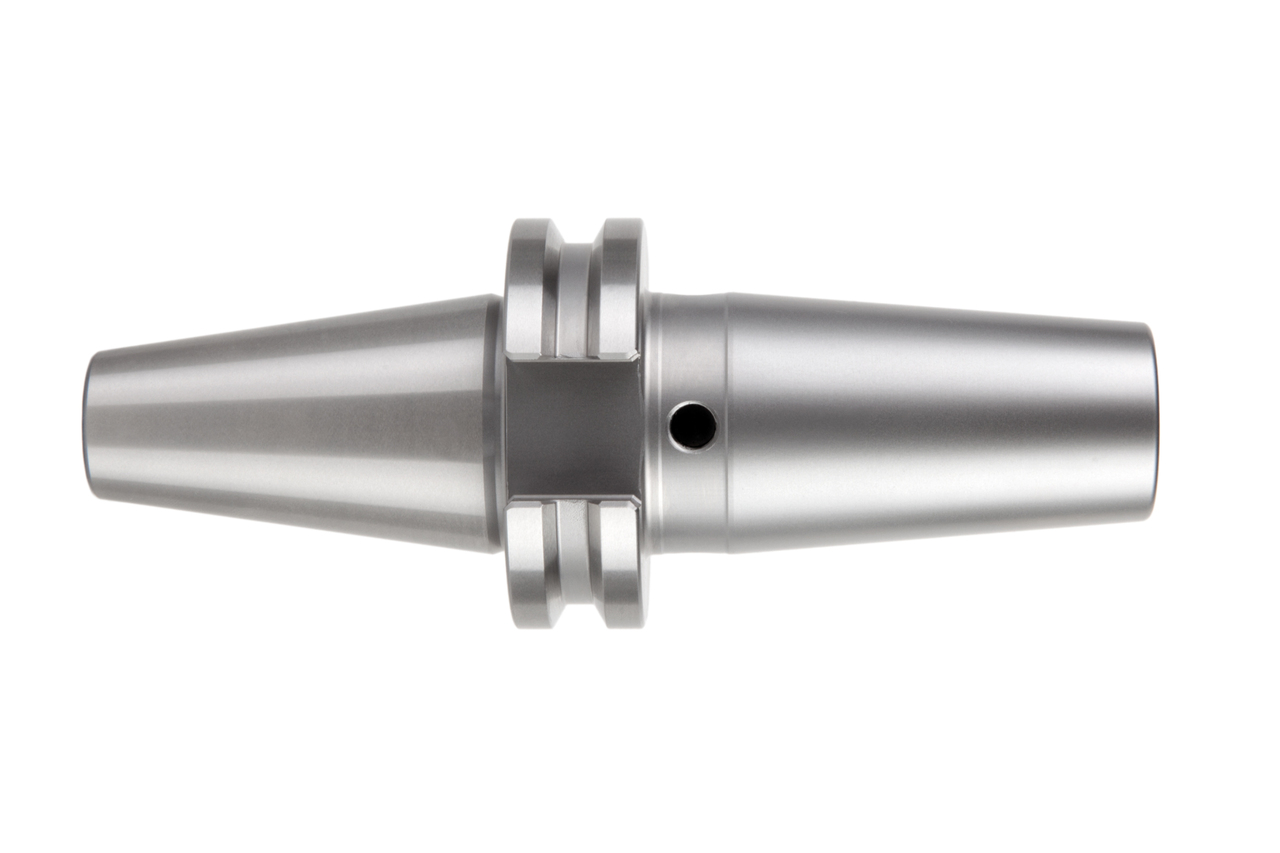

  • Product image Thermo Chuck MTC, Standard

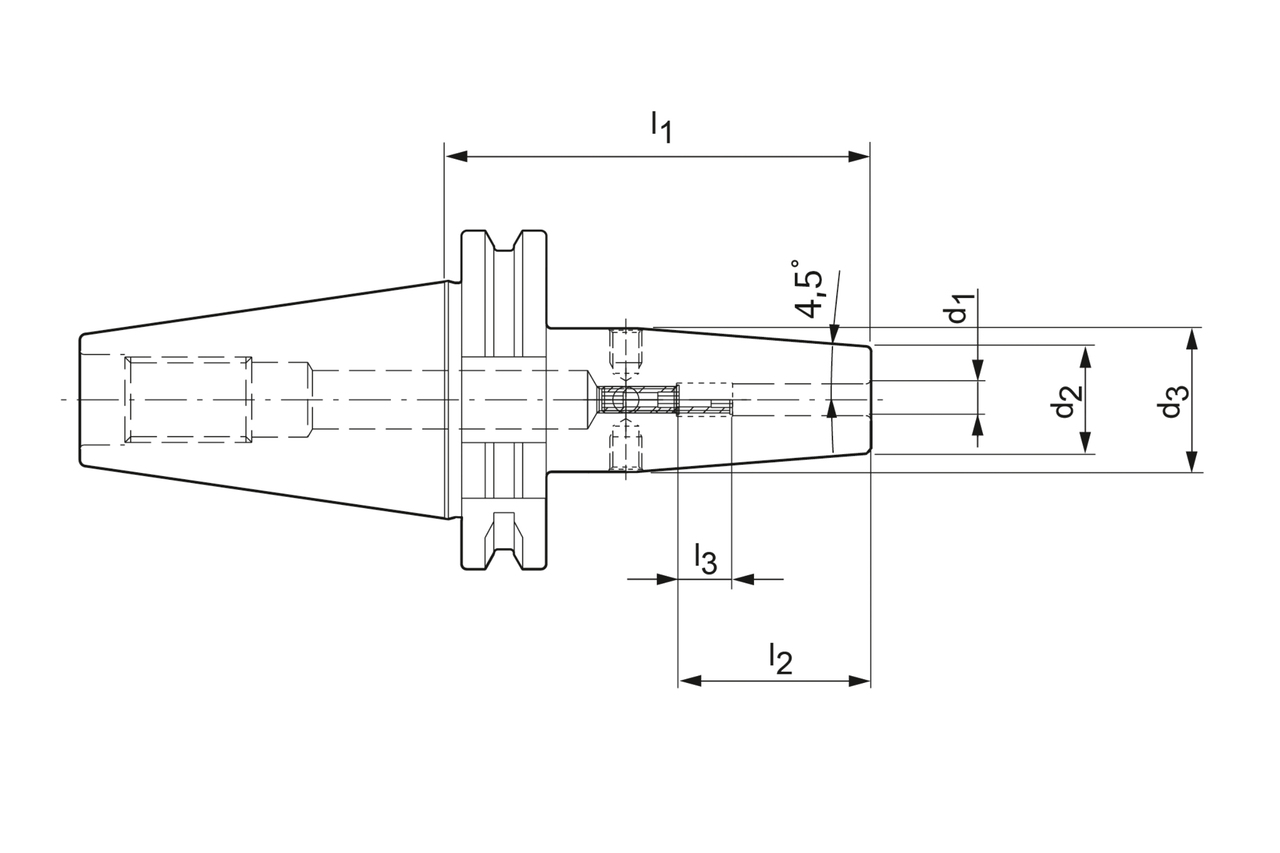

  • Technical drawing Thermo Chuck MTC, Standard

Diameter d1 (mm)

5.0

Your unit price

*Login required

Article

30261588

Quantity

Added to Your Shopping Cart

Product description

Mit dem ThermoChuck können Werkzeuge für fast alle Zerspanungsaufgaben passgenau gespannt werden. Die Verwendung von hochwarmfesten Werkzeugstahl garantieren eine maximale Lebensdauer.

Technical specifications

Machine connection
SK (Form AD/AF)
Size machine connection
40
Technology
ThermoChuck
d1
5   mm
d2
15   mm
d3
22   mm
d4
0   mm
d5
0   mm
l1
120   mm
l2
20   mm
l3
0   mm
l4
0   mm
l5
0   mm
Coolant supply
internally and laterally combined
Coolant outlet
axial concentric
Length adjustment
axial
Material group
CT

Downloads

3D envelope in stp
30261588_606404440-000-00-E43.STP
Technical drawing in dxf
30261588_606463298-000-01-ED1.DXF
Technical drawing in pdf
30261588_606463298-000-01-ED1.PDF
Technical drawing in tif
30261588_606463298-000-01-ED1.TIF
Technische Zeichnung in dxf
30261588_606463298-000-00-ed1.dxf
3D Hüllkontur in stp
30261588_606404440-000-00-e43.stp
Technische Zeichnung in tif
30261588_606463298-000-00-ed1.tif
