HydroChuck Compensation
Diameter d1 (mm)
12.0
Your unit price
*Login requiredArticle
30998200
Quantity
Added to Your Shopping Cart
Inform me when article is back in stock
Product description

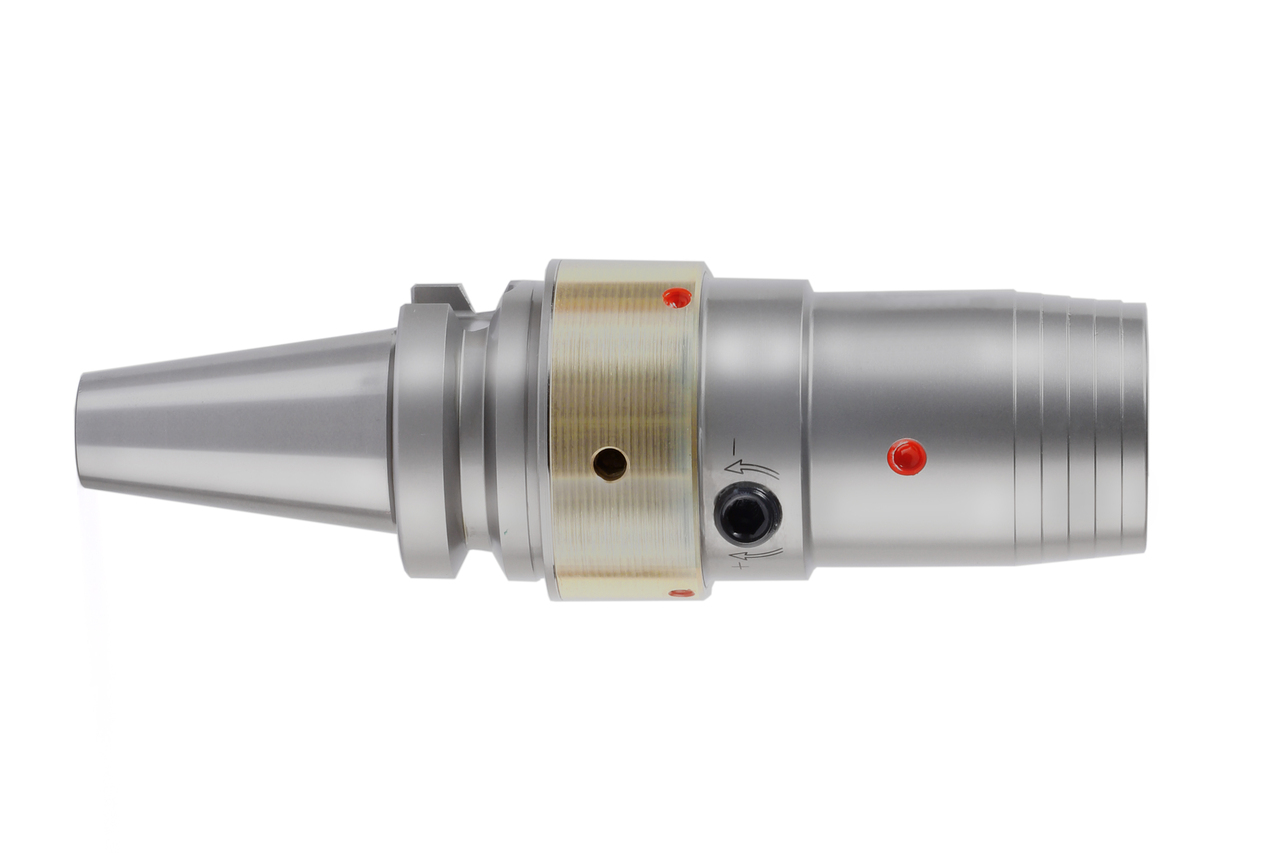

The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time. With compensation technology: alignment function on the chuck for radial alignment option to compensate for concentricity errors in the overall system.
Technical specifications
- Machine connection
- BT (Form JD)
- Size machine connection
- 30
- Technology
- HydroChuck
- d1
- 12 mm
- d2
- 28 mm
- d3
- 32 mm
- d4
- 46 mm
- d5
- 52.5 mm
- l1
- 112 mm
- l2
- 46 mm
- l3
- 10 mm
- l4
- 40 mm
- l5
- 56 mm
- Coolant supply
- internal
- Coolant outlet
- axial concentric
- Length adjustment
- axial
- Material group
- CY
Downloads

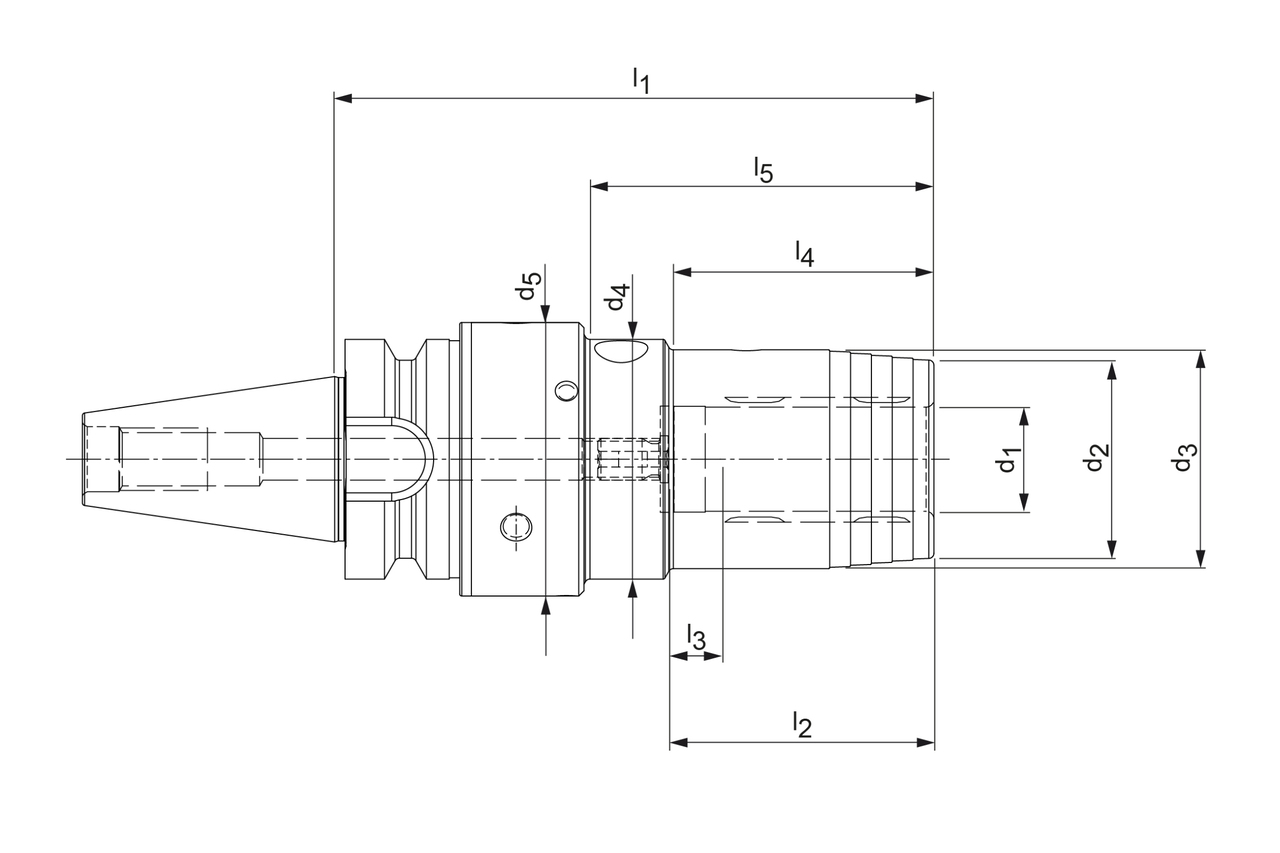

- 3D envelope in stp
- 30998200_607635469-000-00-E43.STP
- Technical drawing in dxf
- 30998200_607032328-000-01-ED1.DXF
- Technical drawing in tif
- 30998200_607032328-000-01-ED1.TIF
- Technical drawing in dxf
- 30998200_607032328-000-01-ed1.dxf
- Tool contour in stp
- 30998200_607635469-000-00-E43.stp
- Technical drawing in tif
- 30998200_607032328-000-01-ed1.tif
