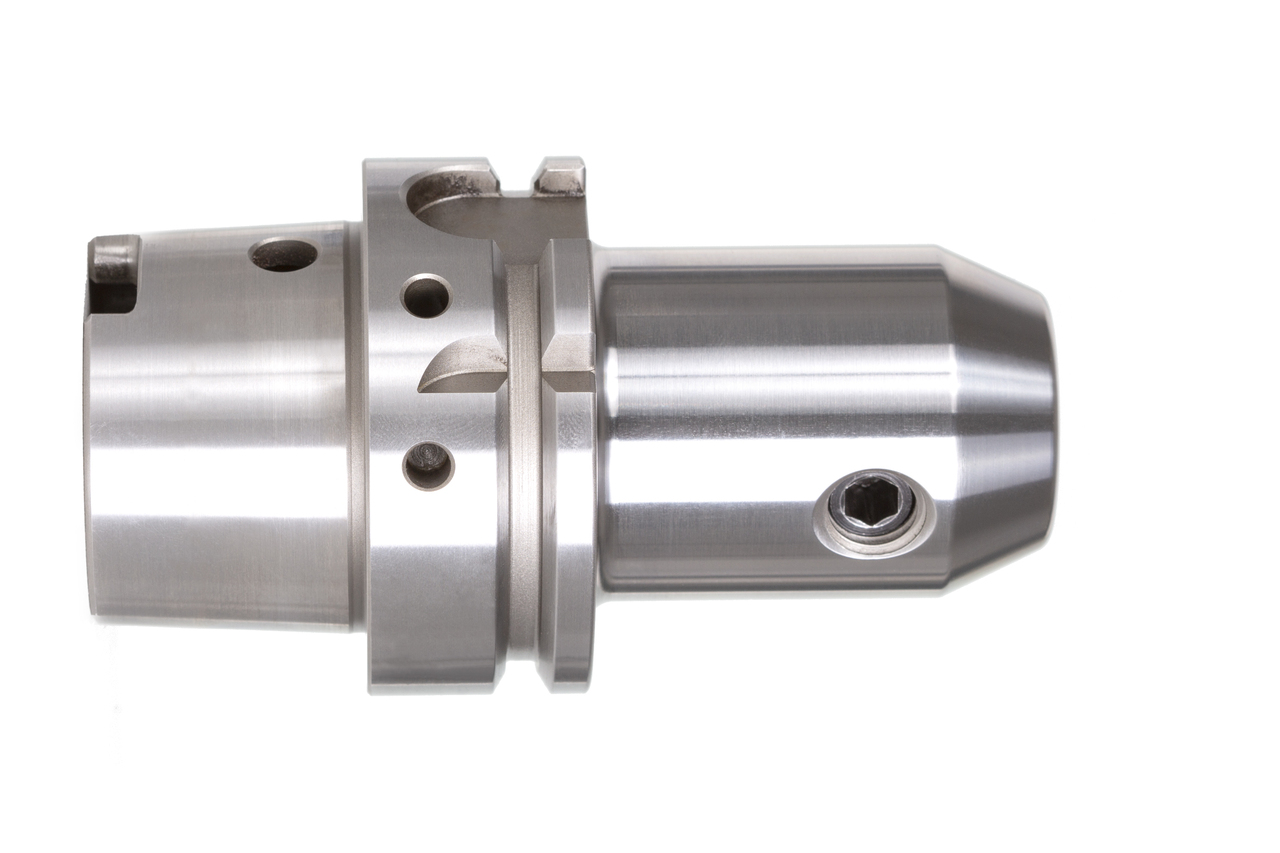

Flächenspannfutter, mit seitlicher Spannfläche
Diameter d1 (mm)
10.0
Your unit price
*Login requiredTechnical specifications
- Shank tolerance
- H5
- Machine connection
- HSK-A
- Size machine connection
- 100
- Technology
- Mechanical systems

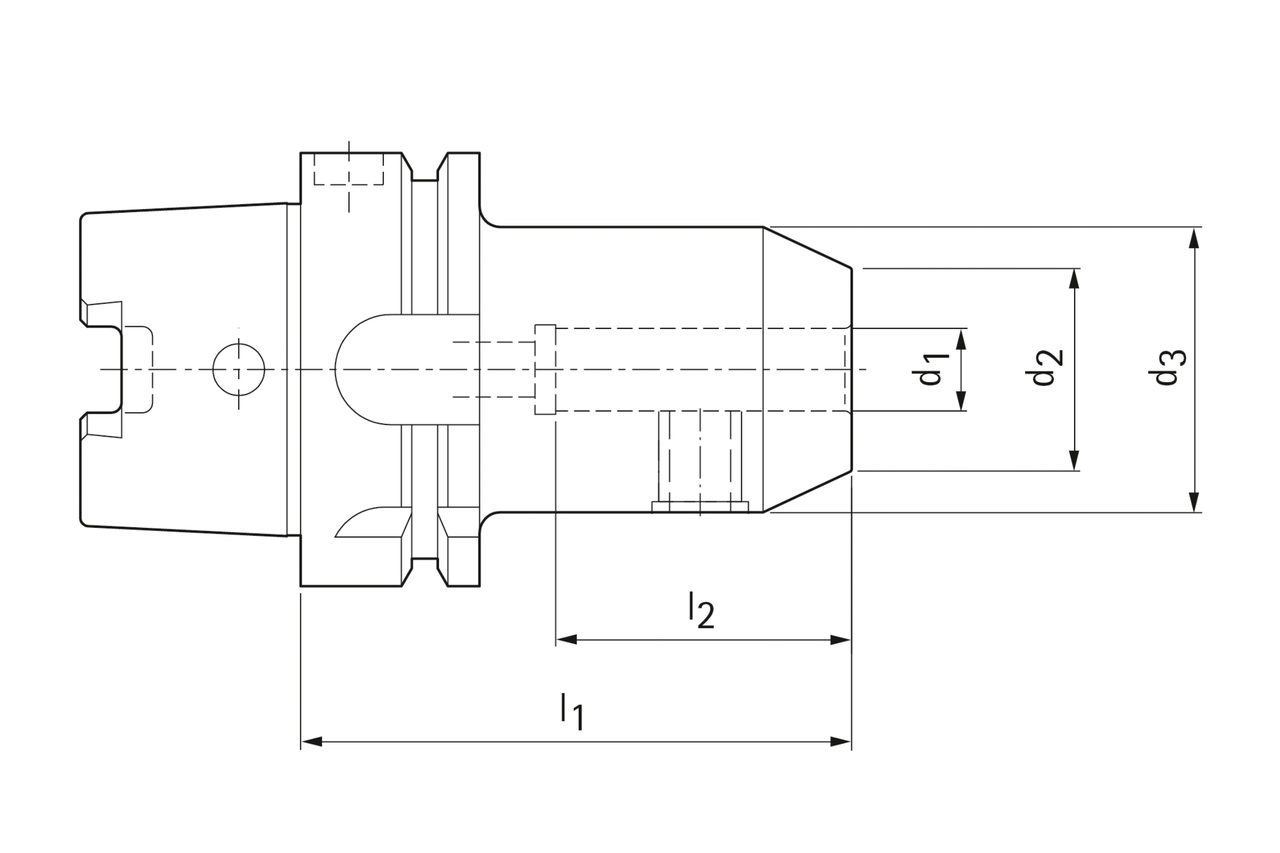

- d1
- 10 mm
- d2
- 24.5 mm
- d3
- 34.5 mm
- l1
- 80 mm
- l2
- 41 mm
- Coolant supply
- internal
- Coolant outlet
- axial concentric
- Length adjustment
- without length adjustment
- Material group
- CM
- Specification
- MWC-HSK-A100-10-080-1-0-W
Downloads
- 3D envelope in stp
- 30319225_606403852-000-00-E43.STP
- Technical drawing in tif
- 30319225_285783-000-01-ED1.TIF
- Technical drawing in tif
- 30319225_285783-001-01-ED1.TIF
