NC-Maschinenreibahle

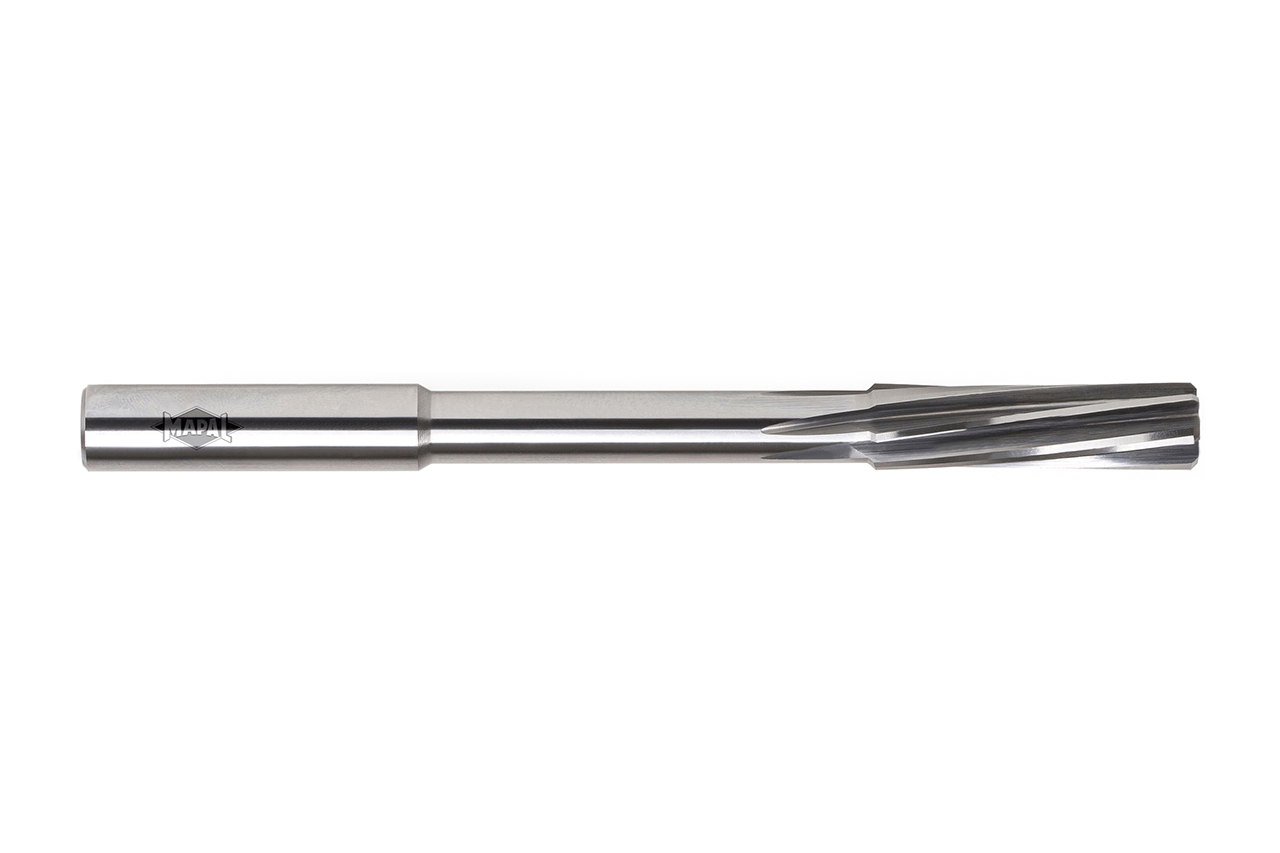

  • Produktbild NC-Maschinenreibahle

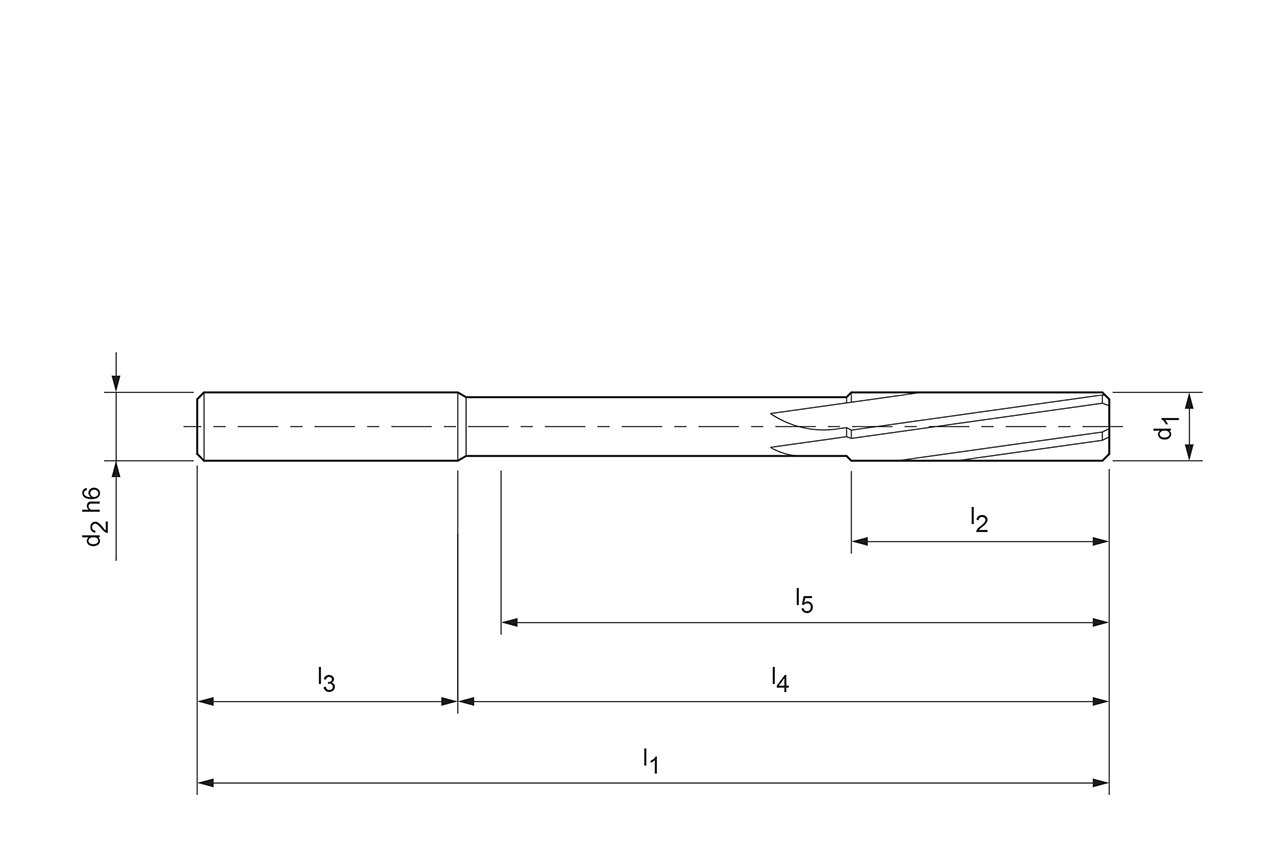

  • Technical drawing NC machine reamer

Diameter d1 (mm)

2.52

Your unit price

*Login required

Article

30969608

Quantity

Added to Your Shopping Cart

Product description

NC-Maschinenreibahlen sind eine besonders kostengünstige Variante zur Fertigung genauer Bohrungen. Die Leistungsdaten liegen zwar unter denen der Hochleistungs Reibahlen, dennoch finden diese Werkzeuge eine weite Verbreitung, weil sie sich besonders durch ihre Qualität und eine einfache Handhabung auszeichnen.

Material suitability

P
P1
highly suitable
P2
highly suitable
P3
highly suitable
P4
P5
highly suitable
P6
M
M1
suitable in some situations
M2
suitable in some situations
M3
K
K1
highly suitable
K2
highly suitable
K3
highly suitable
N
N1
highly suitable
N2
highly suitable
N3
N4
suitable in some situations
S
S1
suitable in some situations
S2
suitable in some situations
S3
suitable in some situations
S4
suitable in some situations
S5
suitable in some situations
H
H1
H2
H3

Technical specifications

Connection type
Cylindrical shank
Connection size
0030
Type of bore
Through bore
d1
2.52   mm
d3
3   mm
l1
60   mm
l2
16   mm
l3
28   mm
l4
0   mm
l5
29   mm
Tolerance
+4
Cutting material
HU613
Cooling
external cooling
Number of cutting edges (z)
4
Material group
X4
Specification
MDR510-8093-2BØ2.520+4-HU613
