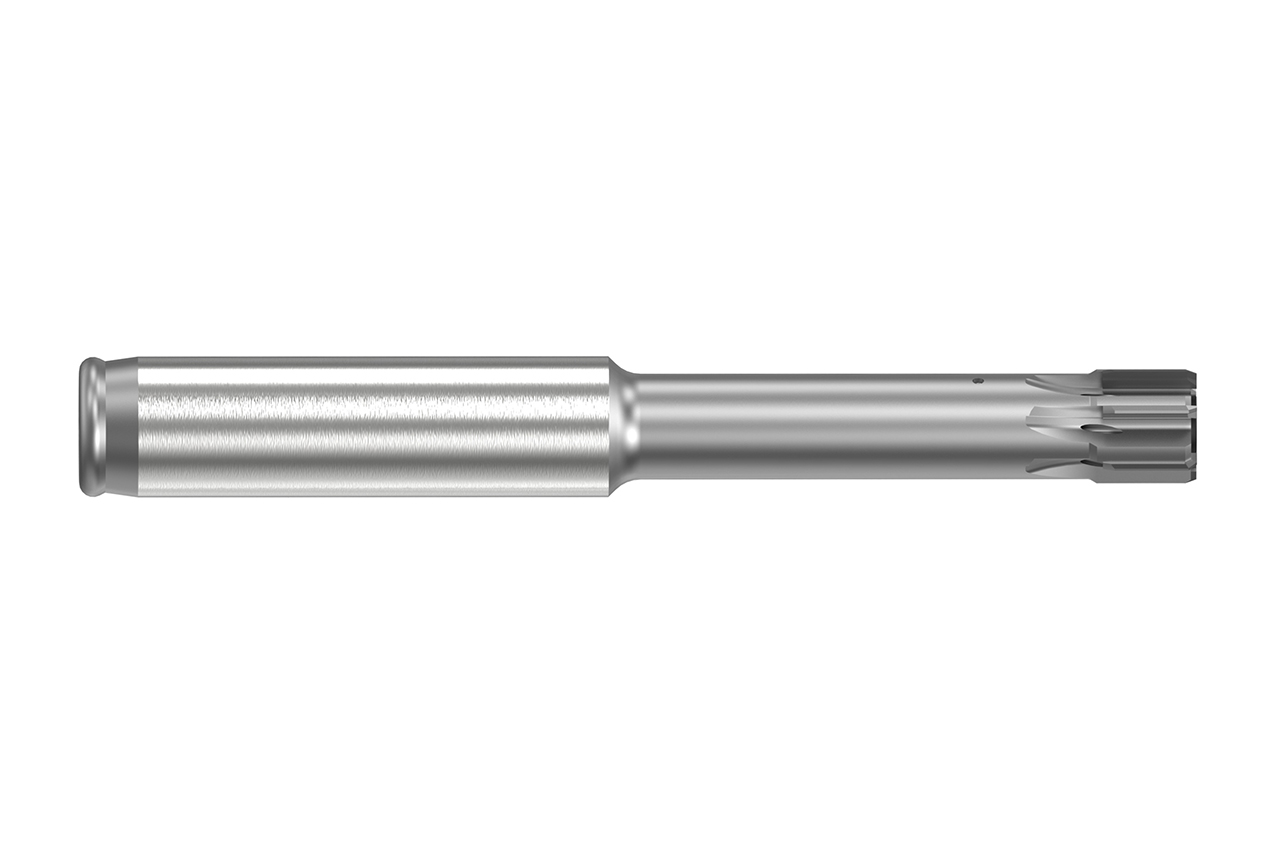

FixReam 7++
Durchmesser d1 (mm)
24.0
Your unit price
*Login erforderlichArticle
31461002
Quantity
Added to Your Shopping Cart
Benachrichtigen Sie mich, wenn der Artikel wieder auf Lager ist
Product description
The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.
Technical specifications
- Trennstelle
- Zylinderschaft
- Trennstellengröße
- 20
- Bohrungsart
- Grundbohrung
- d1
- 24 mm
- d2
- 20 mm
- l1
- 200 mm
- l2
- 12 mm
- l3
- 50 mm
- l4
- 140 mm
- l5
- 120 mm
- Toleranz
- H7
- Schneidstoff
- CU111
- Kühlmittelaustritt
- externe Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 6
- Materialgruppe
- TF
- Spezifikation
- FXR705Ø24.000H7LB1G-CU111
Downloads
- Technische Zeichnung in tif
- 31461002_608026995-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 31461002_608026995-000-00-ED1.DXF
- 3D Hüllkontur in stp
- 31461002_608026996-000-00-E43.STP
- Brochure
- 31461002_MAPAL_FixReam-700__EN.pdf
