OptiMill®-3D-BN
Diameter d1 (mm)
3.0
Your unit price
*Login requiredProduct description

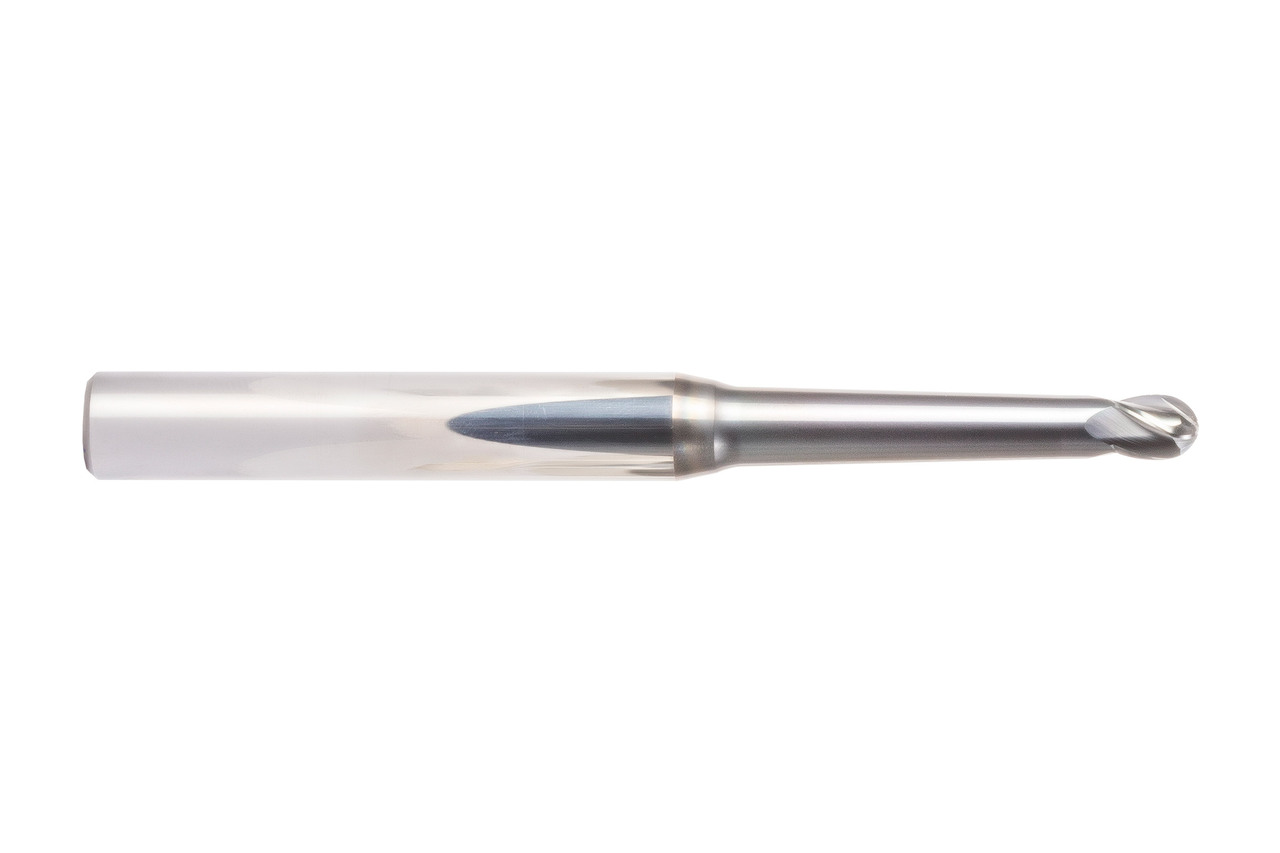

The OptiMill-3D-BN ball nose mill cutter has been specifically developed for machining materials up to 55 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.
Material suitability
P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3
Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 3 mm
- Shaft diameter (d2)
- 6 mm
- Cylindrical part diameter (d3)
- 2.94 mm
- Total length (l1)
- 75 mm
- Length of cutting edge (l2)
- 3.5 mm
- Neck length (l3)
- 25 mm
- Cylindrical length (l5)
- 6 mm
- Corner radius (R)
- 1.5 mm
- Taper angle (φ)
- 0.5 °
- Number of cutting edges (z)
- 4
- Cooling
- external cooling
- Shank type
- HA
- Cutting material
- HP801
- Material group
- RC
- Specification
- MBN105-030-0150-2500A075-HP801
Downloads

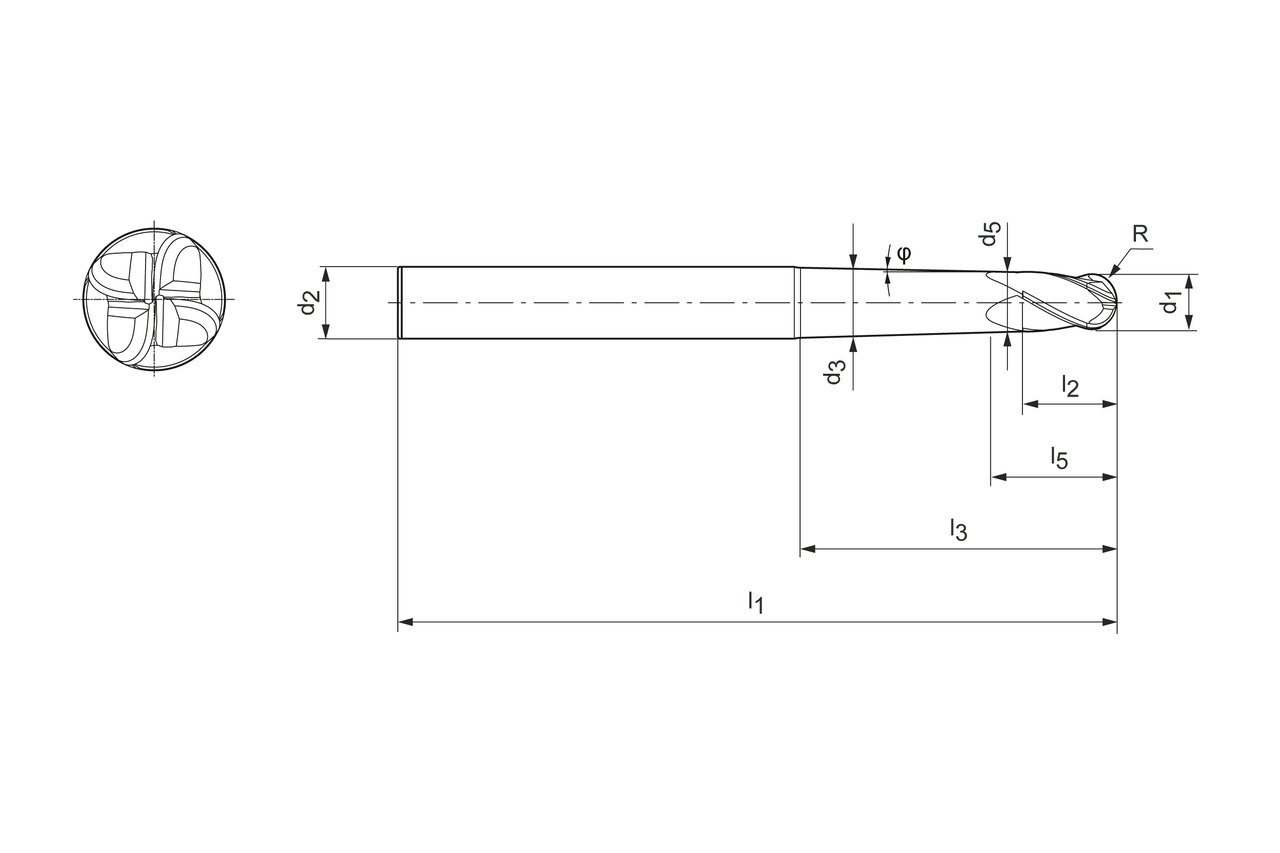

- 3D envelope in stp
- 31153559_607643529-000-00-E43.STP
- Technical drawing in dxf
- 31153559_607410259-000-01-ED1-MM.DXF
- Technical drawing in pdf
- 31153559_607410259-000-01-ED1-MM.PDF
- Technical drawing in tif
- 31153559_607410259-000-01-ED1-MM.TIF
- Technical drawing in tif
- 31153559_607410259-000-01-ED1-MM.tif
