NeoMill®-2-HiFeed90
Durchmesser d1 (mm)
50.0
Ihr Stückpreis
*Login erforderlichBestellnummer
31144052
Menge
Ihrem Warenkorb hinzugefügt
Produktbeschreibung

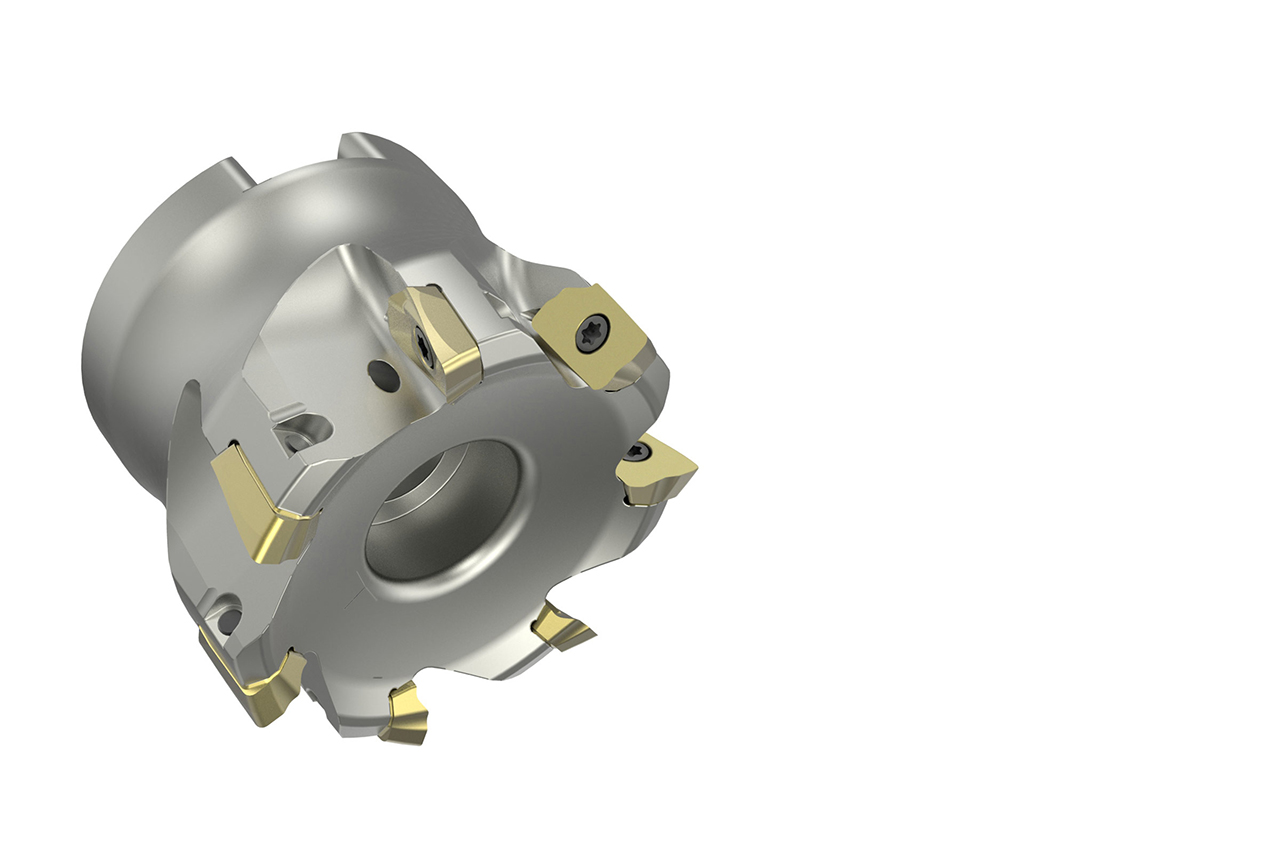

The NeoMill-2-HiFeed90 combines precise 90° shoulder milling with efficient high-feed milling, making it ideal for applications that require high precision and flexibility. Thanks to a special cutting edge geometry, cutting forces are reduced, enabling safe machining even on low-power machines. The high tooth count ensures maximum efficiency, while the tool reduces machining costs through seamless shoulder milling.

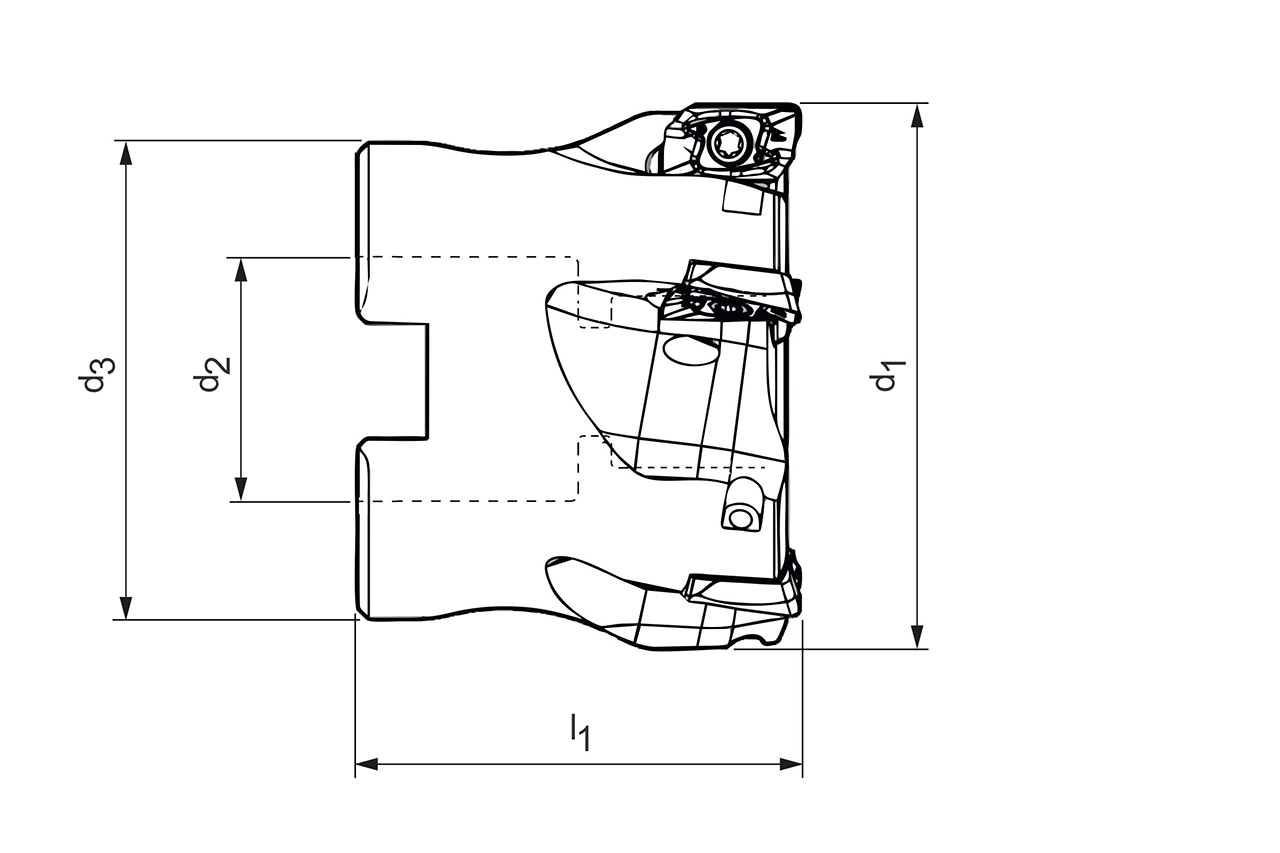

Technische Daten
- Fräsertyp
- Hochvorschubfräser mit WSP
- d1
- 50 mm
- d2
- 22 mm
- d3
- 43 mm
- d4
- 16.5 mm
- l1
- 40 mm
- Schneidplattentyp
- LD__10
- Anzahl Schneiden (z)
- 7
- Kühlmittelzufuhr
- interne Kühlmittelzufuhr
- ap max.
- 9 mm
- Materialgruppe
- 90
- Spezifikation
- IMH901-050-CA22-Z07R-LD__10
