OptiMill®-Uni-HPC-Pocket

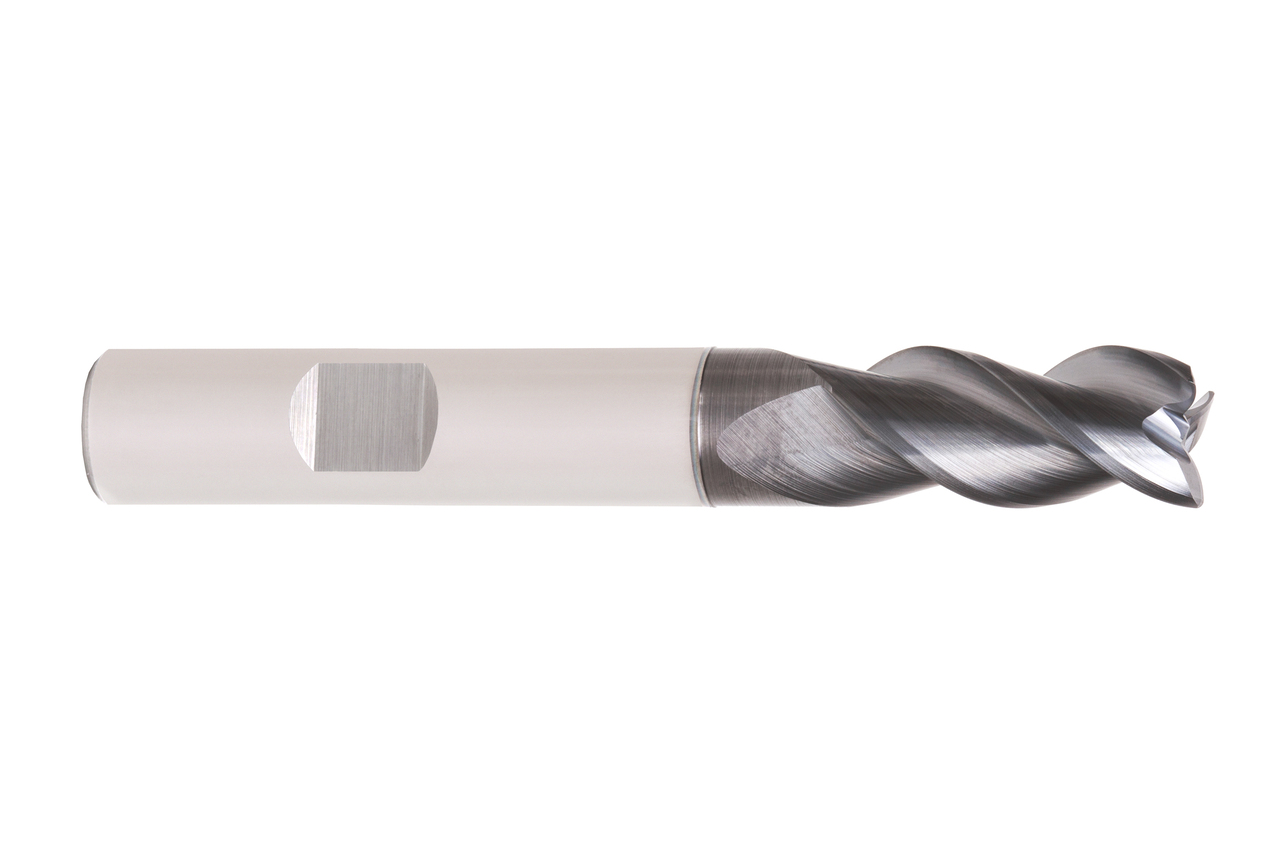

  • Produktbild OptiMill®-Uni-HPC-Pocket

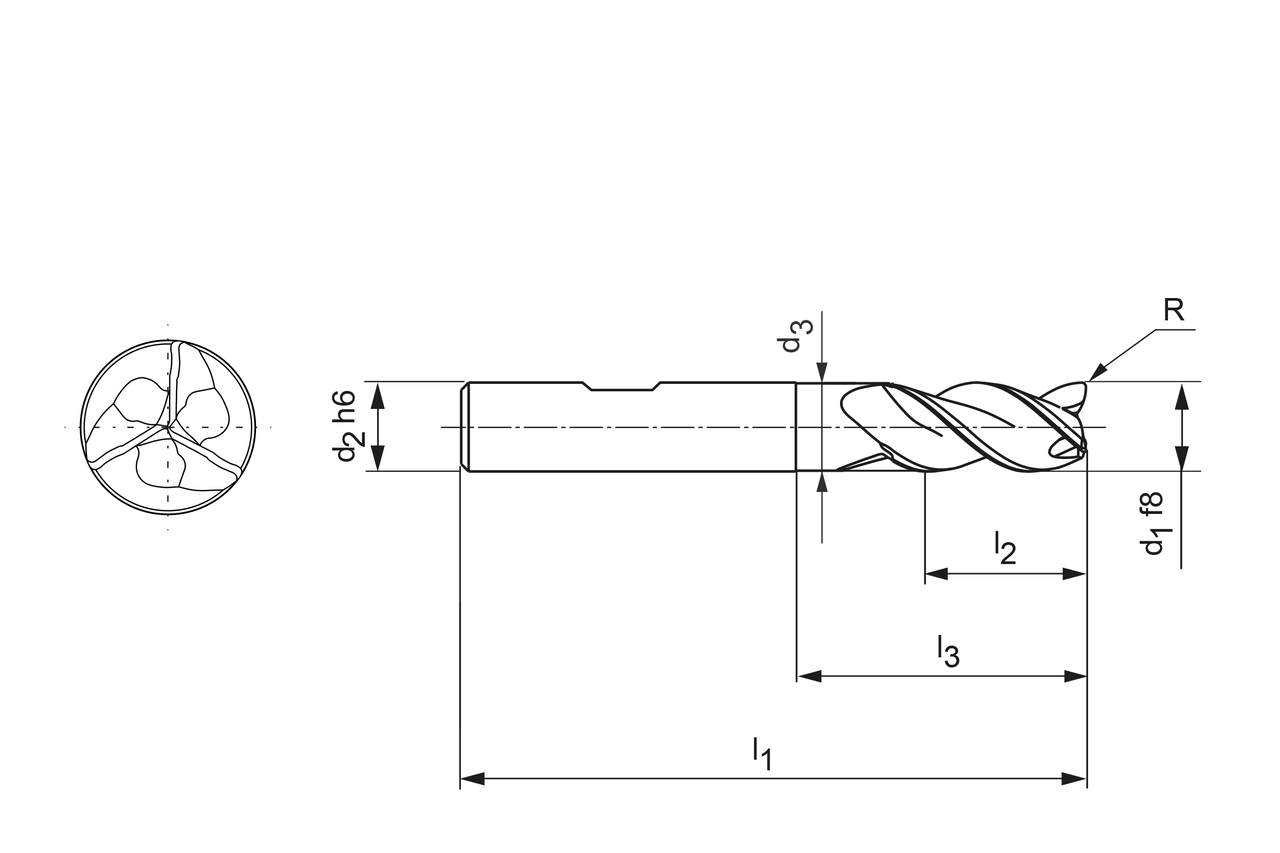

  • Produktzeichnung OptiMill®-Uni-HPC-Pocket

Diameter d1 (mm)

3.8

Your unit price

*Login required

Article

31031147

Quantity

Added to Your Shopping Cart

We recommend:

Product description

Der Eckfräser OptiMill®-Uni-HPC-Pocket mit integrierter Bohrspitze wurde speziell zum Taschenfräsen von Stahl und Gusseisen entwickelt. Die eigens entwickelte Ausspitzung garantiert gemeinsam mit drei großen Spanräumen den optimalen Abtransport der Späne. Der spezielle Kernanstieg sichert optimale Stabilität im Zerspanungsprozess so eignet sich das Werkzeug bestens zum Helixfräsen und Stechen.

Material suitability

P
P1
highly suitable
P2
highly suitable
P3
highly suitable
P4
highly suitable
P5
highly suitable
P6
highly suitable
M
M1
highly suitable
M2
highly suitable
M3
highly suitable
K
K1
highly suitable
K2
highly suitable
K3
highly suitable
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3

Technical specifications

Product class
Performance-Line
Diameter (d1)
3.8   mm
Shaft diameter (d2)
6   mm
Cylindrical part diameter (d3)
3.6   mm
Total length (l1)
57   mm
Length of cutting edge (l2)
10   mm
Neck length (l3)
13   mm
Corner radius (R)
0.19   mm
Taper angle (φ)
15.7   °
Number of cutting edges (z)
3
Cooling
external cooling
Shank type
HB
Cutting material
HP920
Material group
MV
Specification
SCM810-0380Z03R-R0019HB-HP920

Downloads

Technical drawing in dxf
31031147_607804203-000-00-ED1.DXF
Technical drawing in pdf
31031147_607804203-000-00-ED1.PDF
Technical drawing in tif
31031147_607804203-000-00-ED1.TIF
3D envelope in stp
31031147_607804204-000-00-E43.STP
Technische Zeichnung in tif
31031147_607804203-000-00-ED1.tif
Broschüre OptiMill-HPC-Pocket
31031147_OptiMill-HPC-Pocket__DE.pdf
