OptiMill®-Tro-Titan

Durchmesser d1 (mm)

8.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30651033

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

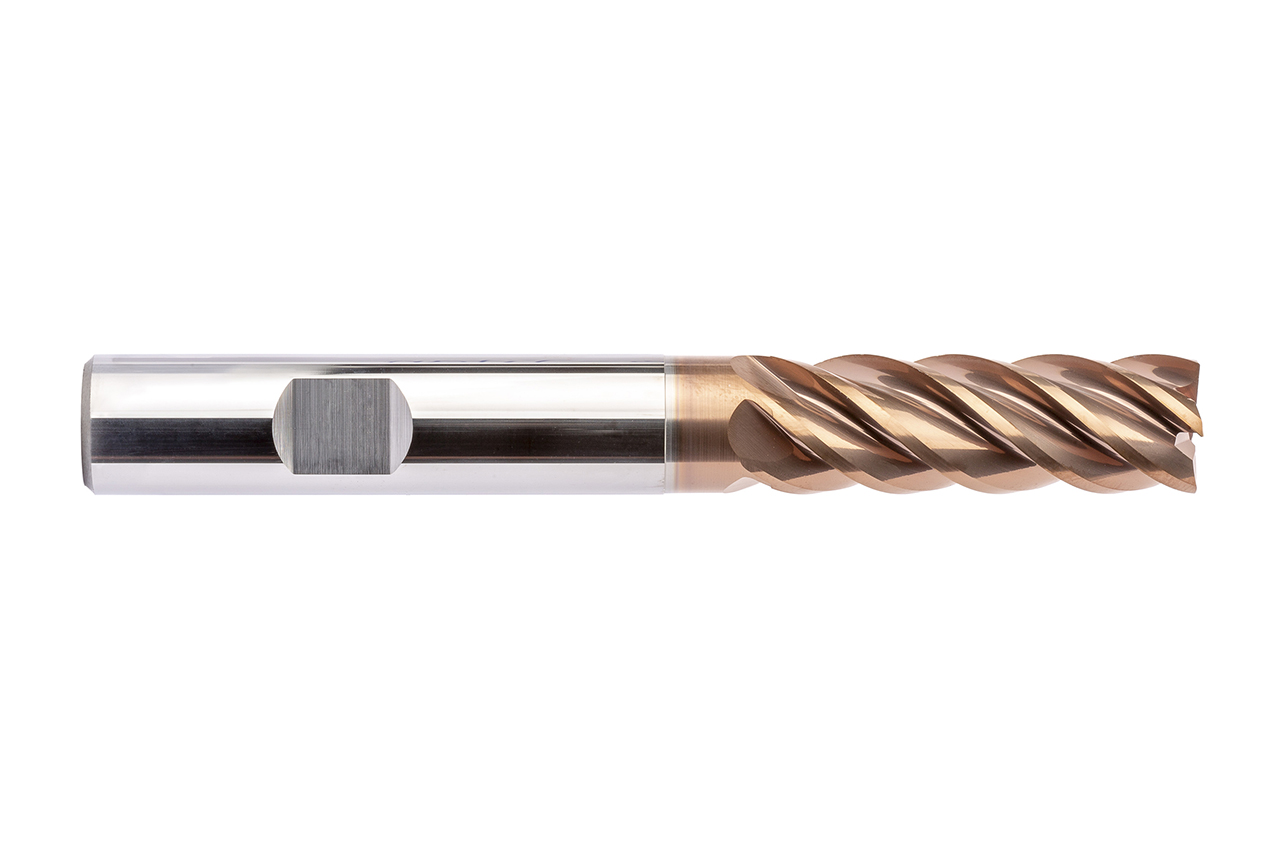

The OptiMill-Tro-Titan five-edged corner milling cutter is characterized by maximum material removal rates while maintaining high surface quality. The uneven pitch and step avoid vibrations and result in smooth cutting behavior. It is specifically designed for trochoidal milling in partial cuts, trimming, and cutting depths up to 3xD.

Materialeignung

P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
bestens geeignet
S2
bestens geeignet
S3
geeignet
S4
geeignet
S5
geeignet
H
H1
H2
H3

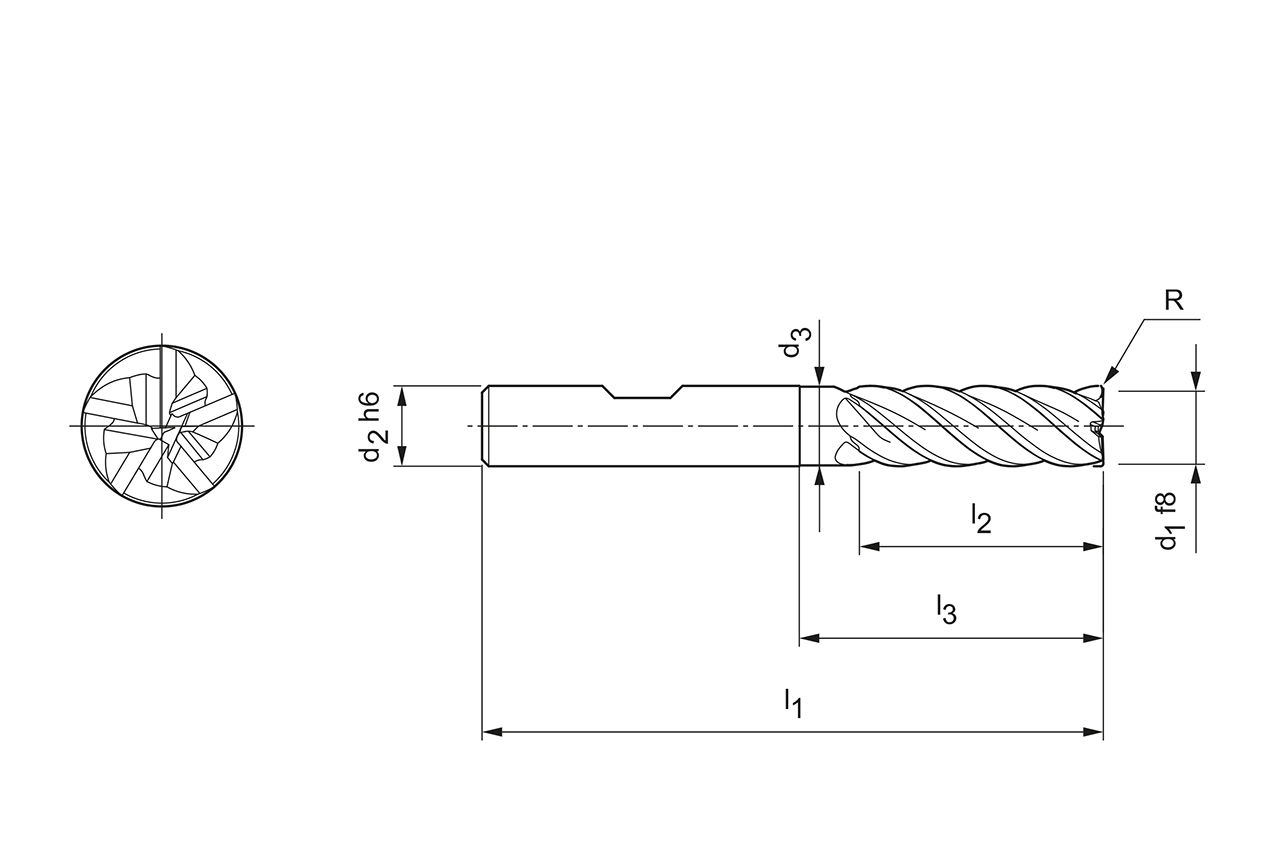

Technische Daten

Produktklasse
Expert-Line
Schneidendurchmesser (d1)
8   mm
Schaftdurchmesser (d2)
8   mm
Durchmesser zylindrischer Anteil (d3)
7.8   mm
Gesamtlänge (l1)
68   mm
Schneidenlänge (l2)
24   mm
Halslänge (l3)
30   mm
Eckenradius (R)
0.2   mm
Anzahl Schneiden (z)
5
Kühlmittelzufuhr
äußere Kühlmittelzufuhr
Schaft Typ
HB
Schneidstoff
HP826
Materialgruppe
MV
Spezifikation
SCM630-0800Z05R-R0020HB-HP826

Downloads

Cutting data recommendations
30651033_OptiMill-Tro-Titan_EN.pdf
