OptiMill®-3D-CR-Graphite
Diameter d1 (mm)
0.5
Your unit price
*Login requiredUnsere Produktempfehlung:
Product description

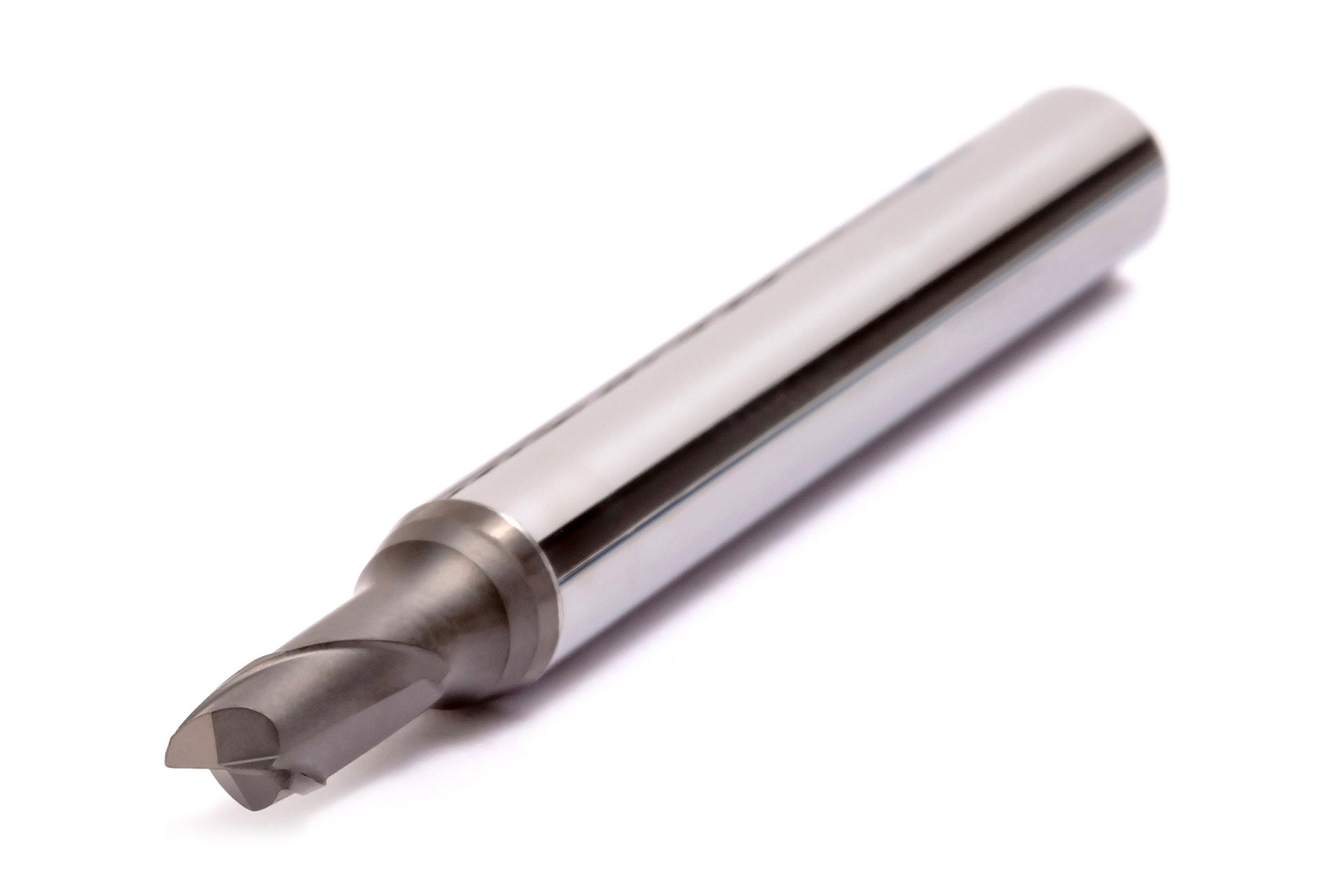

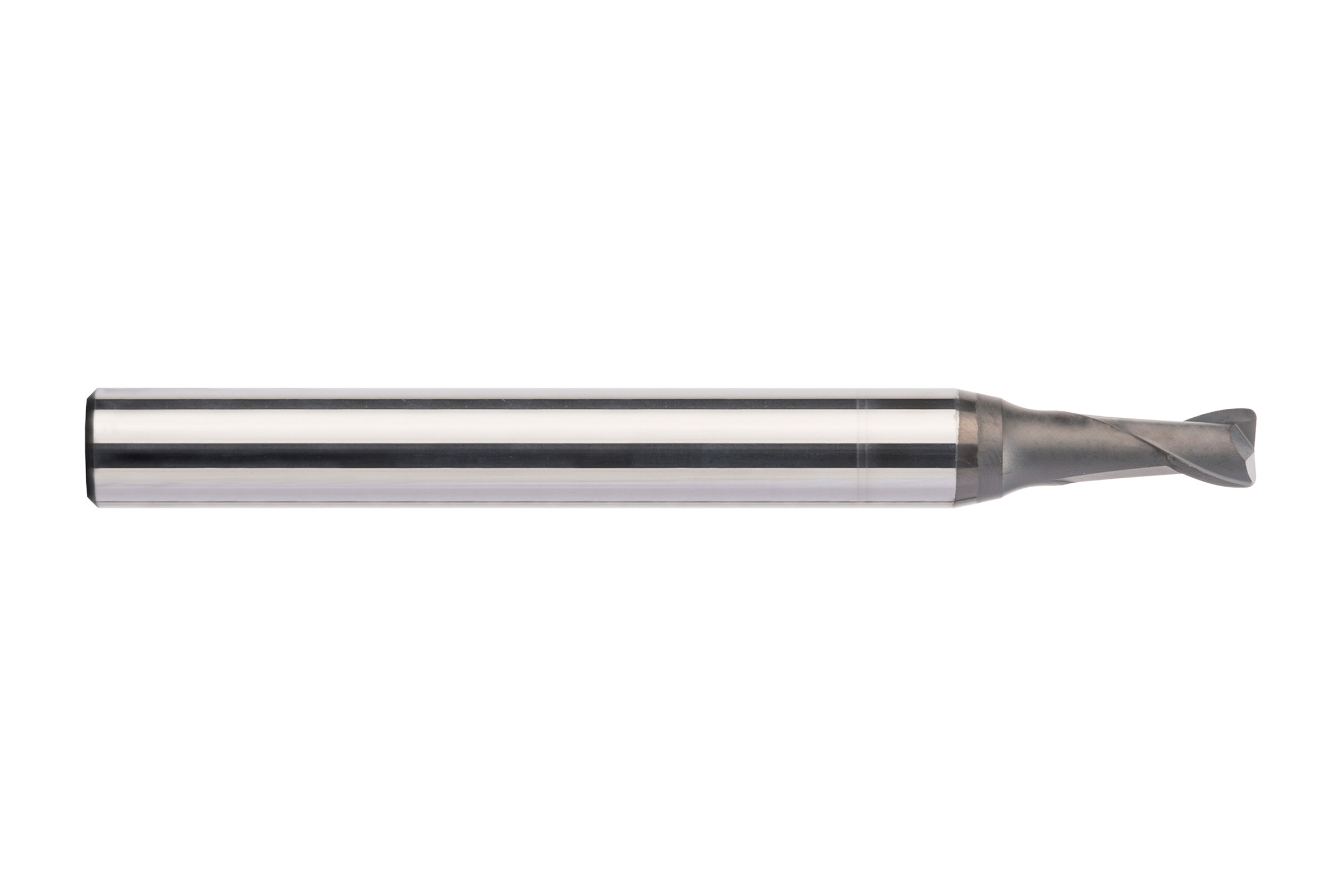

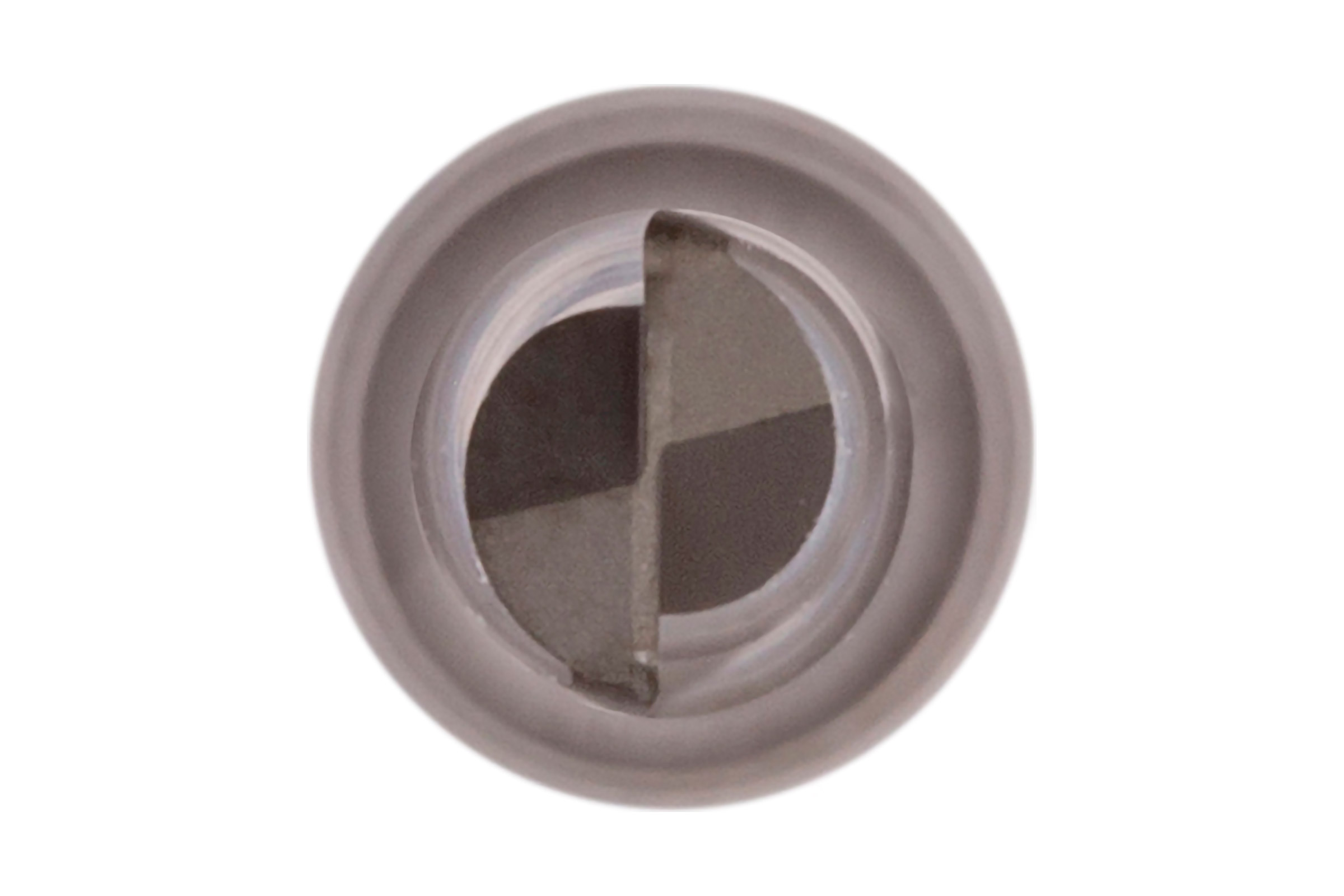

The OptiMill®-3D-CR-Graphite corner radius milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating which prevents chipping and thus damage to the sensitive profiles even after longer milling.
Technical specifications
- Produktklasse
- Expert-Line
- Schneidendurchmesser (d1)
- 0.5 mm
- Schaftdurchmesser (d2)
- 4 mm
- Gesamtlänge (l1)
- 50 mm
- Schneidenlänge (l2)
- 0.8 mm
- Halslänge (l3)
- 7 mm
- Eckenradius (R)
- 0.05 mm
- Anzahl Schneiden (z)
- 2
- Kühlmittelzufuhr
- äußere Kühlmittelzufuhr
- Schaft Typ
- HA
- Schneidstoff
- HC115
- Materialgruppe
- RC
- Spezifikation
- MCR111-005-0005-0700X050-HC115
Downloads

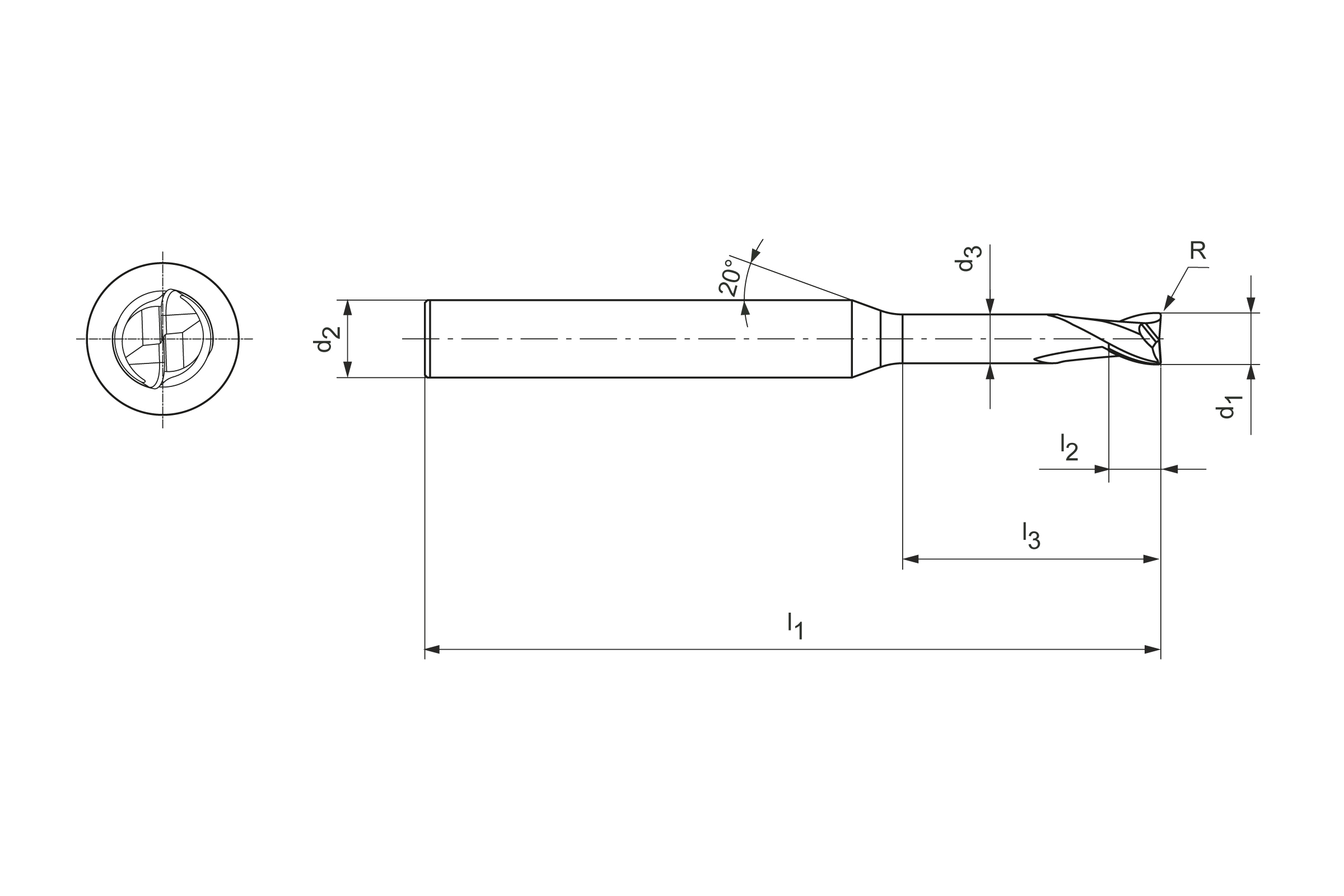

- Technische Zeichnung in dxf
