OptiMill®-3D-BN

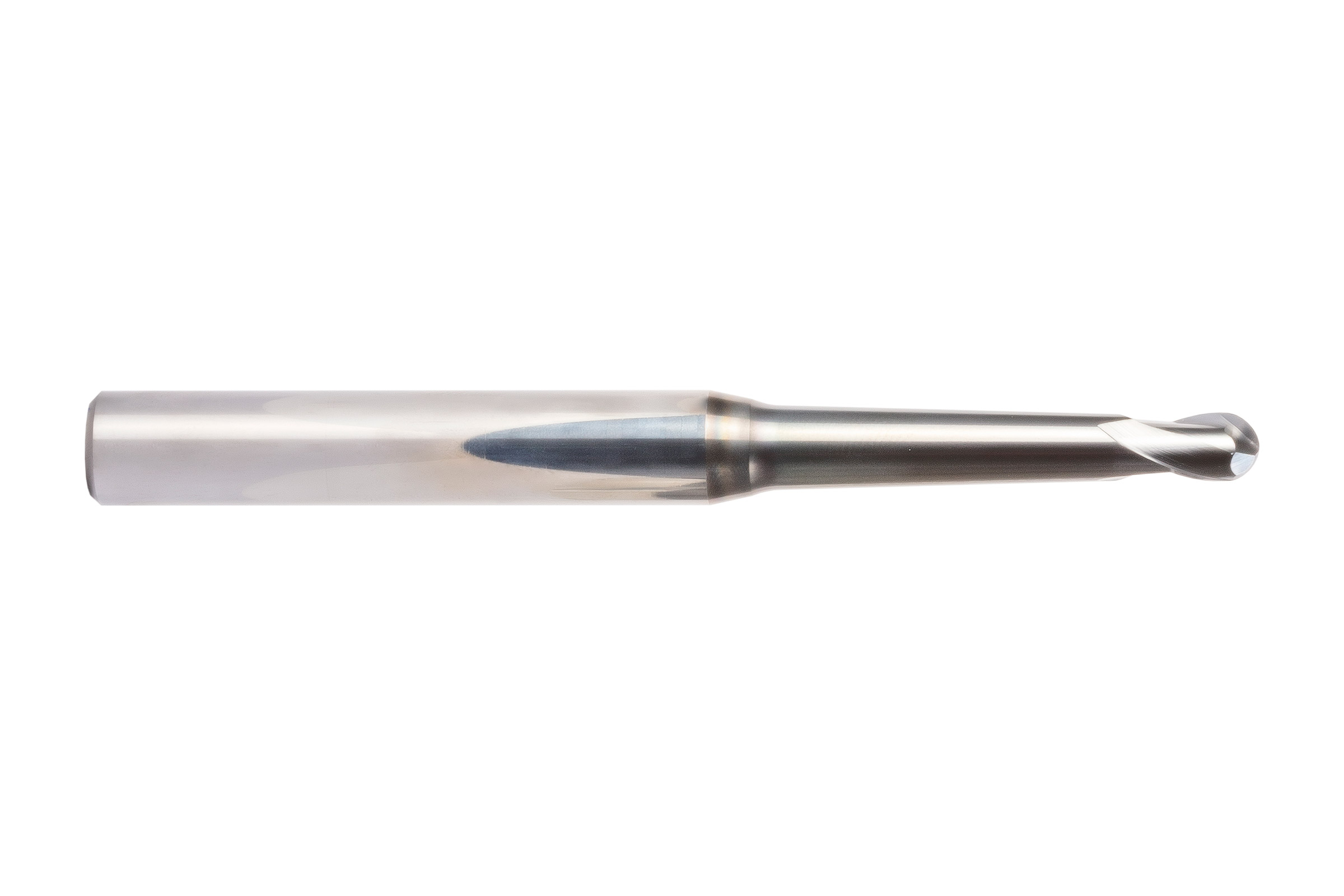

  • Produktbild OptiMill®-3D-BN

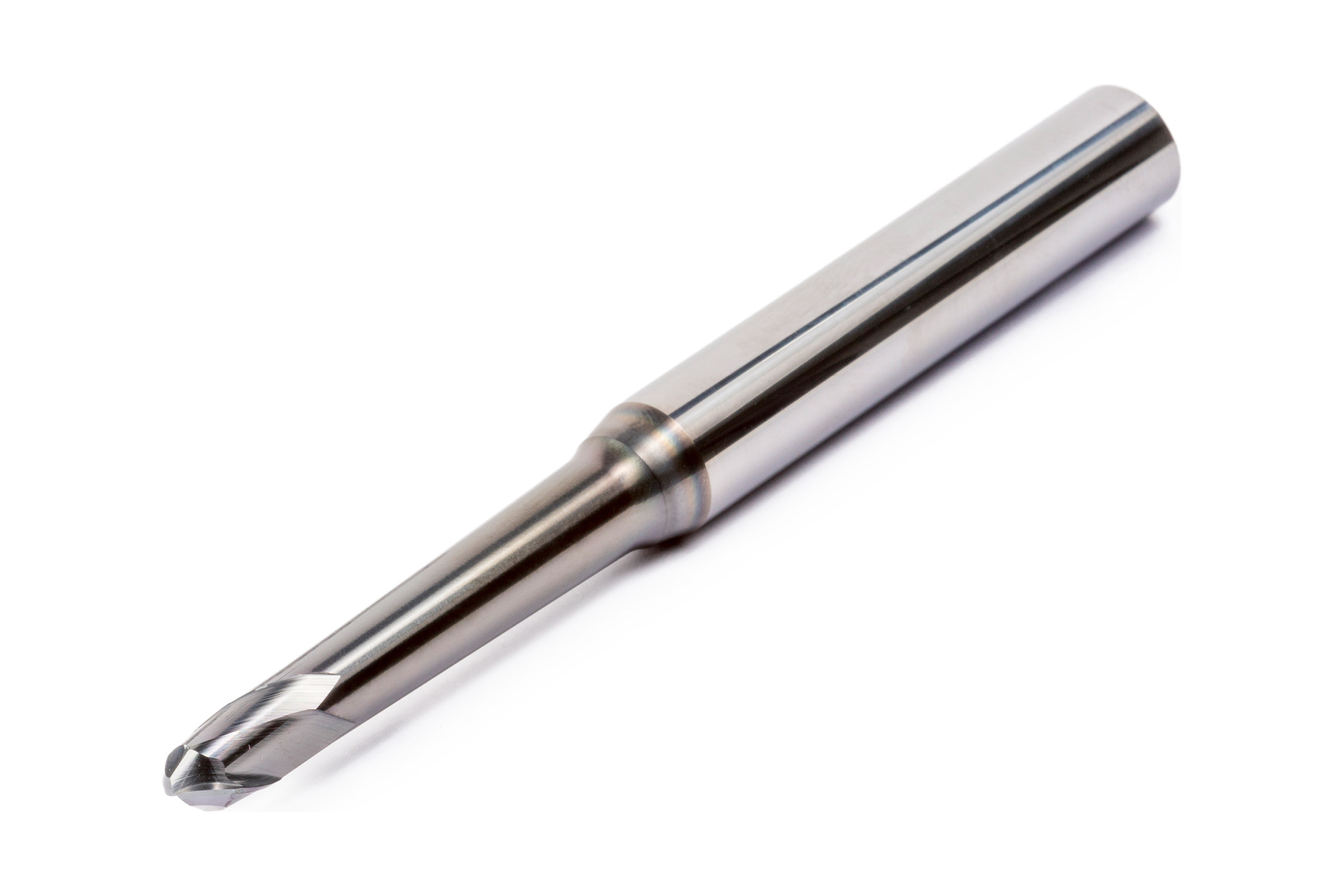

  • Produktbild OptiMill®-3D-BN

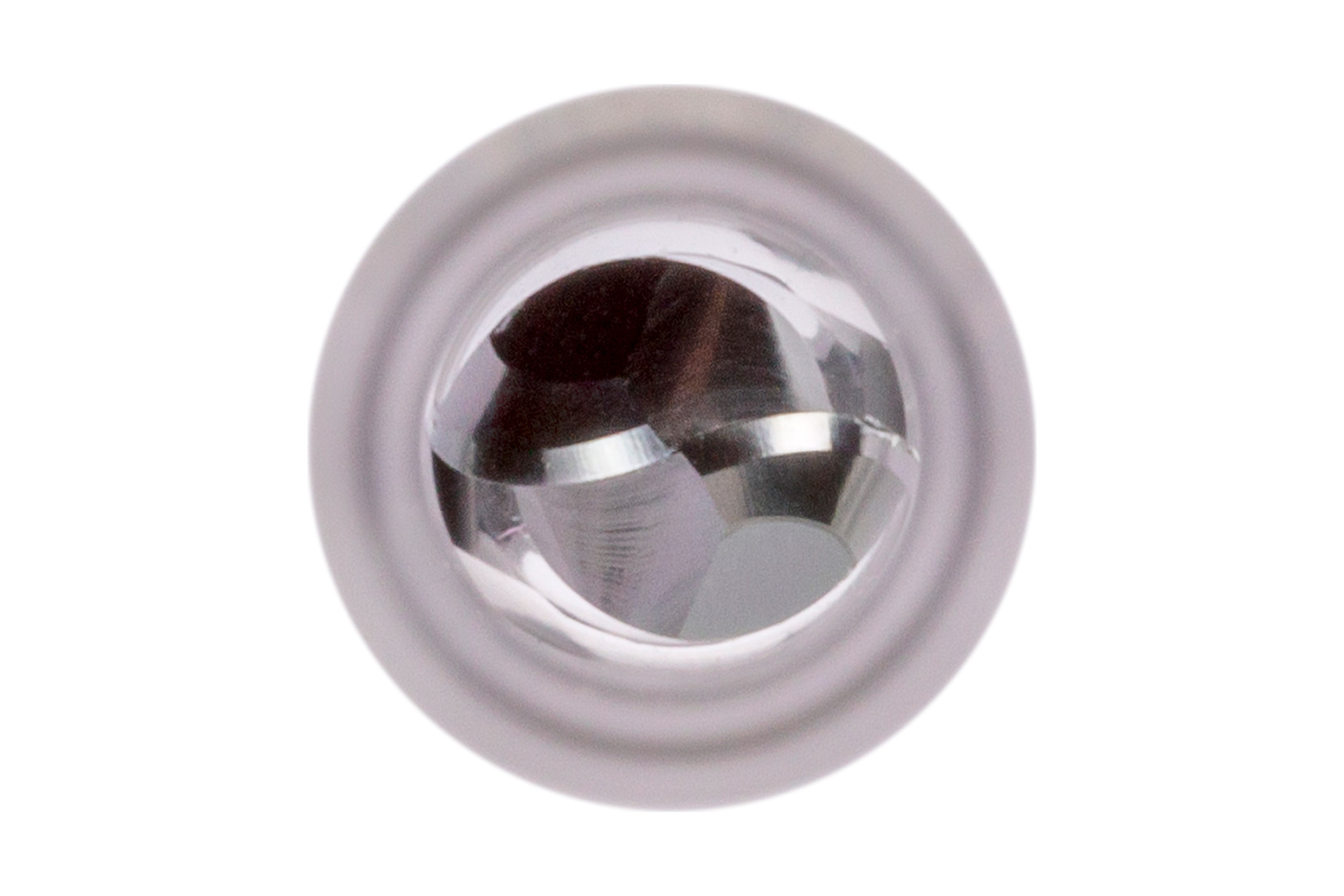

  • Product image OptiMill®-3D-BN
  • Technical drawing OptiMill®-3D-BN

Diameter d1 (mm)

2.0

Your unit price

*Login required

Article

31153408

Quantity

Added to Your Shopping Cart

Product description

Der Kugelfräser OptiMill-3D-BN wurde speziell für die Bearbeitung von Werkstoffen bis 55 HRC entwickelt. Er zeichnet sich durch eine hohe Radiusgenauigkeit aus und ist dadurch ideal zur hochpräzisen Bearbeitung von 3D-Konturen geeignet. Neben einer extrem hitzebeständigen Beschichtung und einem speziellen Hartmetallsubstrat zeichnen sich diese Werkzeuge durch die speziell an den Formenbau angepassten Abmessungen und Geometrien aus.

Material suitability

P
P1
highly suitable
P2
highly suitable
P3
highly suitable
P4
highly suitable
P5
highly suitable
P6
highly suitable
M
M1
suitable in some situations
M2
suitable in some situations
M3
suitable in some situations
K
K1
highly suitable
K2
highly suitable
K3
highly suitable
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
highly suitable
H2
suitable in some situations
H3

Technical specifications

Product class
Performance-Line
Diameter (d1)
2   mm
Shaft diameter (d2)
6   mm
Cylindrical part diameter (d3)
1.94   mm
Total length (l1)
75   mm
Length of cutting edge (l2)
2.3   mm
Neck length (l3)
30   mm
Cylindrical length (l5)
4   mm
Corner radius (R)
1   mm
Taper angle (φ)
1.5   °
Number of cutting edges (z)
2
Cooling
external cooling
Shank type
HA
Cutting material
HP801
Material group
RC
Specification
MBN102-020-0100-3000C075-HP801
